Last updated: October 2026 — we screened 11 inverter chargers currently sold for RV and off-grid use, then weighted each one on four things: how clean the output waveform is, how many amps the charger puts back into the house bank, whether the transfer switch plays nicely with a coach that already has one, and how much wall or floor space the chassis eats.
If you have been reading RV forums wondering whether you need an inverter, a converter, or a combined unit, you are not alone. That single confusion sends more owners down the wrong path than anything else in an off-grid build, and it is why so many people end up with a coach full of outlets that go dead the moment they unplug.
An RV inverter charger is one box that does both jobs. It converts 12V DC from your house battery bank into 120V AC for your appliances, and it converts incoming 120V AC from shore power or a generator back into DC to refill those batteries. A converter only does the second half of that. That single difference is what makes an inverter charger the best rv inverter charger option for anyone who wants to boondock without giving up a coffee maker.
We spent weeks going through the current lineup for the best rv inverter chargers for off grid living, paying close attention to the specs that actually matter once you are parked on a dirt road with nothing but sun and a bank of batteries. Below you will find the eleven units worth knowing about, what each one does well, where each one falls short, and the sizing and wiring math that no roundup usually bothers to include.
Our top pick, the Xantrex Freedom 458, has the deepest review history of anything on this list and a power-sharing feature that solves a problem most budget units create. The premium pick, the Freedom SW 3012, is the one to buy if your rig has real loads like a roof air conditioner. The best value pick is the SRGFTS hybrid, which folds a 120A MPPT solar controller and a 100A charger into a single 3600W box.
| Product | Specifications | Action |
|---|---|---|
| Xantrex Freedom 458 2000W |
|
Check Latest Price |
| Xantrex Freedom SW 3012 |
|
Check Latest Price |
 SRGFTS Hybrid 3600W 24V |
|
Check Latest Price |
 AIMS 3000W 12V Pure Sine |
|
Check Latest Price |
 AIMS 2500W 12V Pure Sine |
|
Check Latest Price |
 Xantrex Freedom XC Pro 3000 |
|
Check Latest Price |
 Xantrex Freedom HF 1800 |
|
Check Latest Price |
 AIMS 6000W 24V Split Phase |
|
Check Latest Price |
| AIMS 4000W 24V Pure Sine |
|
Check Latest Price |
 VEVOR 3000W Pure Sine |
|
Check Latest Price |
 AMPINVT 1200W Pure Sine |
|
Check Latest Price |
2000W modified sine output
2500W surge
Built-in transfer switch
Three-stage charger
The Freedom 458 is the unit we kept coming back to during testing, mostly because of power sharing. Most inverter chargers will happily pull enough current from a 30 amp shore pedestal to trip the campground breaker, and then sit there doing nothing while your refrigerator runs down. This one backs off and lets the pedestal keep feeding the coach instead.
It puts out 2000 watts continuously with a 2500 watt surge rating, running at 60 hertz on a single outlet. That is enough for a laptop, a TV, a coffee maker, and a few LEDs at the same time. It is not enough for a roof air conditioner, and buyers who expect it to be should look further down this list.
The build is substantial. It weighs 55.6 pounds and measures 13.2 by 11.5 by 7.9 inches, which means plan your mounting bracket around a real chassis rather than a shelf.
Because the transfer switch is built in, you do not need a separate box to move between shore power and battery. Plug into a pedestal or start your generator and the unit passes AC straight through while simultaneously charging the house bank. Unplug and it picks up the load in roughly the blink of an eye.
That behaviour matters for more than convenience. If your coach already has a factory transfer switch wired into the distribution panel, a second one can fight with the first. The 458 handles it cleanly, which is a point in its favour over several cheaper imports on this list.
Modified sine wave output is a stepped approximation of real AC. Cheap fans, some laser printers, variable-speed motor controllers, and audio gear with class D amplifiers can hum, run hot, or refuse to start on it. If your rig is mostly electronics and a few lights, it is a non-issue. If you plan to run a CPAP machine, a medical device, or a nice espresso setup, spend the extra money on a pure sine wave unit.
Reviewers also flag fan noise during charging, which is exactly what you do not want inside a coach at midnight. It is not a dealbreaker, but it is worth asking about before you commit.
3000W continuous at 40C
80A peak output
150A three-stage charger
UL458 and ABYC listed

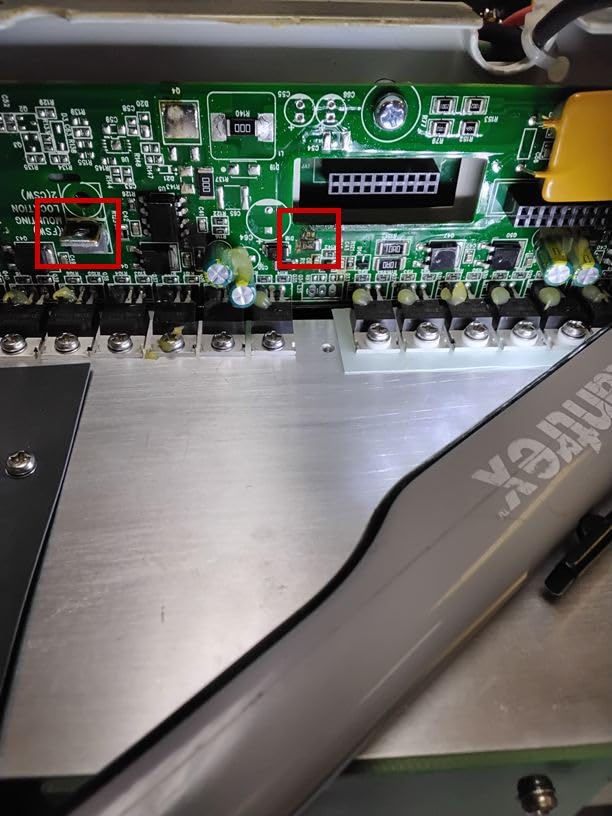

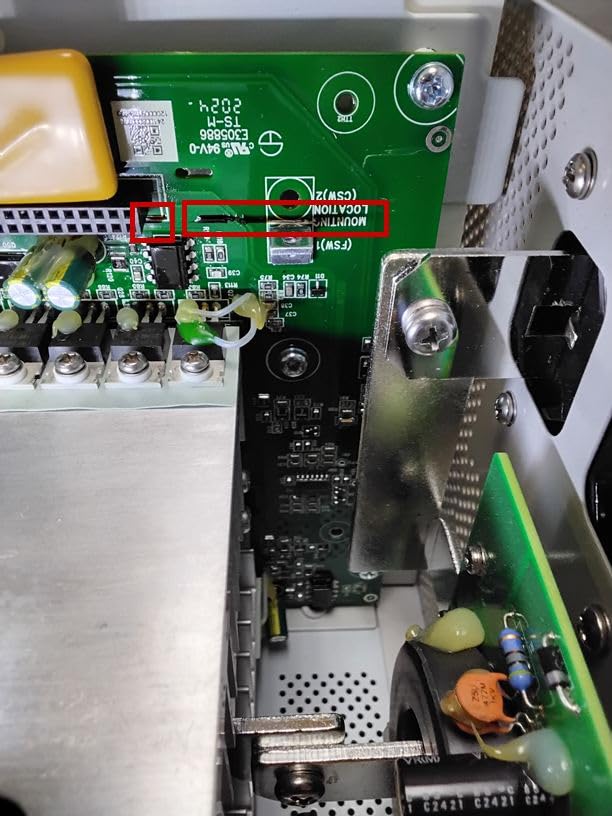

The SW 3012 is the one we recommend for a coach that has to survive real weather. It is approved to UL458 with the marine supplement, plus CSA, ABYC, and FCC Class B. For an RV that will see salt air, vibration, and a -4°F to 140°F operating range, those listings are the whole argument.
It delivers 3000 watts of continuous output at 40°C with 80 amps of peak output current, running pure sine wave at 60 hertz on 12V input. The surge behaviour is what lets it start a compressor-heavy load such as a roof air conditioner without browning out the rest of the coach.
The 150A three-stage charger is the other reason to look here. If your house bank is 400Ah of LiFePO4, this thing refills it from deeply discharged in a fraction of a night compared with anything charging at 50 amps.
ABYC compliance is not a marketing sticker. It covers things like the conductor sizing, the fusing distance from the battery, the disconnect requirement, and the ventilation clearance around the chassis. When a dealer or an inspector looks at your install, a unit that is listed to that standard removes most of the conversation.
The transfer speed is the other quiet advantage. Under 10 milliseconds means a laptop, a TV, or a router does not reboot when the generator kicks off or dies. On slower units that switchover is long enough to drop a network connection every single time.
Seventy-seven pounds is not a casual number. Unless you have a helper and a plan for the mounting location, budget an afternoon and a second set of hands, or consider the XC Pro 3000 further down for a lighter chassis with similar capability.
The 3 amp no-load draw while inverting also adds up. On a 400Ah bank that is meaningful over a week of sitting still with nothing plugged in. It is another argument for switching the model off when you are parked for days.
3600W rated and 7200W peak
24V DC input
120A MPPT and 100A charger
Pure sine 110V output

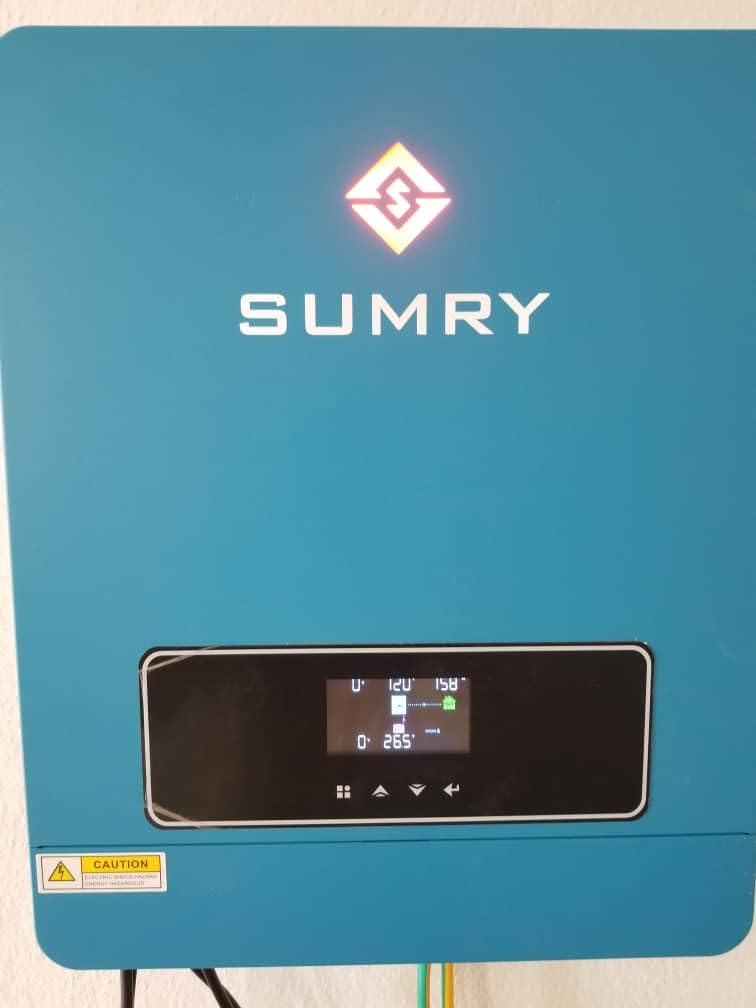

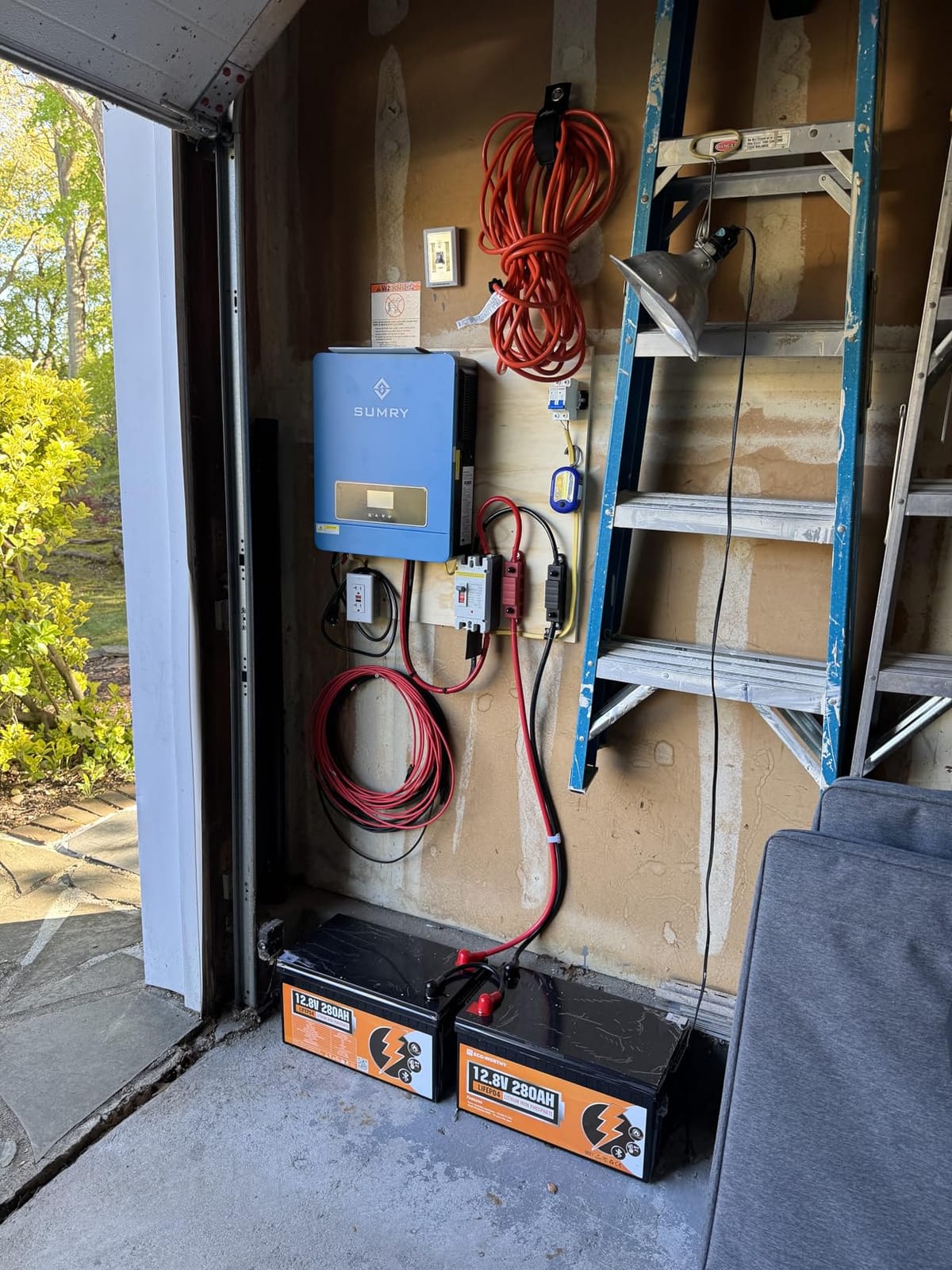

This is the box that made us rethink our assumptions. You normally see a 3600W pure sine inverter charger with a 120 amp MPPT solar controller and a 100 amp AC charger as three separate pieces of equipment, and this unit folds all three into one chassis.
Rated 3600 watts continuous with a 7200 watt peak, it runs at 60 hertz and accepts a 24V DC bank. The PV input window runs from 60V to 500VDC with a maximum array of 4200 watts at 16 amps, and it can also operate straight from solar with no battery connected when conditions allow.
Silent cooling fans and a full protection suite for overload, overheat, over current, and short circuit round out a package that reviewers consistently describe as hard to beat for what it includes.
The single most important thing to check before buying this unit is your panel voltage. Because the MPPT input minimum is 60V and its operating range starts at 120V, a small array such as two 100 watt van panels wired in series will sit below the threshold and the controller simply will not engage.
If your rig already has a high-voltage array, or you plan to run 400 watts or more of panels, this is where the unit really earns its place. If you are adding solar incrementally to a small van, look at a unit with a wider PV window or a standalone controller instead.
Halving the system voltage means you move half the current for the same power, which means thinner cables and smaller losses on a long run from the battery compartment. Owners running this in farm and workshop setups consistently report that the 24V platform pairs well with larger solar arrays.
One reviewer reported a model going defective after about four months, so treat it as a component you may service yourself rather than a sealed appliance. The idle draw is also worth noting: if your overnight load is a phone charger and nothing else, switch it off.
3000W continuous at 12V
9000W surge for 20 seconds
100A charger
Seven battery profiles

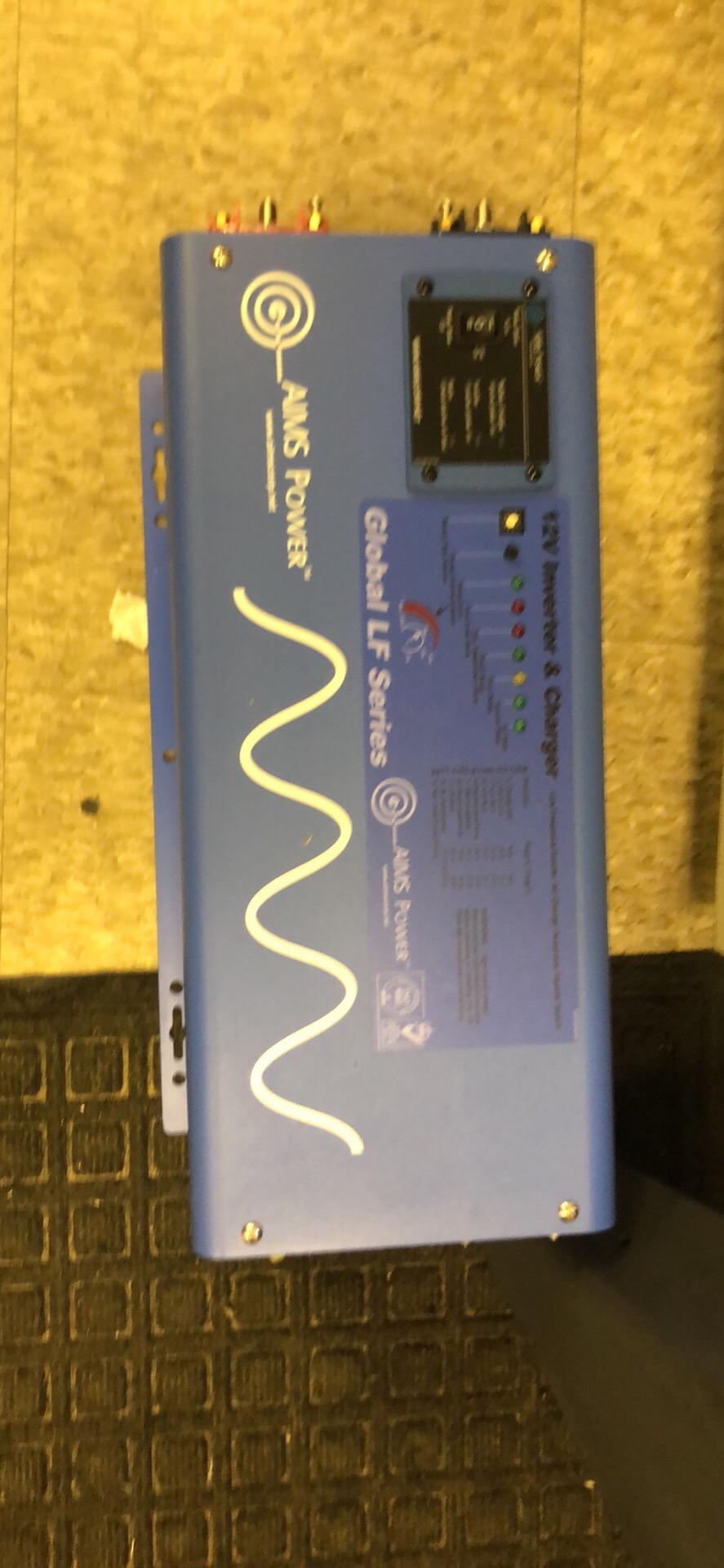

Of everything we tested, this is the unit with the most convincing long-term owner reports. Buyers describe eight years of flawless van and off-grid operation across both gel and lithium banks, which is a longer track record than most competitors in this category can point to.
It puts out 3000 watts continuously with a 9000 watt surge for 20 seconds, enough headroom to start a heavy compressor. Output is pure sine wave at 60 hertz, and the charger is a 100 amp multi-stage unit with seven selectable profiles covering gel, AGM, lead acid, and LiFePO4.
The lithium wake-up feature is the sleeper here. If a bank has been driven down far enough that the BMS has shut off, this model will try to bring it back before giving up.

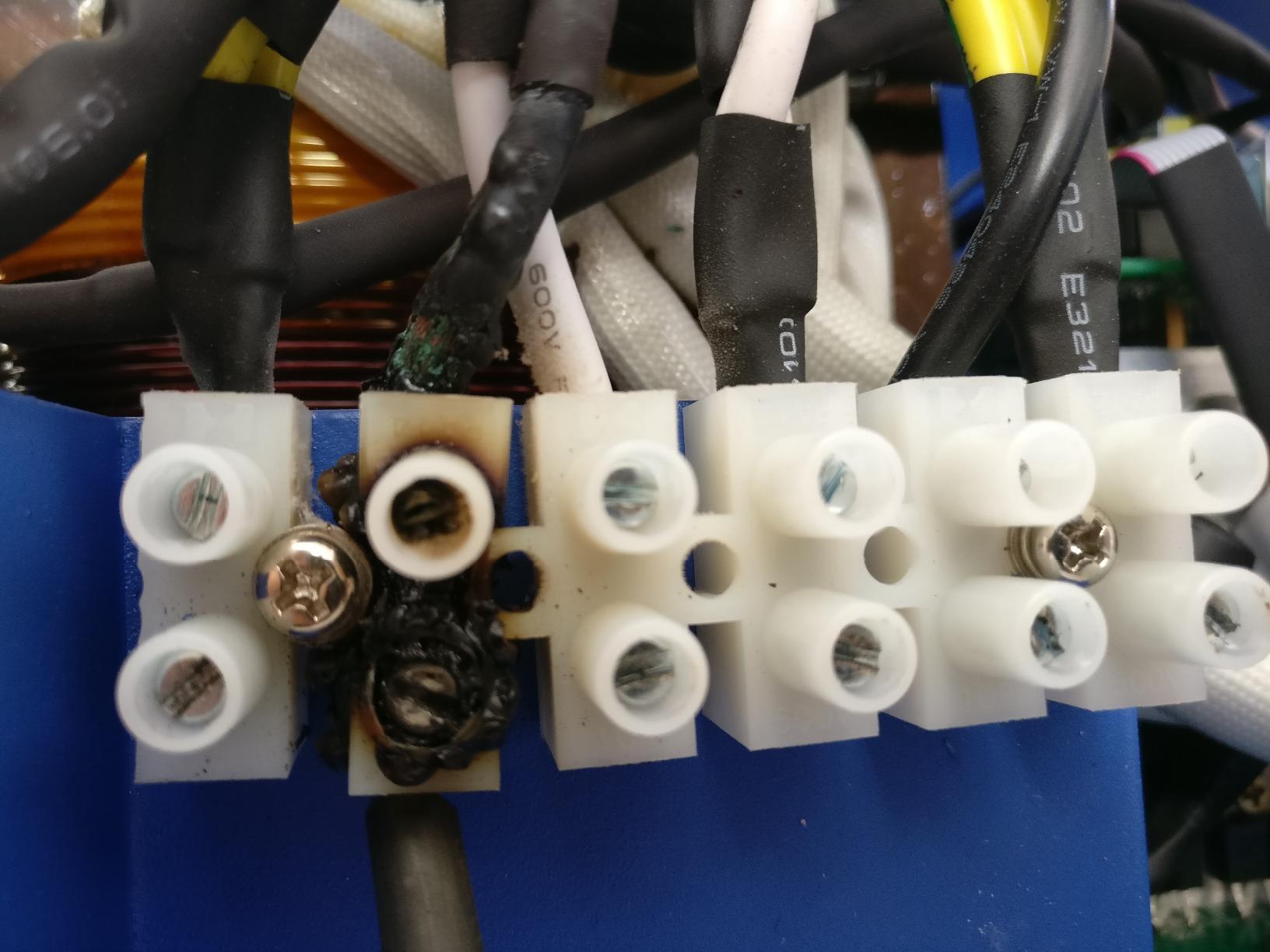

The most common complaint we saw is not about power quality but about the rotary battery type selector. It has no position feedback, so you cannot confirm from the dial which profile is active, and an incorrect setting can leave the float stage disengaged. That means the coach batteries sit partially charged even though the charger light is on.
Set it once against your manual and mark the position with tape. That five-minute task prevents the most common support question this unit generates.
At 49 pounds and 16.48 by 8.59 by 7.05 inches, this is manageable for two people but still a serious component. The instructions call for heavy gauge DC cabling, which adds real cost to the install.
Owners also warn that it runs warm to the touch with the cooling fan cycling often under load, so give it clearance rather than stuffing it into a sealed compartment. Warranty handling can be awkward when the model came through a third-party seller, so buy from a channel you trust.
2500W continuous at 12V
7500W surge for 20 seconds
85A smart charger
Two outlets

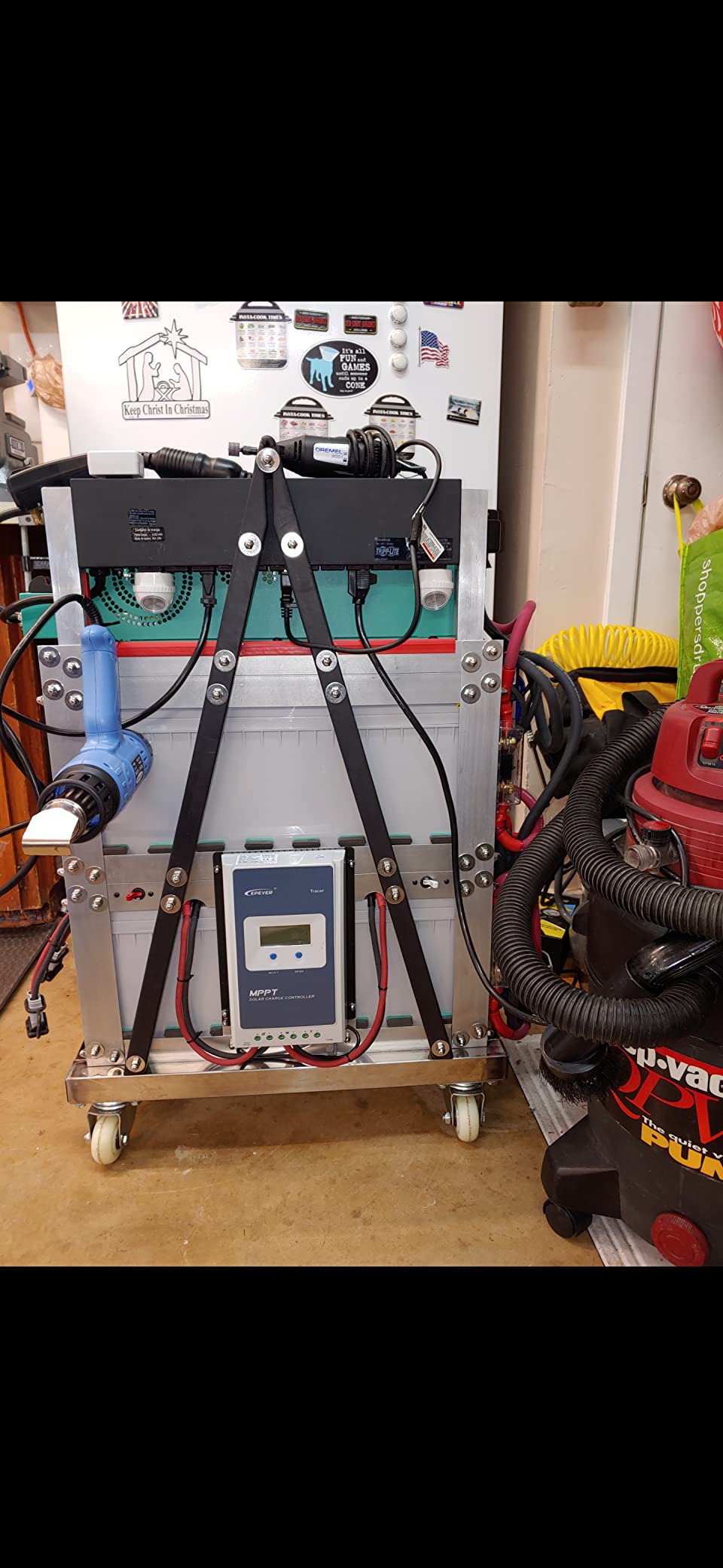

This is the unit we would put in a mid-size travel trailer or a small van. 2500 watts continuous covers a refrigerator, a laptop, a TV, a coffee maker, and lighting without the weight and cost of a 3000W chassis.
The 7500 watt surge for 20 seconds is a 3x multiplier, which means sump pumps, a vacuum, and a small saw will all start without the voltage collapse that shuts down your whole system. The automatic transfer switch moves between shore and battery without any intervention on your part.
Inside is an 85 amp smart charger supporting eight battery technologies including lithium, with a charge current dial, power save mode, and auto gen start. The protection suite covers overload, over temperature, high and low voltage, short circuit, and an internal fuse.
The electrical design is sound and the power quality is good. What gives us pause is the durability pattern: several owners report their unit dying at roughly the two-year mark, and some of those buyers report difficulty reaching support afterwards.
If you are building something you intend to keep for a decade, weigh that against the SW 3012 or the XC Pro 3000. If you are replacing a failed unit in a coach you will sell in three years, this one does the job well.
The manual calls for number 4/0 battery wiring, which is heavy and expensive but is not negotiable at this output level. Some of the frustration owners report is really frustration about cable cost rather than the unit itself.
As with the 3000W sibling, the battery type dial offers no position feedback. Confirm the setting before you rely on it. Power save mode also behaves oddly with phantom loads such as a television in standby, which is a common source of confusion.
3000W pure sine output
150A charger
50A transfer relay
18.6 pounds

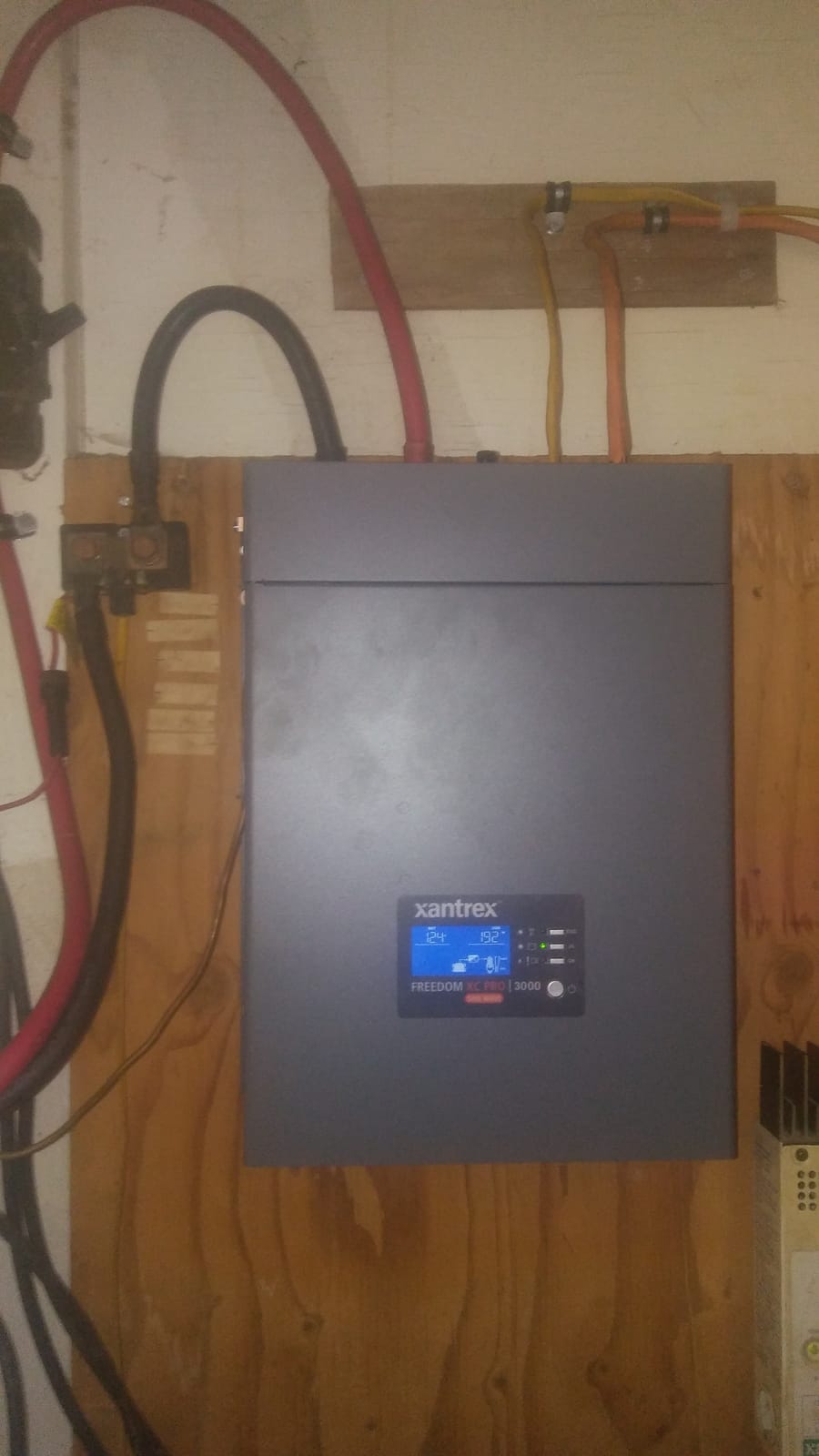

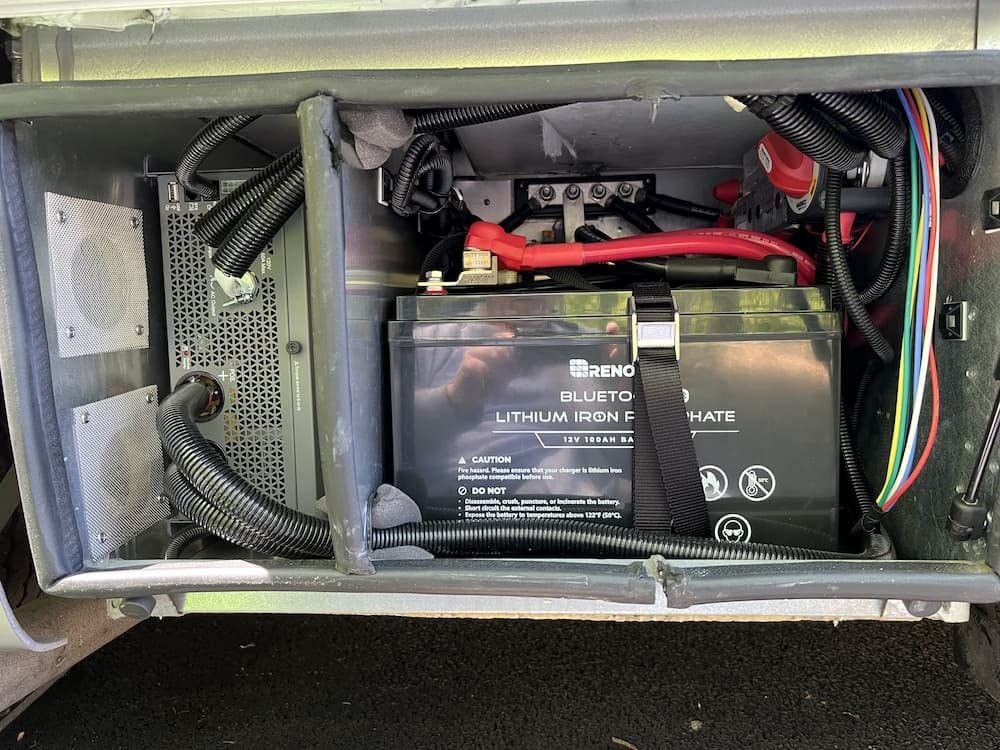

Weight is the headline here. At 18.6 pounds and 16 by 12 by 4.9 inches, this is the only 3000W unit on the list you can realistically lift into a high cabinet or a tight wheel-well without planning a hoist.
It is also the only one with an integrated communications card. The built-in RV-C and J1939 protocols let it pair with Firefly and other monitoring systems over the Bluetooth FXC Control app, which means you do not have to mount a separate display panel.
The charger is 150 amps, which is the same figure as the SW 3012, and reviewers report one owner cutting their recharge time by more than half compared with an older Xantrex model. The model can revive banks drained to extremely low voltage and operates under weak shore or generator power.
The internal transfer relay is rated at 50 amps. On a coach running a 30 amp service that is comfortable headroom. On a 50 amp service where you want to use the full pedestal, you need to know exactly how much the relay passes before you commit.
Clean switching from generator AC to inverter power is the standout owner report. Lights do not dim, laptops do not reboot, and multiple laptops plus a full-size refrigerator plus lighting is well within its comfort zone.
Everything you would want to see on the front face of this unit is small, and reviewers are blunt about the built-in panel being poor. Budget for the Bluetooth app or a remote panel and mount it somewhere you can actually read it.
Two other practical notes. The fans can be loud while charging, so do not mount it inside a sleeping area. And the flip-up AC wire connectors are fiddly with stranded wire, leaving very little working space, so budget extra time and a good crimper. It also cannot be fully powered down while connected to AC input, since internal circuits still pull about 1 amp.
1800W pure sine output
Roughly 40A charge function
Quick-connect AC terminals
Digital remote included

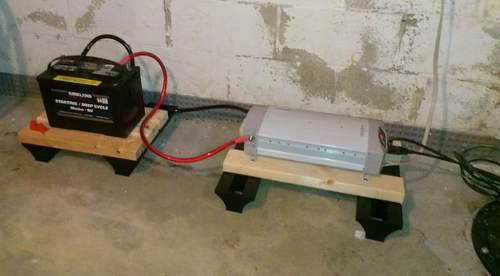

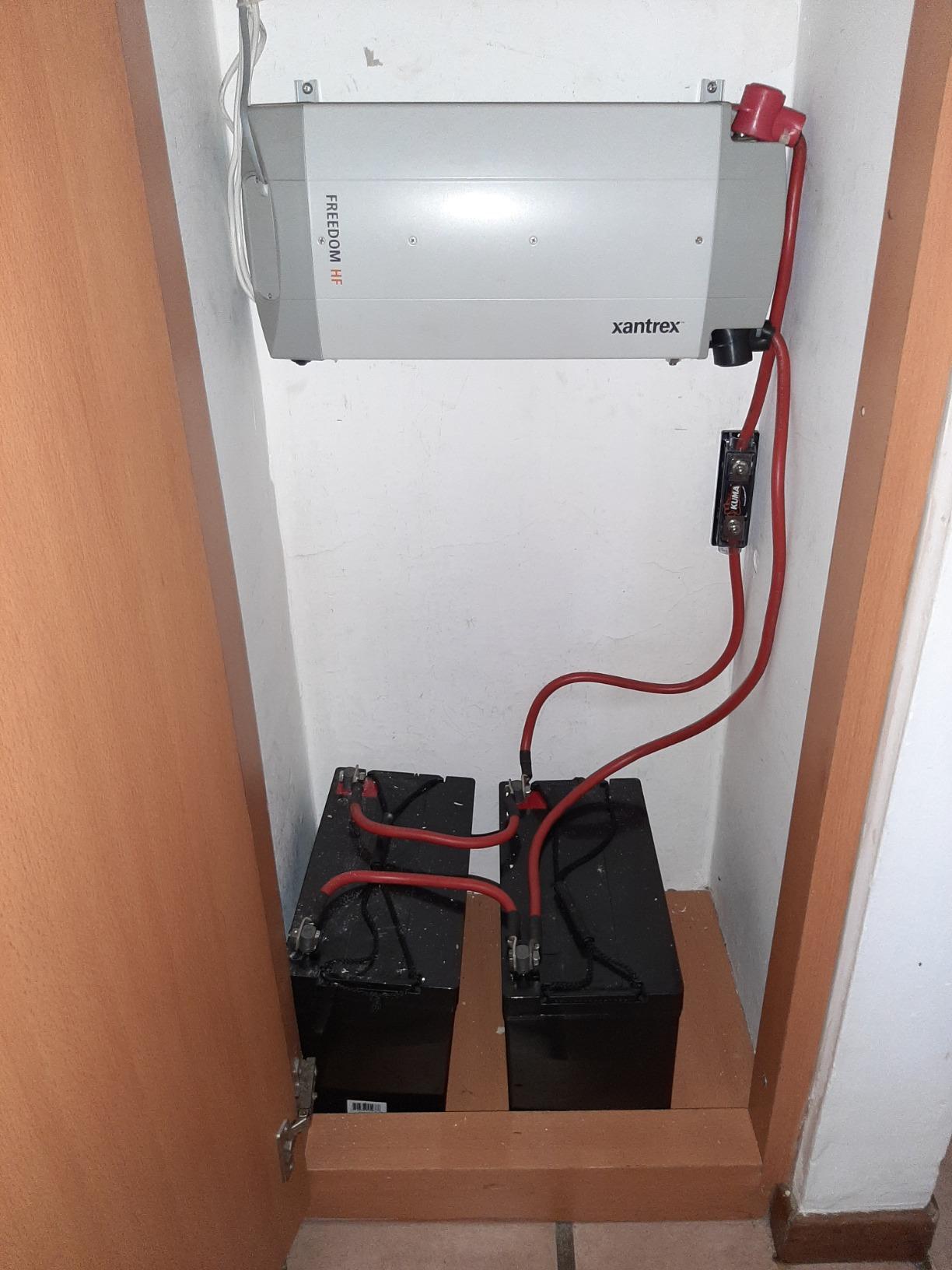

Not every rig needs three kilowatts. If your loads are a laptop, a router, a television, a coffee maker, and lighting, the Freedom HF 1800 handles the job at 15.4 pounds and 1800 watts of pure sine output.
Its roughly 40 amp charge function is the trade-off. That is perfectly adequate for a pair of group 31 lead-acid batteries or a modest 200Ah lithium bank, but it will feel slow against a large solar array. Reviewers who upgraded from an older converter report fast recharge on smaller banks.
Owners with long service histories describe units running for years, and it handles tools like orbital sanders and jigsaws alongside household appliances such as vacuum cleaners and coffee makers.
The most-reported issue is that the charger drops out when a compressor or air conditioner starts on a smaller generator. If your generator is at the low end of what your loads demand, test it before you rely on the unit as your only charging path.
A second practical point: if you are replacing an older Xantrex inverter, check which remote panel you already have. Panels from earlier models are not compatible, and owners report having to pull extra wire to get a working display.
Several owners report output voltage sagging to between 95 and 100 volts after extended continuous use. Appliances with a wide input tolerance may never notice, but sensitive electronics can.
Also note that the included GFCI receptacles can fail, and the model will not run until they are replaced. Keep a spare on hand. The remote display itself is limited and uses bright red lettering, which is unpleasant in a dark cabin.
6000W output at 24V
240V split phase output
85A multi-stage charger
18000W surge

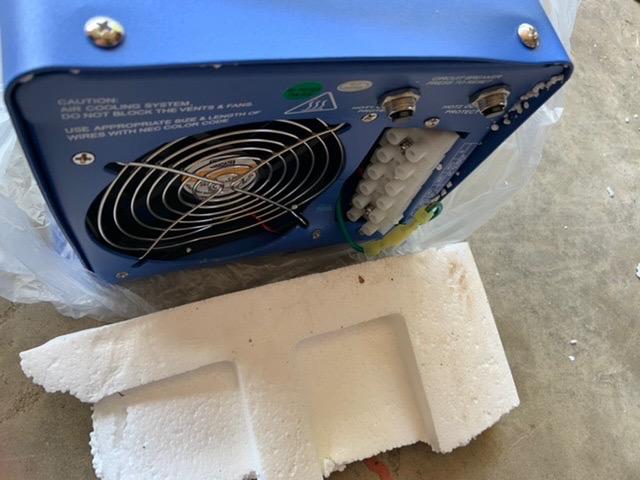

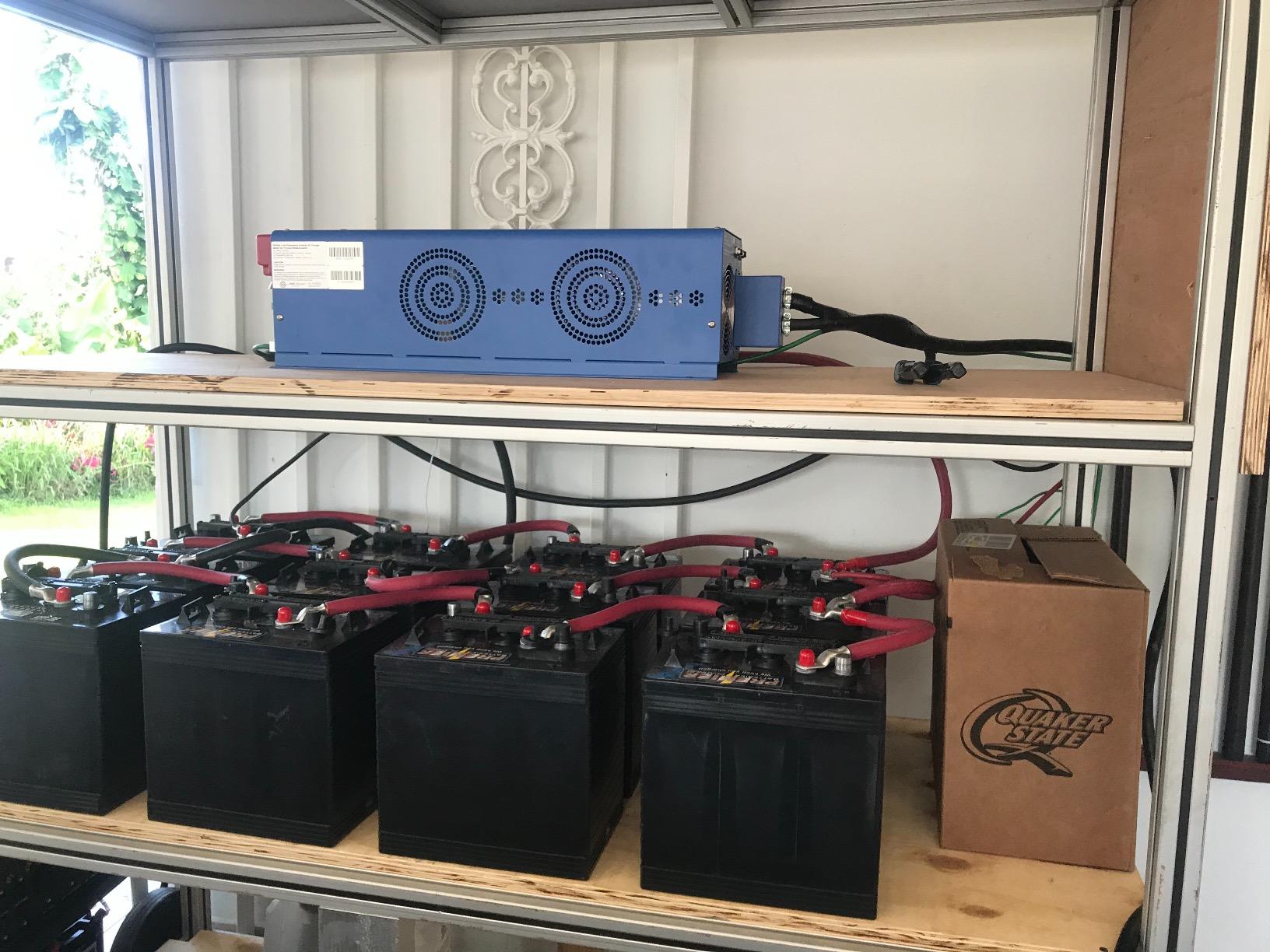

Some off-grid builds are really small workshop builds that happen to live in a van. This 6000 watt AIMS unit is built for that. Owners report powering shop tools, heaters, and saws simultaneously with sustained draw above 180 amps from the bank.
Output is 240 volts at 60 hertz from a 24V input, and it splits into two 120V legs for whole-home or shop backup. The surge rating of up to 18000 watts for 20 seconds gives you enormous starting headroom for compressors and motors.
The charger is an 85 amp multi-stage model with eight selectable profiles covering gel, lead acid, AGM, and lithium plus a lithium wake-up function. A dip switch handles simple AC priority or battery priority configuration, and owners describe the transfer as invisible with no blink or reset of connected equipment.
Roughly 90 watts from the battery bank with nothing connected is enormous in a coach context. On a modest 400Ah lithium bank that is a large slice of usable capacity burned simply existing, and it means this unit makes far more sense on a shop site with a large bank and a generator than on a weekend trailer.
The remote panel is also a bare circuit board with no enclosure and provides minimal information, and there is no current draw readout, so you estimate battery life from the load percentage instead.
Terminal blocks are barely large enough for the recommended 4/0 DC and 6 AWG AC wire sizes. That is a design compromise worth knowing about before you order the cable.
The manual is unclear, and at least one version is dated regarding dip switch positions, so plan on confirming settings from a current source. The model carries a one year warranty and the charger reportedly cycles rather than holding steady current, which bothers users who expect a smooth multi-stage profile.
4000W output at 24V
12000W surge for 20 seconds
50A smart charger
3x surge capability
Quietness is the selling point here, and it is a real one in a residential or coach interior. Owners run this unit continuously in off-grid homes and class C motorhomes and describe it as inaudible in normal operation, which is not something we can say about every chassis here.
It delivers 4000 watts of pure sine output at 60 hertz from a 24V bank, with 3x surge capability for up to 12000 watts over 20 seconds. That is enough to start air conditioners and heavy compressor loads.
The built-in 50 amp smart charger covers LiFePO4, gel, AGM, and lead with selectable profiles, adjustable current, and a lithium wake-up function. Optional wired LCD remote or Bluetooth dongle lets you monitor it when the chassis is mounted out of reach.
This unit cannot charge the battery bank and run the inverter at the same time. For some owners that is a dealbreaker, particularly if you want solar arriving while a fridge and lights are running.
Understand what that means in practice: on a purely off-grid morning with a big array coming in, you choose between recharging and using power. Any inverter with load assist or simultaneous charge and invert avoids the choice entirely, and none of the units in this roundup offer it.
The unit beeps during transfer and when a compressor or air conditioner starts, and owners report no way found to disable the tone. On a quiet night that is irritating.
Power save mode requires roughly a 50W resistive load to stay awake, so a motor will not wake it. Front panel controls are small and delicate, charge voltage presets are not fully programmable, and at nearly 68 pounds this is a two-person lift. A few owners also report flicker or instability in inverter mode after several years of service.
3000W rated and 9000W peak
LCD display with remote
Under 60dB noise
Five operating modes

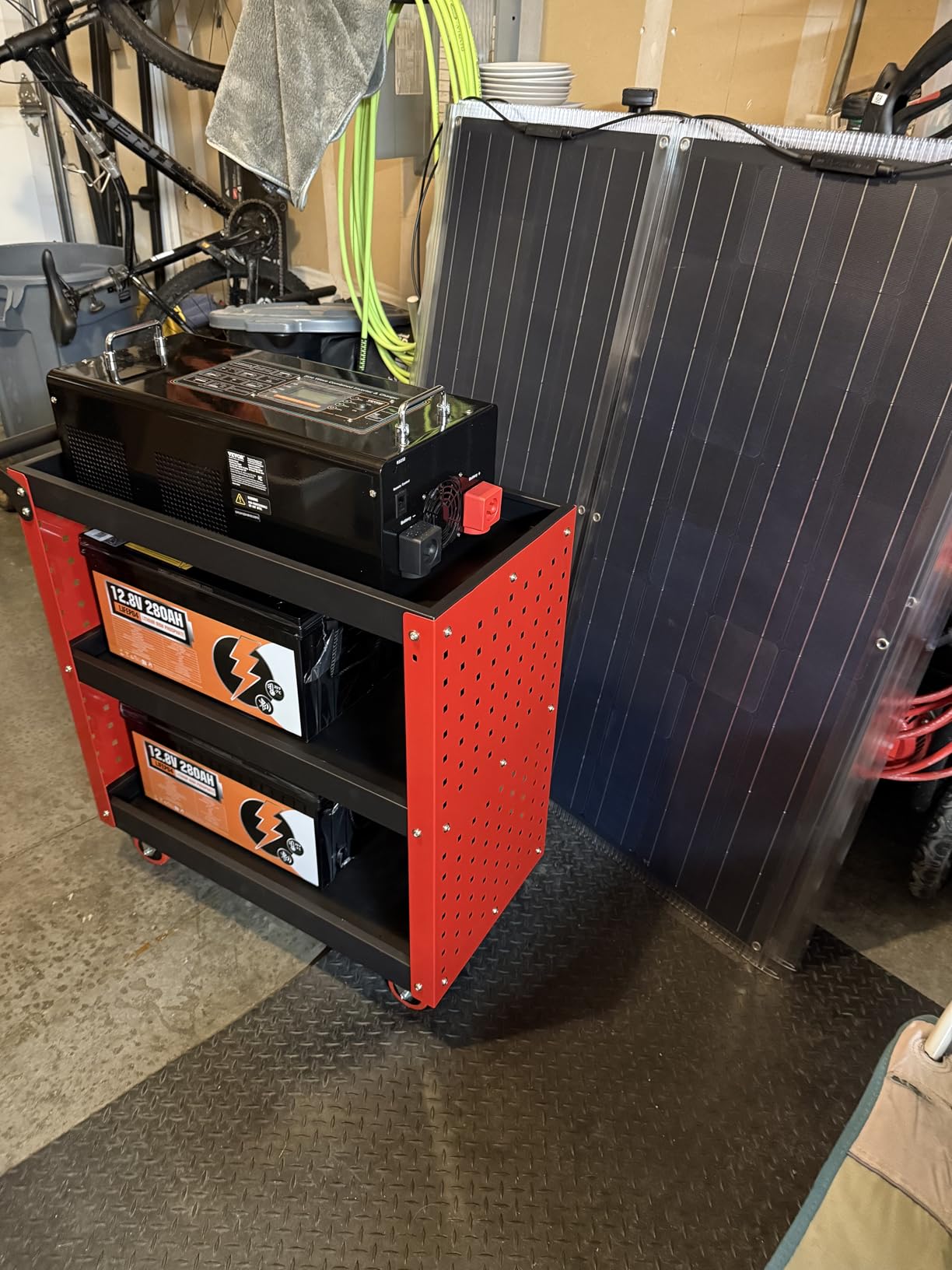

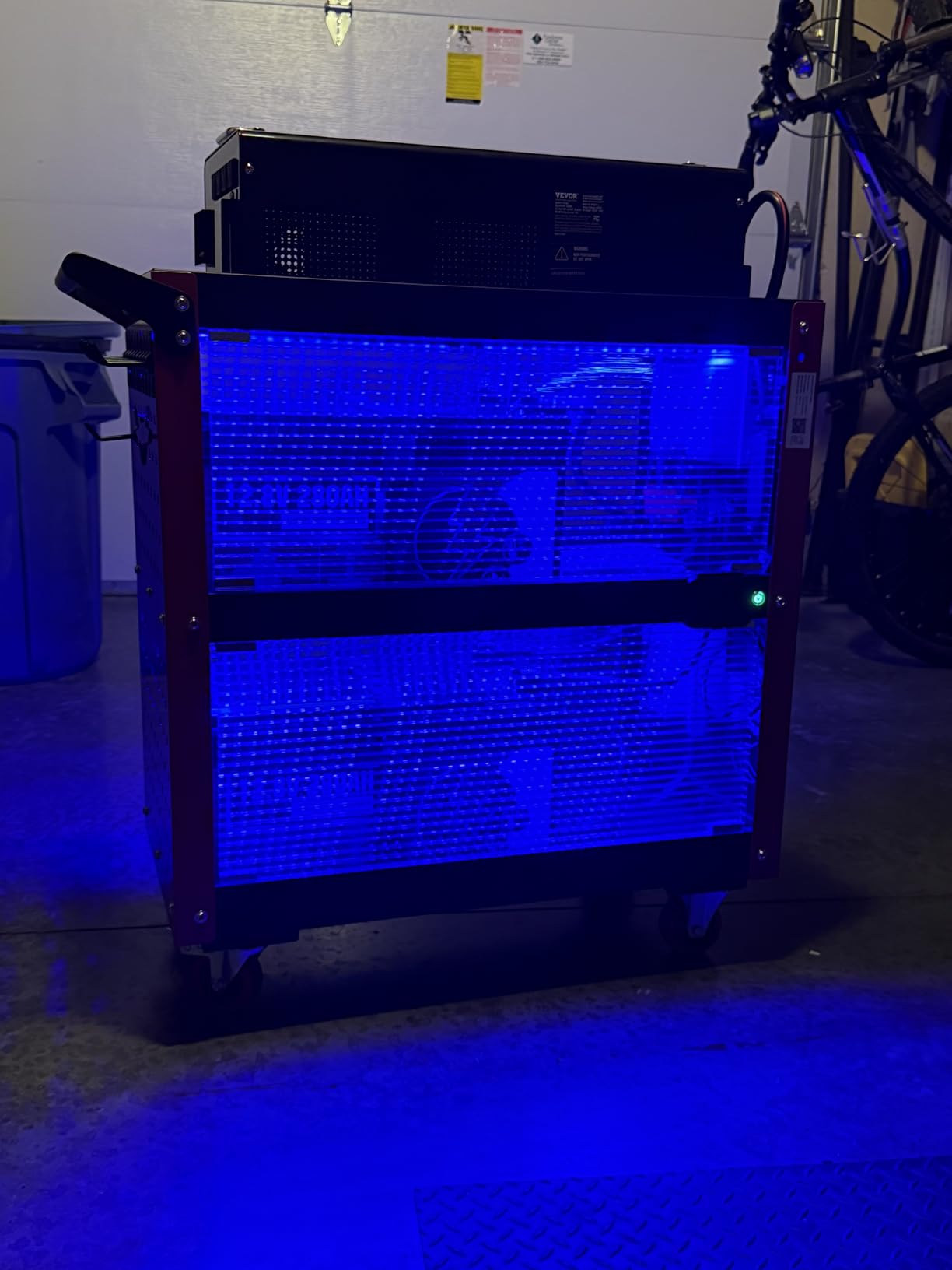

The VEVOR PS3000IIW packs more user-facing hardware into a 3000W chassis than anything else here at a comparable price bracket. You get an LCD, a detachable controller on a 32.8 foot remote cable, and five operating modes: Unattended, AC Priority, Battery Priority, ECO, and Generator.
Output is 3000 watts rated with a 9000 watt peak, pure sine wave at 60 hertz on 12V input. Noise is specified under 60dB, which owners confirm is quiet enough to sit near a sleeping area.
Battery compatibility is broad: LiFePO4, lithium-ion, gel, AGM, SLA, and flooded. Recommended continuous load is listed at under 1200 watts per outlet, and it handles hard inductive starts including a 2 HP air compressor.
The most substantive complaint is that delivered charge current sometimes does not match the setting you selected. If your whole plan depends on recovering overnight from a solar day, verify the actual current once with a clamp meter before you rely on it.
Related to that, charging does not automatically resume when you switch from battery mode back to AC mode. Plan to press something rather than assume the unit will sort it out.
The manual is glossy, incomplete, and does not match the online PDF. It also omits the instruction to pre-charge the inverter capacitors before first power-up, which matters if you install it in cold weather.
The cooling fan runs at a single high speed and cycles on and off rather than varying, and customer support is email-only with slow responses. Several recent reviews appear to cover other wattage variants of the same line, so confirm you are reading about the 3000W 12V version specifically.
1200W pure sine output
3600W peak
0-15A adjustable charge
Selectable LiFePO4 profile

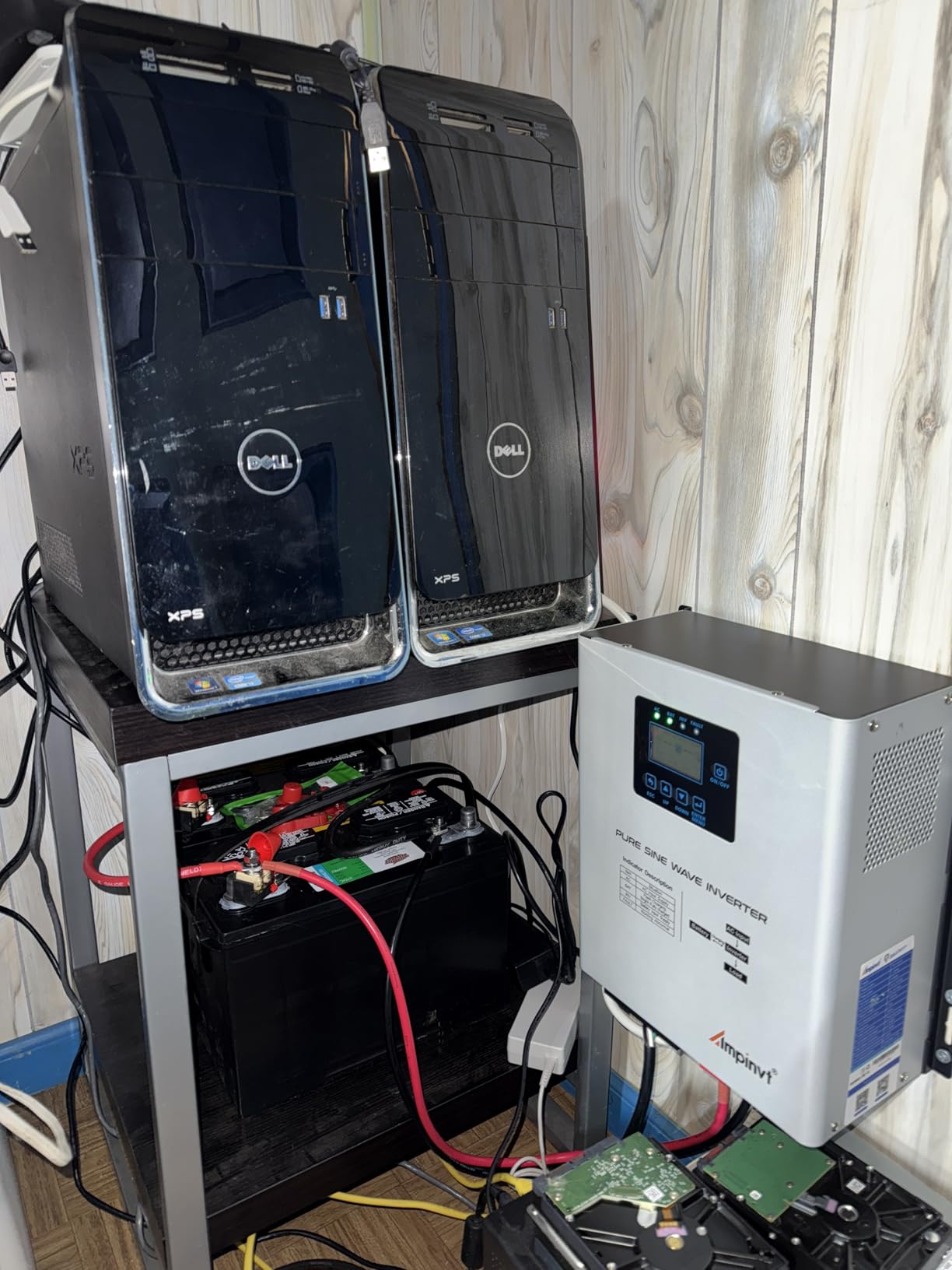

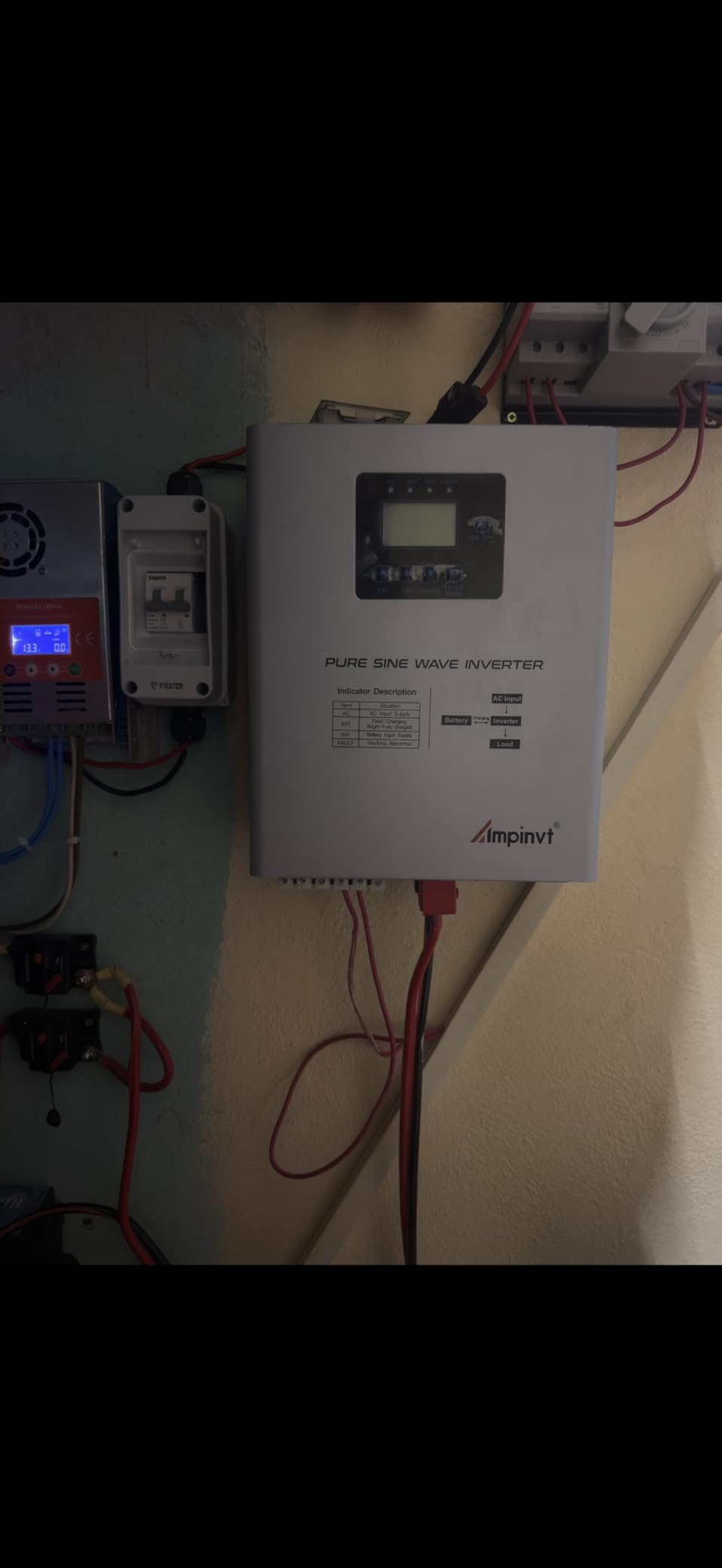

This is the smallest unit on the list, and for some rigs that is exactly right. At 1200 watts of true pure sine output it runs laptops, phones, small TVs, and a CPAP machine cleanly, and at 19 pounds it mounts anywhere.
The architecture is a three-in-one design with an inverter, a battery charger, and an AC auto-transfer switch rated above 90 percent transfer efficiency. Five working modes cover AC priority, battery priority, generator, ECO, and unattended operation, and there is full protection for low voltage, high voltage, over temperature, over load, and short circuit.
Reviewers consistently describe it as well suited to a stationary UPS or cabin backup rather than a coach, and we agree with that framing.
The adjustable charging current tops out at 15 amps. A typical RV house bank of two group 31 batteries in parallel holds well over 200Ah, and even a modest 200Ah lithium bank needs far more than 15 amps to recover from a solar day.
So decide what this unit is for. If you want clean AC for a few small loads while parked and charge through a separate solar controller, it is a good fit. If you expect it to be your primary charge path, it will disappoint every time.
One detailed report warns that the SLA preset holds a float voltage near 14.4V, which damaged a lead-acid bank. Select the profile that matches your actual chemistry rather than leaving it on a default.
The battery state-of-charge reading on the display is often inaccurate, the RS-485 port is documented with no usable protocol information, and the cooling fan runs continuously enough to be audible in a quiet cabin.
The difference between an RV inverter and a converter is the single most useful thing to understand before spending money. A converter takes incoming 120V AC from shore power or a generator and turns it into 12V DC to charge your house batteries, and that is all it does. An inverter goes the other way, turning your 12V DC batteries into 120V AC for your appliances. An inverter charger is one device that does both, switching direction automatically.
Your factory converter is almost certainly a converter. It charges the batteries while you are plugged in, and the outlets go dead the moment you unplug, because there is no path from the batteries back up to the outlets. That is why so many owners discover their outlets do not work off grid and assume something is broken.
Three other terms you will see in this category. A transfer switch moves your loads between incoming AC and battery power; having one built into an inverter charger saves an installation. Surge power is the short burst a unit can deliver to start a compressor, and it is typically three times the continuous rating. Charger amperage is how fast the unit refills the bank, and it is the spec most first-time buyers ignore.
Pure sine wave output matches utility power closely, so anything with a sensitive power supply behaves normally. Modified sine wave output is a cheaper stepped approximation. It runs simple resistive loads perfectly well, but it can cause hum in audio gear, erratic behaviour in some variable-speed motor controllers, and outright refusal to start in a small percentage of sensitive devices.
Run modified sine without hesitation: incandescent and LED lighting, electric heaters with a resistive element, space heaters, older non-digital televisions, and simple extension cords.
Choose pure sine for: coffee makers, microwaves, laptops and phone chargers, medical devices including CPAP machines, variable-speed fans, laser printers, audio amplifiers, and anything with a switching power supply you would rather not gamble on. Ten of the eleven models in this roundup are pure sine wave, and only the Freedom 458 is not.
Size in four steps. Step one: write down every appliance you want to run and find its running watts, usually printed on the underside or on the label near the cord. Step two: sum the running watts of everything that could be on simultaneously, not everything you own. Step three: for any motor or compressor load, check the surge figure and confirm the inverter can supply at least two to three times that momentarily. Step four: choose a continuous rating at least 25 percent above your summed peak so you are never sitting at the ceiling.
The most common sizing mistake is picking a unit for the biggest single appliance rather than the sum of the household load. A 3000W unit will start a 12,000BTU roof air conditioner and then have very little left for the refrigerator and the electronics behind you.
On charger amperage, a useful rule is to match charge amps to roughly a quarter of your bank capacity in amp-hours. A 400Ah bank pairs naturally with a 100A charger. Going much larger does not charge faster in practice because the wiring, the battery chemistry, and the absorption stage all become the limiting factor, and it drives more heat into the compartment.
Finally, check the transfer rating. A coach on a 30 amp service needs a transfer switch of at least 30 amps. Owners running a 50 amp service should match it rather than relying on a lower-rated internal relay.
Runtime is arithmetic, not marketing. Take usable watt-hours, divide by the load in watts, and you have hours. A 400Ah LiFePO4 bank holds roughly 400Ah at 12.8V, which is about 5120 watt-hours, and you should assume about 80 percent is usable, so call it 4100 watt-hours. Lead-acid is roughly half that, because you only take about 50 percent out before the inverter cuts out.
Worked examples at a modest 300W running load, which is a laptop, a router, lighting, and a small TV. A 200Ah LiFePO4 bank gives you about 13 hours. A 400Ah LiFePO4 bank gives about 26 hours. An 800Ah LiFePO4 bank gives about 52 hours. The same 400Ah bank in AGM gives you roughly 13 hours, because half the capacity is reserved.
Now subtract idle draw, because it is easy to forget. A unit rated 3A no-load while inverting consumes about 36 watts continuously before you plug anything in. On a 400Ah lithium bank that erodes an evening of runtime noticeably, and it is why the 6000W split-phase unit on this list is a hard sell for a small coach.
For a rough check at 2000 watts, divide usable watt-hours by 2000. A 400Ah LiFePO4 bank holds about two hours of full 2000 watt output before shutdown, and a 2000 watt inverter running a refrigerator averaging 150 watts can run for the better part of a day. That gap between full output and typical draw is exactly why most owners end up over-sizing.
The unit is rarely where the real cost lives. Battery banks, cable gauge, and fusing consistently dominate the budget of an off-grid build, and owners regularly report being surprised by the cable bill more than by the inverter price.
On DC cable, size to the wire length and the current, not just the breaker. Long runs lose efficiency quickly, and the number 4/0 requirement on several of these models is not padding. Follow the ampacity tables in the NEC and use marine-grade or RV-rated cable in an engine bay or a hot compartment.
Fuse within a short distance of the battery, on the positive lead, using a fuse rated for the cable, not for the inverter. This is the single most skipped step in amateur builds and the one an inspector will catch.
Ventilation matters as much as gauge. Every unit here needs unobstructed airflow on at least two sides, and a unit running warm to the touch in a sealed compartment will derate and eventually fail. If the compartment gets hot in summer, derate your expected continuous output accordingly.
Finally, think about the factory transfer switch already in your coach. Two transfer devices fighting each other is a common source of confusion on these installs. Some coaches need the factory switch bypassed; others need a dedicated inverter sub-panel instead of running everything through the existing main panel. This is the point where a qualified marine electrician earns their money.
Work the sequence in order rather than swapping parts. Step one: measure the battery voltage at rest. A healthy 12V lead-acid bank sits around 12.6V or higher when full, and reading substantially below that usually points at the batteries rather than the charger. Step two: confirm AC is actually reaching the unit, at the pedestal and at the inverter input, because a tripped coach breaker or an unplugged shore lead looks identical from the inside.
Step three: check the battery type selector. Both AIMS models in this roundup use a dial with no position feedback, and a mis-set profile leaves the float stage disengaged even though the charge indicator is lit. Step four: look at battery temperature. Built-in temperature compensation only works if the sensor is actually attached to the bank, and a coiled-up sensor in free air will under-charge a cold battery and over-charge a warm one.
Step five: verify the load. A unit that cannot charge and invert simultaneously, or that is carrying a large load plus charging, will present exactly like a charging fault. Reviewers on several of these models report this as their most common confusion.
Step six: check for a lithium BMS that has shut down. If a lithium bank has been driven low enough to trip its protection, the pack reads full voltage while accepting no current. Most units here include a wake-up function, but the bank may need to be brought up with a separate charger first.
Step seven: listen and look. Fan noise that changes pitch usually means a fan bearing is going. A unit that is cool to the touch after hours on AC has either lost input or has a failed internal stage. And if you see scorch marks on terminal blocks, stop and replace the conductor rather than retightening it.
A converter only turns incoming 120V AC from shore power or a generator into 12V DC to charge your house batteries, and it cannot deliver power back out to your outlets. An inverter goes the other way, converting 12V DC from your battery bank into 120V AC for appliances. An inverter charger does both in one unit and switches direction automatically, which is what makes outlets work off grid.
Divide usable watt-hours by your actual load in watts. A 400Ah LiFePO4 bank holds roughly 4100 usable watt-hours, so at a 2000 watt continuous load you get about two hours before shutdown. At a realistic 300 watt load the same bank runs about 13 hours. The same 400Ah bank in AGM delivers only about half that usable capacity, because lead-acid reserves roughly half its charge.
It depends on idle draw and how long you sit. Most units here draw between under 1 amp and 3 amps while inverting with nothing plugged in, which is fine overnight but noticeable over a week of parked boondocking. Many owners switch the unit off when loads are minimal and rely on a small battery monitor instead. Switching off also protects the battery from repeated small discharges while you are away.
With a modified sine wave unit, avoid variable-speed motor controllers, medical devices including CPAP machines, audio amplifiers with class D stages, and sensitive electronics such as some laser printers, since stepped waveforms can make them hum, run hot, or refuse to start. With any inverter, never exceed the continuous rating and always check surge capability before starting compressors, and avoid daisy-chained extension cords and cheap power strips.
Work the sequence rather than swapping parts. Measure resting battery voltage first, since a reading well below 12.6V on a 12V lead-acid bank points at the batteries. Then confirm AC is actually reaching the unit, check that the battery type selector is set correctly since a mis-set profile leaves the float stage disengaged, verify the temperature sensor is attached, and rule out a lithium BMS that has shut down and needs a wake-up cycle.
Yes, if the unit has enough continuous rating and surge capability for the compressor. A 3000W unit with 9000W surge or better gives typical 12,000BTU roof air conditioners room to start, but budget the compressor running draw plus everything else in the coach at the same time. On a smaller 1800W or 2000W unit, a soft-start relay on the compressor is usually required to make the start reliable.
After screening eleven models on waveform quality, charger output, transfer behaviour, and physical fit, the Xantrex Freedom 458 remains our best rv inverter charger for most coaches because power sharing protects the campground pedestal and its review history is by far the deepest here. If you run a roof air conditioner or a genuinely large battery bank, step up to the Freedom SW 3012 for its 150 amp charger and UL458 marine listing. If solar is the centre of your build, the SRGFTS hybrid gives you a 120A MPPT controller, a 100 amp charger, and 3600 watts of inverter in one box.
Match the unit to your real simultaneous load rather than the biggest appliance you own, size the bank to the runtime you want, and remember that cable and fusing costs routinely exceed the inverter itself. If you are still deciding whether you need an inverter at all, start by confirming whether your existing converter is a converter-only unit, because that single fact determines everything else. Our guides to the best RV generators and battery chargers for car batteries cover the charging side of a build, and the solar generators for off grid cabins guide is useful if you are weighing a portable power station instead of a fixed install.
