A guide scope is a small secondary telescope, usually a 30mm to 60mm achromat refractor, that rides on top of or beside your imaging telescope. Its only job is to supply stars for a guide camera and software like PHD2 Guiding to measure and cancel tracking errors. That is the whole mechanism behind the best guide scopes for autoguiding, and choosing one well is mostly a question of weight, focal length and how rigidly it mounts.
When I started imaging, I assumed guiding was about optics. It is not. Autoguiding quality comes down to a guide scope being light enough not to upset your mount balance, short and rigid enough to avoid differential flexure, and long enough in focal length to place a decent guide star in frame. Pick those three things correctly and even a basic achromat performs well.
I compared these six guide scopes over several months of deep-sky imaging, checking focuser feel, mounting hardware, back focus clearance and how each one behaved next to the imaging train. Two of them now live on my rig permanently, and the differences between the rest come down to weight and mounting style.
Choose a guide scope with roughly one-third to one-half the focal length of your imaging telescope, and never go below about 150mm. For a 1000mm refractor that means a 300mm to 500mm guide scope; for a 1500mm Schmidt-Cassegrain, 500mm or more. Modern small-pixel guide cameras relaxed the old rules, so pairing modern hardware rarely forces the long guide scope many imagers still assume they need.
The other half of the answer is weight. Every gram you hang off the imaging train sits on the same mount that has to slew and track, so a 30mm mini tube that weighs under 350g is often the smarter pick on a small equatorial mount or a travel tracker. I would rather have a light 120mm guide scope that stays locked onto its target all night than a heavy 240mm one that drags the mount off balance.
| Product | Specifications | Action |
|---|---|---|
| SVBONY SV165 30mm f/4 Mini Guide Scope |
|
Check Latest Price |
 SVBONY SV106 60mm Helical Guide Scope |
|
Check Latest Price |
| Sky-Watcher EvoGuide 50DX APO Doublet |
|
Check Latest Price |
 Astromania 60mm FMC Helical Guide Scope |
|
Check Latest Price |
 Alstar 50mm Double Helical Guide Scope |
|
Check Latest Price |
 MEOPTEX 60mm Micro Focuser Guide Scope |
|
Check Latest Price |

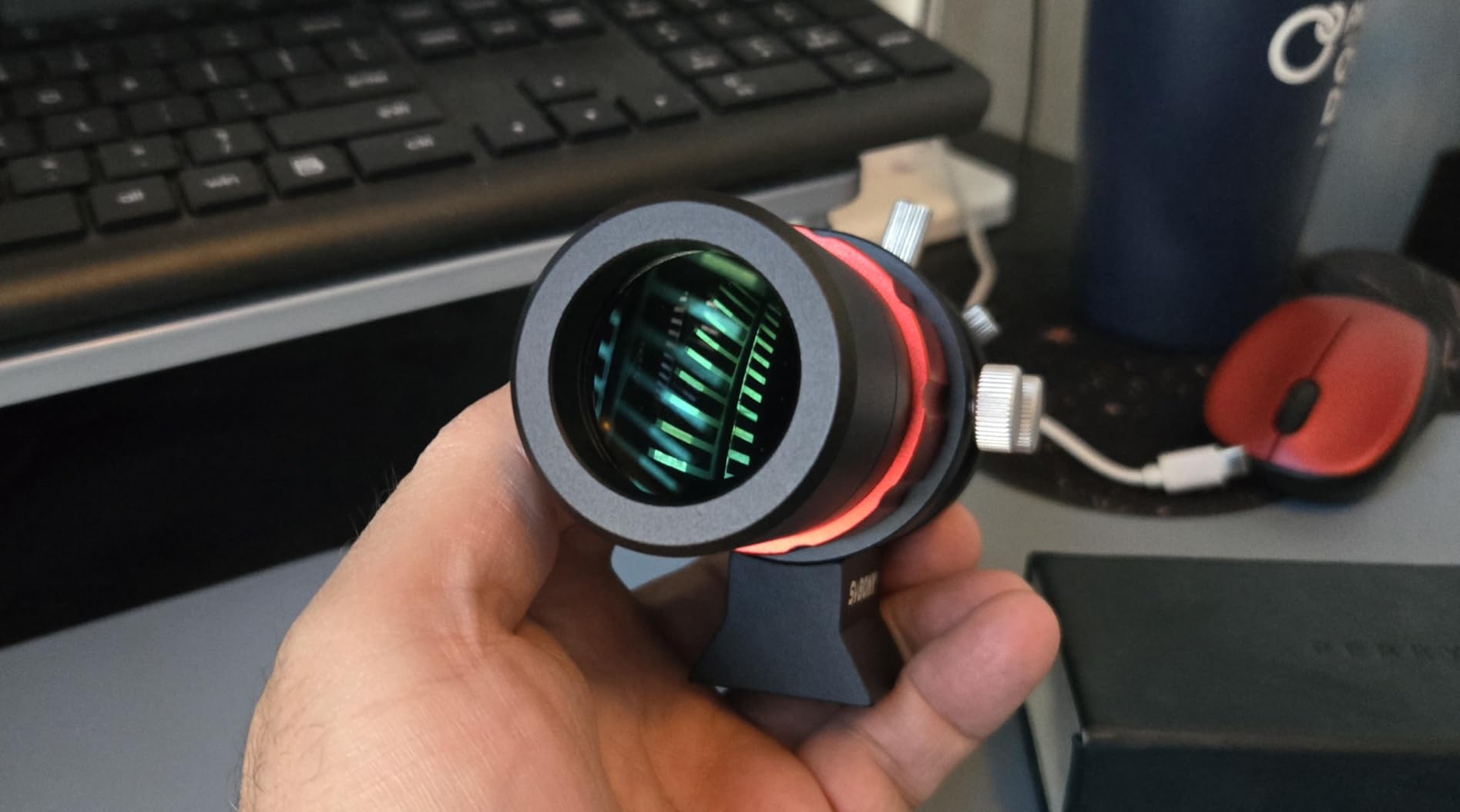

30mm achromat at f/4
120mm focal length
2.86 degree true field
45mm back focus
342 g

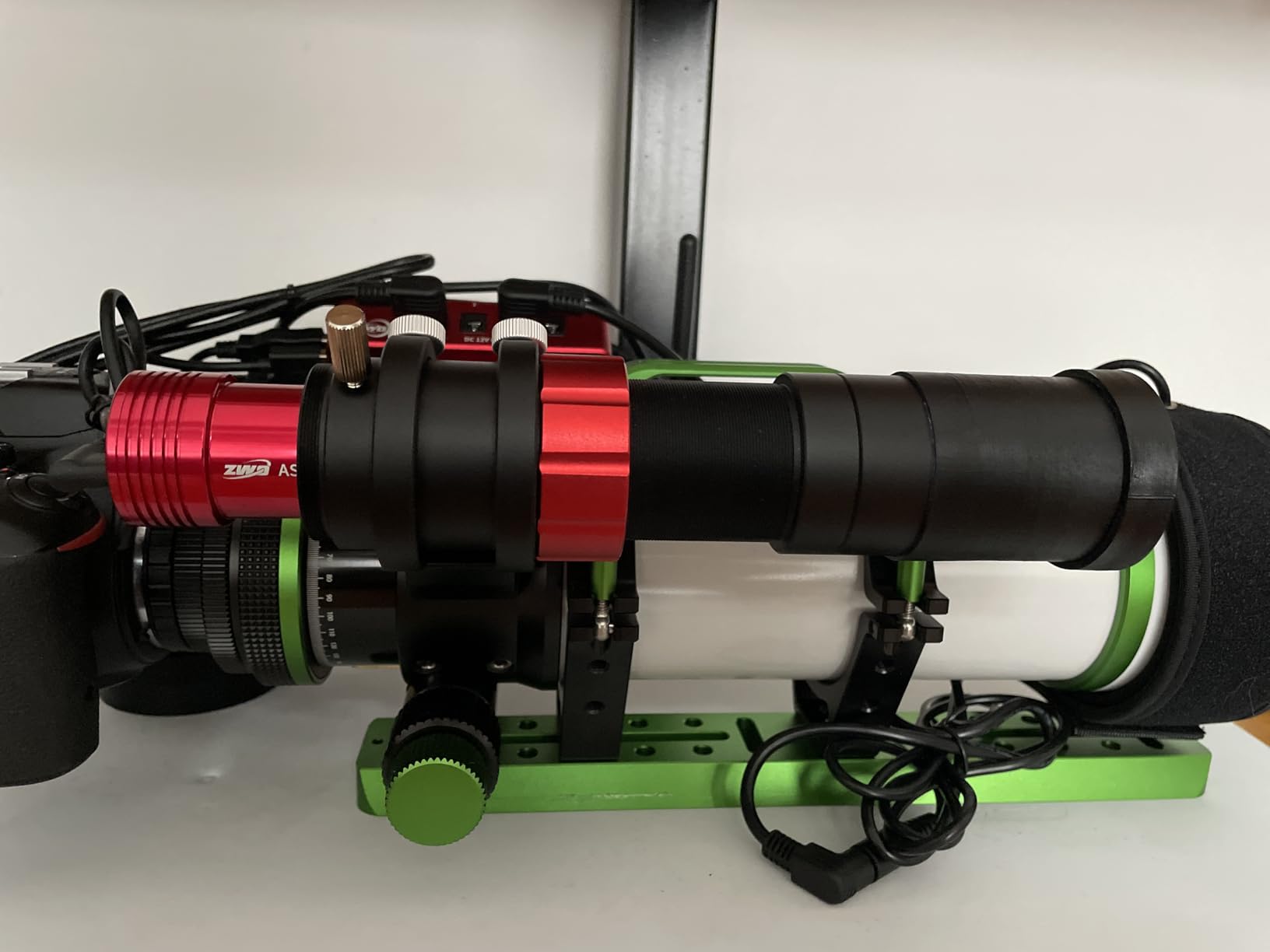

This is the scope I reach for first. At 342g it adds almost nothing to the balance of a travel rig, and the 2.86 degree true field is wide enough that I have never struggled to find a guide star in a suburban sky with real light pollution. The 120mm focal length is short, but with a modern small-pixel guide camera the resulting image scale is still usable.
Focusing took me about a minute. The 45mm back focus distance means my guide camera reached focus without an extension tube, which is where a lot of first guiding setups go wrong. Once the focus lock ring is tightened the focus holds for the whole night, and the nylon-tipped thumbscrews on the included rings keep the barrel unmarked.

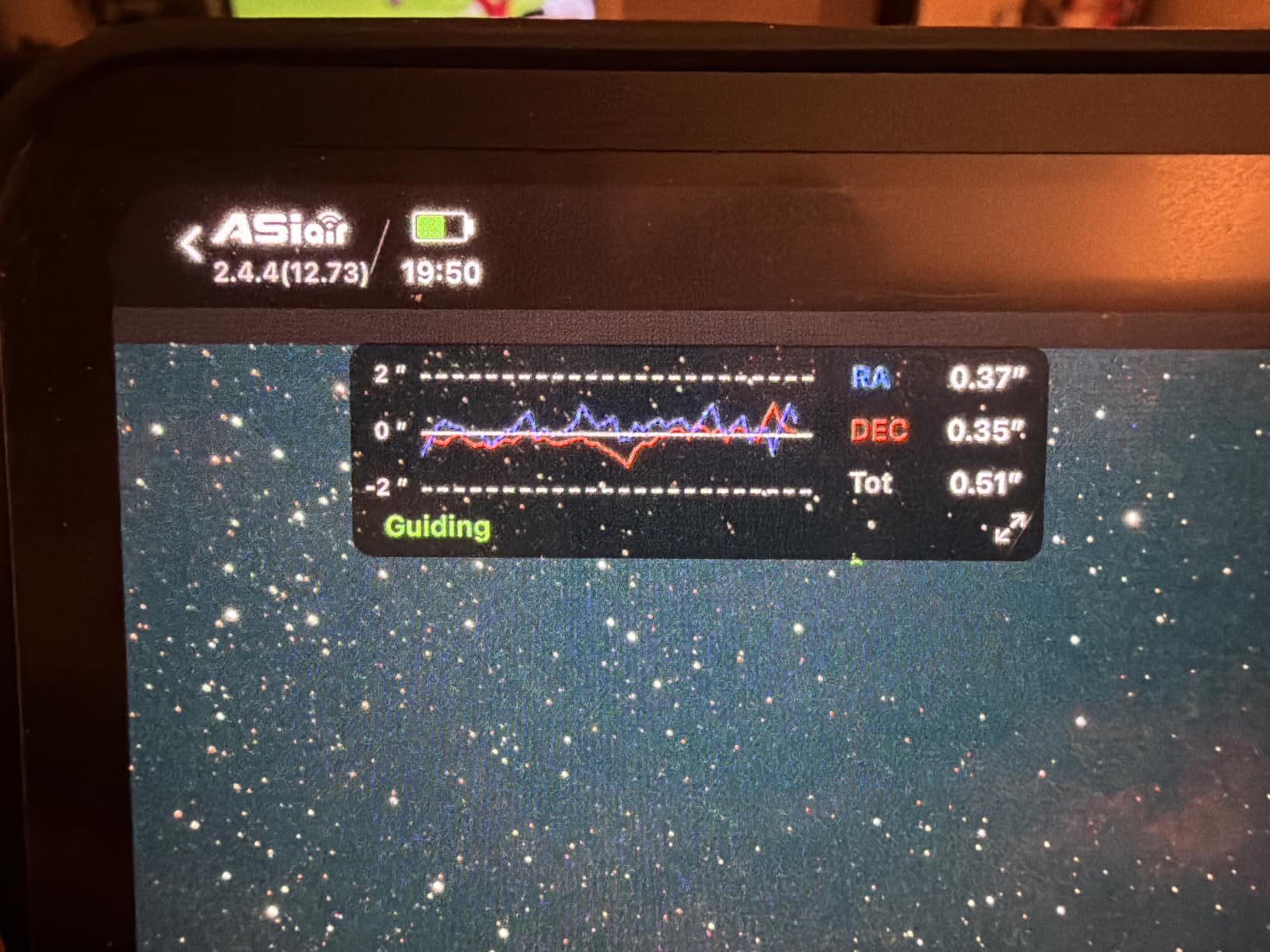

Reviewers commonly report total error in the 0.4 to 0.7 arcsec range with this tube, which matches what I saw once polar alignment and backlash were sorted out. On r/AskAstrophotography the recurring theme is that weight is the binding constraint on a small mount, and this is the lightest serious guide scope in the group by a wide margin.
Two limitations are worth planning around. The focuser is simple, so fine adjustment is coarse by comparison with a helical design, and it physically cannot reach focus with a star diagonal or dielectric mirror diagonal. If you plan to use the same tube for visual observing through a diagonal, look elsewhere.
For most refractors and Newtonians up to about 1000mm of focal length, yes. The wide field of view is the compensating factor, since it keeps several candidate guide stars visible even when the guide camera’s field is small. Below a 2 micron pixel size the short 120mm focal length stops being a problem in practice.
Above roughly 1500mm the picture changes. A 30mm f/4 at that point gives a guiding ratio so aggressive that ordinary mount tracking error and the guide scope’s own sensitivity both start to show, and an off-axis guider becomes the better answer. I would pair this scope with a 250mm to 800mm refractor and save it there.
Skip it if you rely on visual finding with a diagonal attached, or if your imaging train is a long Schmidt-Cassegrain where the guiding ratio demands more magnification. It is also not ideal as a shared optical path with a large planetary camera, since the short focuser barely accommodates the larger bodies.
Everything else is served well. If your mount is small, your nights are travel nights, or you are building a first guiding setup, the weight and price of this tube remove most of the risk from the decision.
60mm aperture
240mm focal length
2.39 degree field
Helical focuser plus drawtube
790 g
The 60mm aperture is what makes this one forgiving. Under skies where a 30mm tube hunts for a clean guide star, the 2.39 degree field of the SV106 always has something usable, and that single advantage removes more failed sessions than any optical refinement. It is the scope I trust when I am not in the mood to troubleshoot.

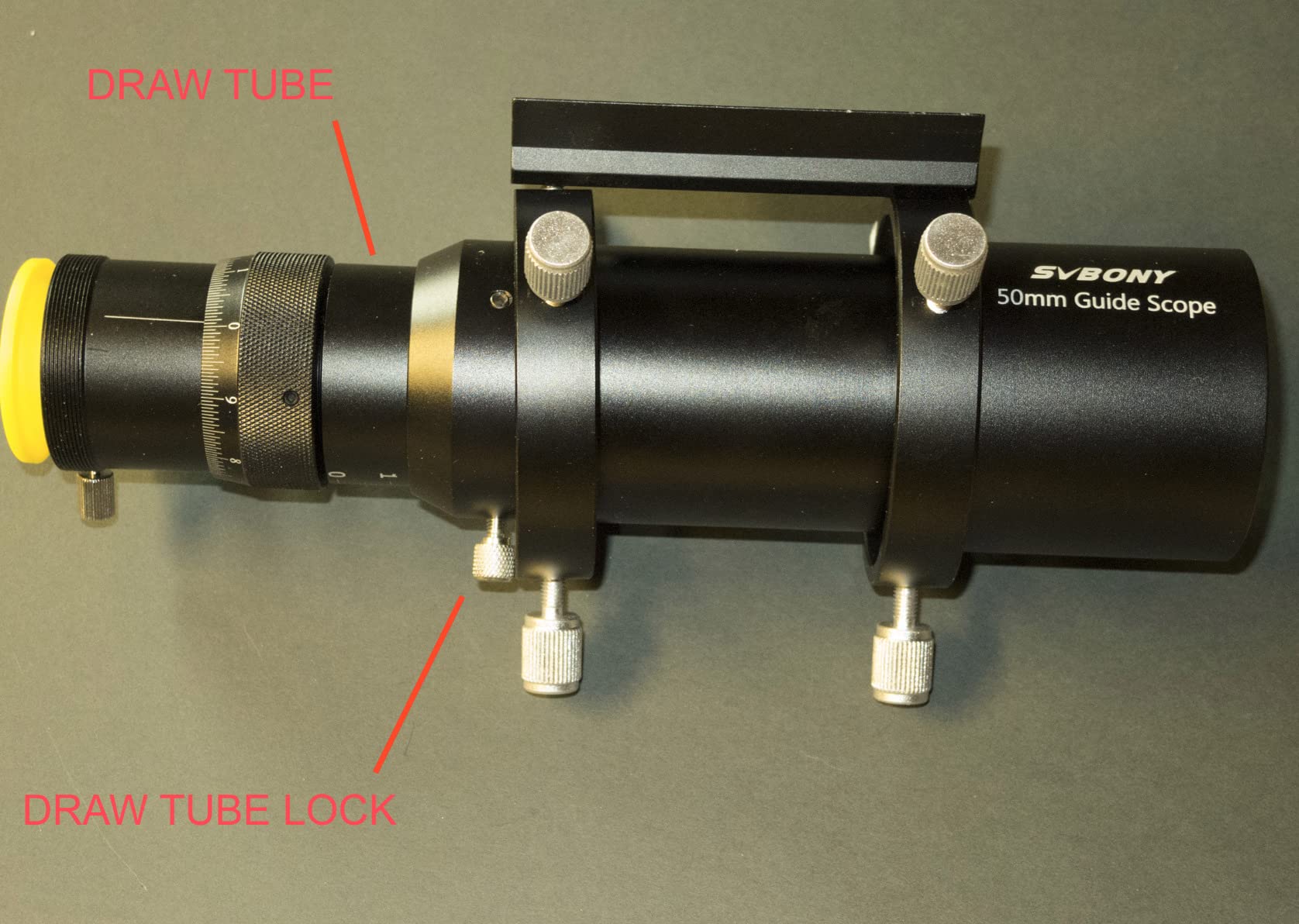

The helical focuser is the reason I kept coming back. It gives 8mm of fine travel without rotating the camera, and the telescoping drawtube adds up to 35mm more, so almost any guide camera reaches focus without an extension tube. The male T-threads on the focuser collar also mean it doubles as a straight-through finder with a 1.25 inch eyepiece.
At 790g it sits in the middle of the weight range here, noticeably heavier than the 30mm mini, and I felt that immediately on a small equatorial head. On anything with a payload rating of 5kg or more it disappears, and on r/AskAstrophotography the SV106 is repeatedly named as the go-to pick for exactly this balance of aperture and manageable mass. Forum reports also describe ordinary 60mm f/4 guide scopes paired with an ASI290MM Mini working reliably for a decade of imaging.
The limitation is focal length. At 240mm it guides beautifully on wide-field refractors and fast Newtonians, but the guiding ratio becomes marginal past roughly 1500mm. The field of view is also narrower than the 30mm tube, so in very heavy light pollution you may find fewer candidate stars despite the bigger aperture.
Yes, if you change cameras often or share the tube between guiding and visual work. Rotation-free focusing means the camera orientation stays fixed, so you do not re-centre anything after a focus adjustment, and the combined helical and drawtube travel covers camera bodies with wildly different flange focal distances.
For a single dedicated guide camera the difference is smaller, since you focus once and leave it. Even then, the extra back focus headroom is what stops an extension tube from appearing in your accessory list.
It is too long for a small star tracker and too short for a long Schmidt-Cassegrain, which leaves a narrow band of imaging focal lengths where it is genuinely the best answer. It is also bulkier to pack, and on the lightest mounts the 790g shifts the balance point enough to require a re-shim.
Optically there is very little to fault. The complaints owners raise are about size and weight, not about star quality or focuser durability.
50mm f/4.8 ED apochromat
242mm focal length
1.1 degree field
1.25 inch helical focuser
2 year warranty

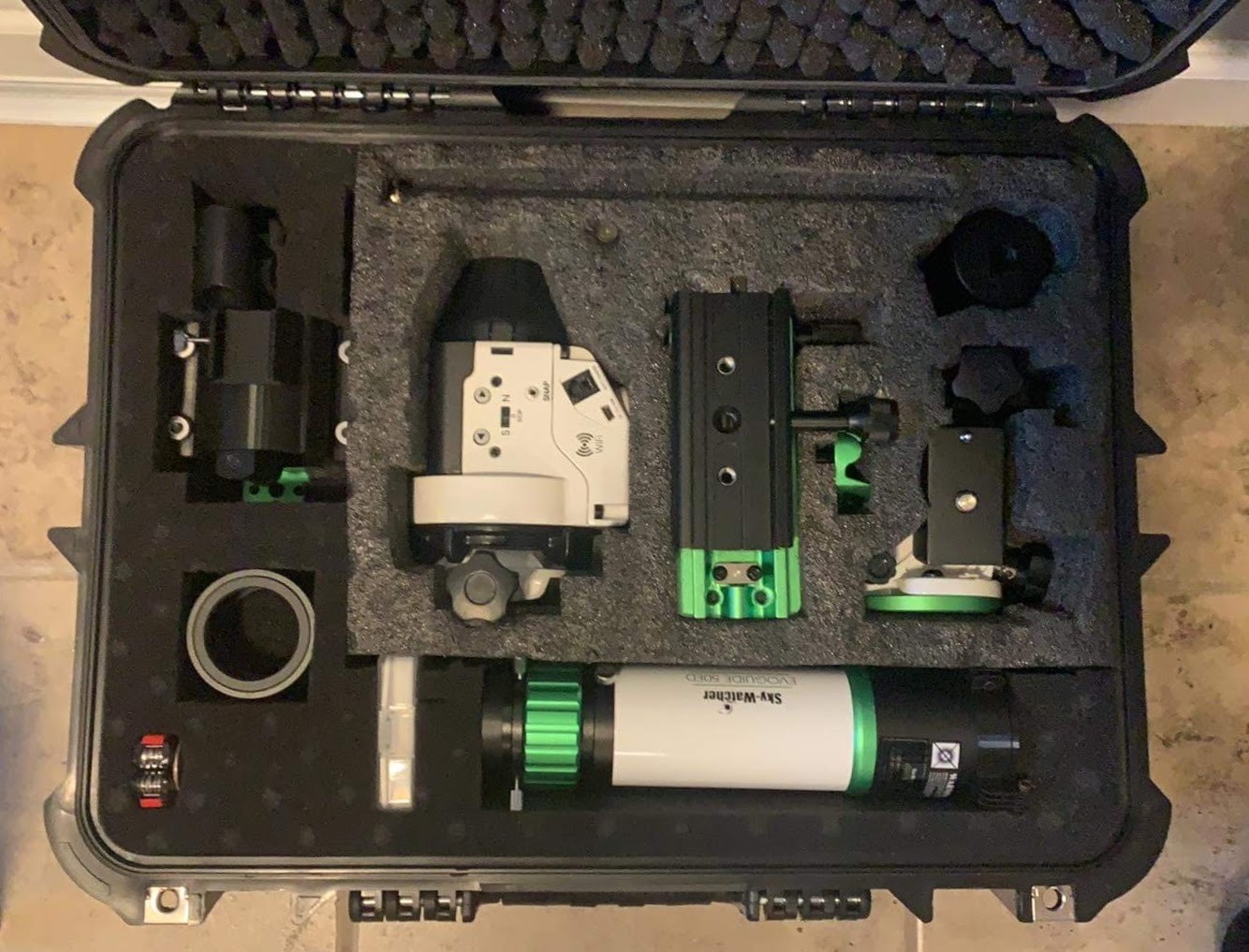

This is the only apochromatic guide scope in the group, and that difference shows up in the PHD2 graph. A tighter star has a better-defined centroid, so the software can average more sub-pixel corrections and the total error drops in a way that no amount of extra aperture elsewhere in this list reproduces. Owners upgrading from cheap achromats report the same step change.
At 242mm focal length and 50mm aperture it is a 50mm f/4.8, which is close to the ideal ratio for guiding. The included machined finder stalk fits standard Sky-Watcher finder brackets and the V-style rail drops onto a Vixen plate, so mounting took me about ten minutes with the rings already installed.
The rough part is the helical focuser. It has real backlash and slack, and I have to take that up on fine focus at the start of every session before the focus holds for hours. It is a one-time adjustment rather than a recurring problem, but it is the first thing I would want improved. The focuser section also appears permanently cemented, so it cannot be replaced.
Because back focus is short, this tube will not reach focus with a star diagonal, and pairing a DSLR with the flattener needs extra adapters. For imaging use a field flattener is also close to essential, since stars toward the edge of the 1.1 degree field elongate without one.
Yes, measurably, when everything else is equal. A 50mm f/4.8 achromat spreads the same point source over a larger blur than a matched ED doublet, and a blurrier star is a noisier centroid measurement. The improvement is typically visible as a lower total error and a flatter guiding graph rather than a dramatic change in how the image looks.
It is worth it if you image often or if you chase faint narrowband targets where every bit of signal matters. It is harder to justify as a first guide scope on a small mount, where the 2.7 pound weight is the more important number.
Anyone who wants a visual finder in the same tube, or who shares a camera between imaging and planetary work, will find the back focus too short. The V-style rail also assumes a Vixen-pattern plate, so check your mount plate before buying.
With the flattener and the right camera it is otherwise the most capable optical performer here, and the two year warranty is the longest on the list.
60mm aperture
240mm focal length
2.7 degree field
10mm helical plus 35mm drawtube
Black anodized all metal
Differential flexure is the failure mode that ruins the most guiding sessions, and this tube addresses it with hardware rather than optics. The black anodized aluminium housing is rigid, the milled and knurled rings give fine focus without a wobble, and the brass compression ring holds the camera body evenly instead of pinching it at one point. My guiding graph stayed steady where lighter tubes wandered during mount settling.
Total focusing range is 45mm, split between 10mm of helical micro focus and 35mm of scaled drawtube travel, with gradations marked on the drawtube so you can read the camera spacing directly. That is generous enough for most guide cameras without an extension tube, and it is the reason owners report sub 0.40 arcsec total error on 900mm class imaging scopes.
The adjustable dovetail weight, matching pipe clamps and Synta-style plate are all included, which removes the usual first-afternoon frustration of a mismatched bracket. I also used it as a short wide-field imaging tube before dedicating it to guiding, and the 2.7 degree field makes visual object finding easy through the built-in helical focuser.
Two honest criticisms. The focuser can feel stiff, especially cold, and the 45mm range is still not enough to clear a 90 degree star diagonal, which rules out comfortable high-power visual use. The rating distribution also shows a visible one-star tail that tracks packaging damage rather than optical failure, so inspect the box on arrival.
Because flexure is invisible in a star test and obvious in a PHD2 graph. A guide scope that shifts a few hundredths of a millimetre when the mount settles sends correction pulses that fight the imaging scope and produce the wandering error pattern that never settles. A rigid tube, a proper dovetail plate and a balance weight on hand remove that variable entirely.
That is why included hardware matters more than aperture on this list. A brighter 60mm scope in a flimsy bracket will guide worse than a slightly smaller one bolted down properly.
The 240mm focal length and roughly 2 pound mass put it in the same band as the SV106, and the SV106 wins on the number of owners reporting long-term results. The Astromania wins on machining quality and the range of included mounting pieces.
Optically the two are close, since both are fully multi-coated achromats of the same focal length. If your priority is a focuser that feels precise and hardware that fits straight onto a Synta-pattern plate, this is the one.
50mm aperture
200mm focal length
1.17 degree field
40mm total focus range
1.3 lbs

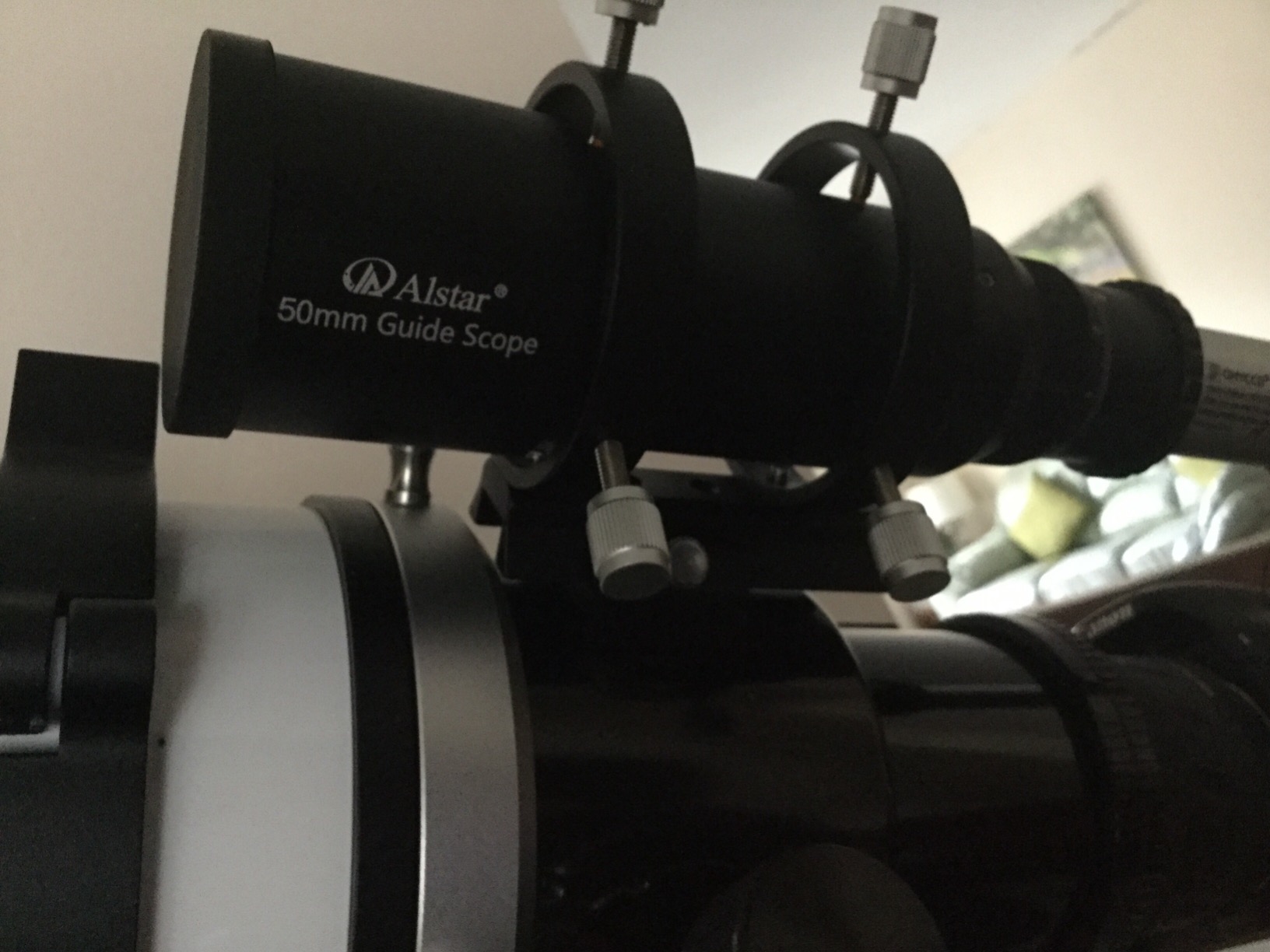

This is the tube I keep on the visual side of the rig. The double helical focuser delivers 40mm of total travel with 10mm of dedicated micro focus, which is more than most 50mm designs offer and means a camera and an eyepiece can both reach focus without swapping parts. The milled knurled rings keep the insert from rotating as you focus.
At 1.3 pounds and 200mm focal length it is a middle ground between the 30mm mini and the 60mm tubes, and the 50mm aperture gives a bigger, more forgiving field than the SV165 without the mass of the SV106. Fully multi-coated lenses give bright wide-field views, which matters more than most buyers expect when they use the same tube to acquire targets before switching to guiding.
The Synta-style dovetail plate, pipe clamps and adjustable dovetail weight are included, so installation went smoothly on a standard mount. I would note the evidence base honestly: the perfect five-star rating comes from six reviews only, so treat it as promising rather than proven, and check the drawtube interior for flocking if you are imaging through it.
Its real constraint is the 1.17 degree field, which is narrower than the 60mm multi-use tubes and gives you fewer candidate guide stars in bright skies. On a dark or rural site that does not matter much.
For a wide-field refractor or a mid-focal-length Newtonian, yes, and comfortably so. At roughly one fifth the imaging focal length of a 1000mm refractor it sits inside the normal one-third to one-half band, and small-pixel guide cameras handle the rest. Above 1500mm of imaging focal length it starts to feel short.
If your imaging scope is fast, the 50mm aperture also helps more than the focal length does, because a wide field of moderately sized stars is easier to lock onto than a narrow field of tiny ones.
It is not for people who want the largest possible evidence base before committing. Six reviews tells you the design is sound, not that it will still be perfectly focused in five years, and it is not the widest choice of guide stars on a moonlit suburban sky.
For a beginner building a first rig who wants one tube to both find and guide, the included hardware and the focusing range make this an easy place to start.
60mm aperture
1.5 degree field of view
1.25 inch double helical micro focuser
Adjustable dovetail weight
2.5 lbs

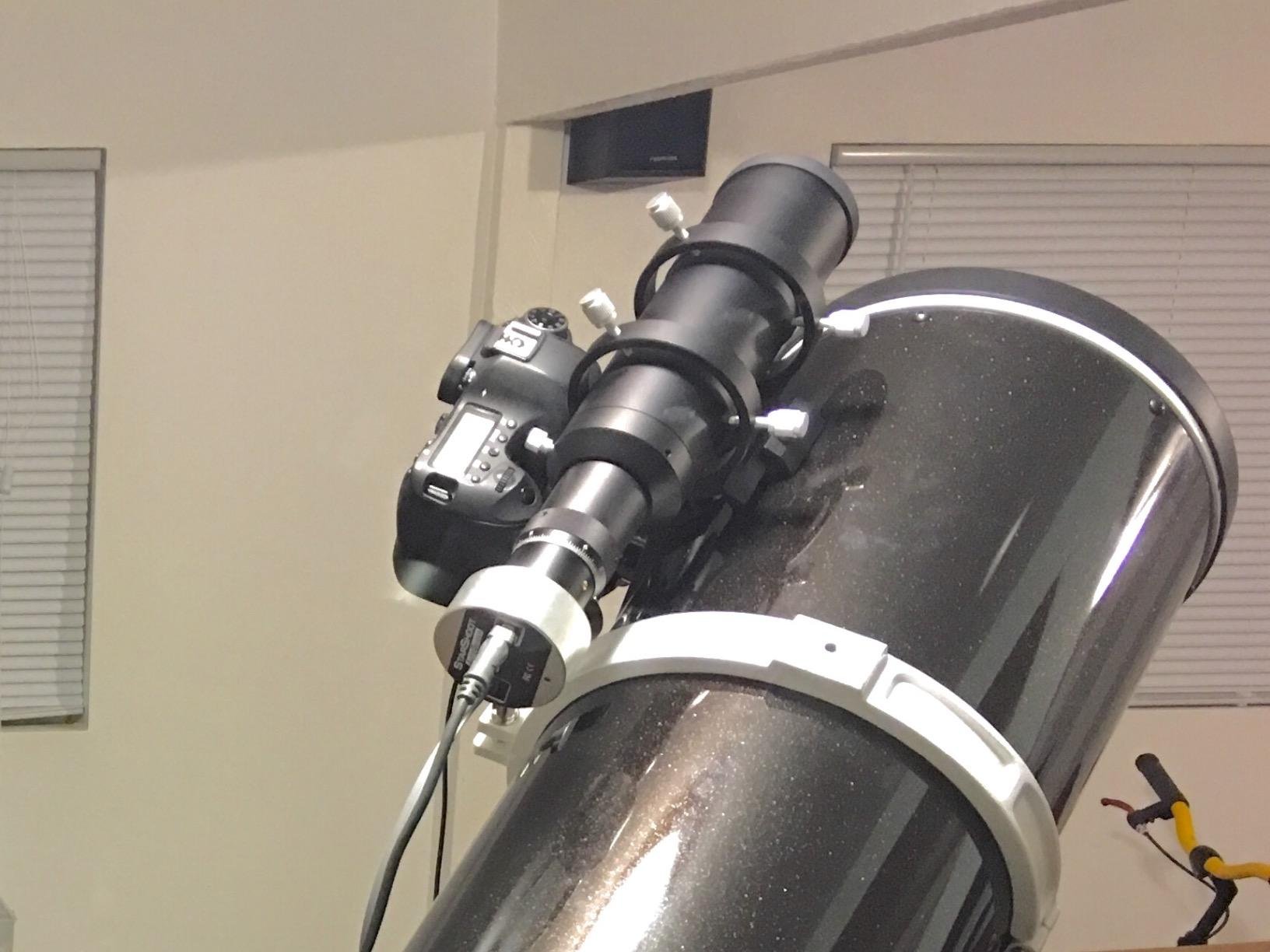

The reason this tube exists is the bracket. The included dovetail guide scope bracket installs on virtually any imaging telescope, and the adjustable-aim weight can be unhooked and stashed in an accessory case between uses, which keeps a single-rig owner from carrying dead weight. Very few other options in this list are that flexible about what they attach to.
Optically it behaves like the other 60mm achromats. The 1.5 degree field is wide enough that I always had several candidate guide stars, and the 1.25 inch double helical micro focuser gave a smooth, slow adjustment that was easier to land on a star than a plain drawtube.
At 2.5 pounds this is the second heaviest tube here, and that is the trade you make for the universal bracket. On a small equatorial head or a travel tracker it needed careful balancing, and on a mount with a modest payload rating I would choose the 30mm mini instead.
Very much so, and it is the quiet advantage of a 60mm aperture. A wide field means more candidate stars at lower altitude and in skies with some haze, which is where guiding sessions are usually lost. It also makes the double helical focuser easier to use, because you are refining an already-centred target rather than hunting for it.
The trade is field width against mass. You get more stars to choose from and you carry more weight on every mount that was already tight on balance.
The evidence here is thin. Two ratings, both five stars, confirm it functions as described and nothing more, so the perfect score is a sample size rather than a track record. The listing also publishes fewer specifications than the better documented 60mm alternatives, which makes independent cross-checking harder.
Judged on design rather than history, the universal bracket and the stowable weight are genuinely useful ideas, and the stated design point of imaging telescopes up to 1500mm focal length is sensible. Just balance the mount before you commit to it.
Work through these six criteria in order and the choice becomes obvious. Weight first, because it is the one constraint you cannot engineer around once the rig is assembled.
Weight against payload. Anything under about 800g suits a small equatorial mount or a travel tracker. Above that, check the mount payload and re-shim the balance point after mounting.
Focal length ratio. Aim for one-third to one-half of your imaging scope focal length, and keep a floor of about 150mm. Below 100mm you will be guessing at the right ratio.
Aperture. 30mm is enough for dark skies and modern small-pixel guide cameras. 50mm to 60mm gives you a wider field of guide stars, which is the difference between a good night and a wasted one under light pollution.
Focuser. A helical focuser holds a camera without rotating it and does not drift with temperature. A plain drawtube is cheaper but needs watching on long nights.
Mounting hardware. Check that rings, dovetail plate or a finder stalk are included and that the pattern matches your mount. Buy rings rather than a bracket if differential flexure is a concern.
Back focus. Confirm the scope reaches focus with your specific camera without an extension tube. Star diagonal use needs considerably more travel than camera use.
An off-axis guider has no second optical surface and no second focus point to flex, which makes it the better choice on long Schmidt-Cassegrains and on Newtonians where mirror alignment already limits performance. If your imaging focal length is above roughly 1500mm, or your mount is a light alt-az tracker, an off-axis guider is usually the answer.
A guide scope wins everywhere else. It is cheaper, simpler to align, works on almost any mount, and can double as a finder. If your imaging scope is a fast refractor under 1000mm, that simplicity is worth more than the last fraction of a percent in total error.
A small achromat refractor between 30mm and 60mm aperture paired with a monochrome guide camera is the best autoguider setup for most telescopes. The SVBONY SV165 at 30mm suits light mounts, the SV106 at 60mm gives the widest choice of guide stars, and a modern small-pixel camera is all that is required for reliable sub-arcsecond guiding.
Choose on four numbers in order: weight against your mount payload, focal length at roughly one-third to one-half of the imaging scope, aperture between 30mm and 60mm, and back focus travel that reaches your camera without an extension tube. Add a helical focuser to stop field rotation, and confirm the included rings or dovetail plate match your mount before ordering.
Roughly one-third to one-half the focal length of your imaging telescope, with a practical floor of about 150mm. For a 1000mm refractor that means a 300mm to 500mm guide scope. Modern sub-2-micron guide cameras have relaxed the old rules, so a shorter guide scope still guides well if the optics are clean.
A guiding ratio near one-third, expressed as guide scope focal length divided by imaging scope focal length, is the classic target. With modern small-pixel guide cameras, ratios closer to one-quarter still produce excellent results. Below about one-sixth the guiding image scale becomes so fine that noise and seeing start to dominate.
Run a dew heater band around the tube just behind the objective cell and slightly below ambient temperature, rather than heating the lens directly. Fogging usually appears late in a session as the objective falls below the dew point, so a band on a USB power supply is usually enough for a portable rig.
After living with all six, the SVBONY SV165 is the one I recommend most often. At 342g it barely registers on a mount, the 2.86 degree field finds guide stars easily, and the 45mm back focus means no adapter shopping. It is the safest first choice for a star tracker, a travel rig, or any imaging train under roughly 1000mm.
Move up to the SV106 when you want more aperture and a rotation-free helical focuser, and to the EvoGuide 50DX when the sharpness of the guide star is worth paying for. The Astromania 60mm is the pick for rigid mounting hardware, the Alstar 50mm suits a single tube that both finds and guides, and the MEOPTEX 60mm is the one to choose when the bracket has to fit whatever imaging scope you already own.
Whichever you pick, mount it rigidly, keep it balanced, and dew-heat the objective. Those three habits do more for your final images than any aperture upgrade in 2026.
