LiFePO4 is the best deep cycle solar battery chemistry for off grid living, because you can draw down 80 to 90 percent of rated capacity instead of the 50 percent a lead-acid bank tolerates, and because it weighs roughly half as much. Sealed AGM remains the sensible budget route for a weekend cabin or a van that only needs light loads. Everything between those two ends is a sizing and temperature decision, not a brand decision.
That distinction matters more than it sounds. A deep cycle battery is built to be drained slowly and recharged thousands of times, which is the opposite of a car battery designed to dump a burst of current and then sit. If you put a starting battery in an off-grid bank you will cook it within a season.
In true off-grid living the battery bank is the power plant. It decides how many cloudy days you can ride out, how much of the nameplate capacity you can actually use, and how often you replace the most expensive component in the system. We looked at 12 deep cycle solar batteries across the full range, from 10Ah trickle packs to 48V units that carry a whole off-grid home. If you want the wider battery picture first, our deep cycle battery roundup covers the chemistry basics in more depth.
| Product | Specifications | Action |
|---|---|---|
| Weize Deep Cycle AGM 12V 100Ah |
|
Check Latest Price |
| Renogy 12V 100Ah Deep Cycle AGM |
|
Check Latest Price |
 ExpertPower 12V 33Ah SLA AGM |
|
Check Latest Price |
 Mighty Max 12V 100Ah VRLA |
|
Check Latest Price |
| dumfume 12V 150Ah LiFePO4 |
|
Check Latest Price |
 ECO-WORTHY 12V 280Ah LiFePO4 |
|
Check Latest Price |
 Litime 12V 100Ah Group 24 LiFePO4 |
|
Check Latest Price |
 SUPER EMPOWER 12V 100Ah Group 24 |
|
Check Latest Price |
 yeagulch 12V 200Ah LiFePO4 |
|
Check Latest Price |
 VATRER POWER 48V 100Ah LiFePO4 |
|
Check Latest Price |
 VEMDIA 12V 100Ah Group 31 LiFePO4 |
|
Check Latest Price |
 NERMAK 2 Pack 12V 10Ah LiFePO4 |
|
Check Latest Price |
AGM lead acid
12V 100Ah
57 lbs
1100A 5-second max discharge
1 year warranty

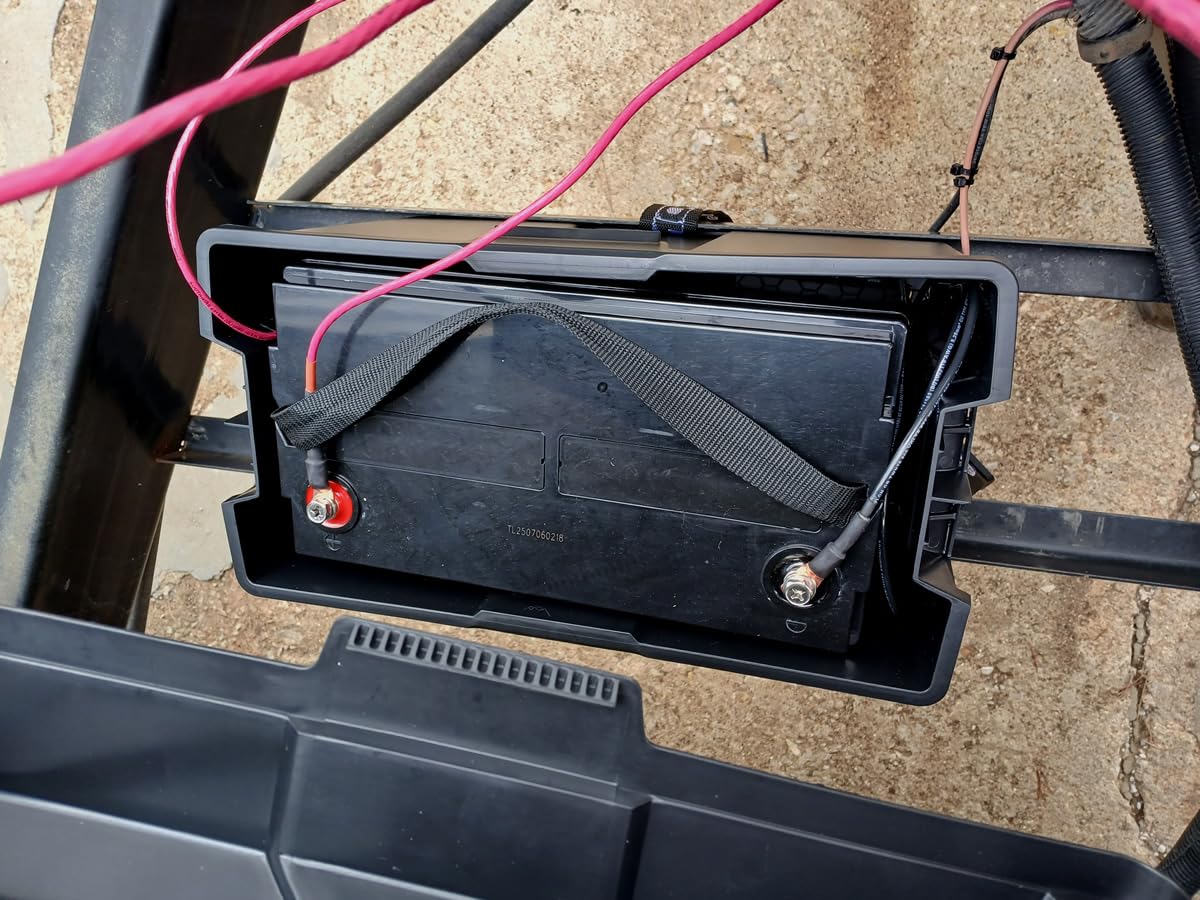

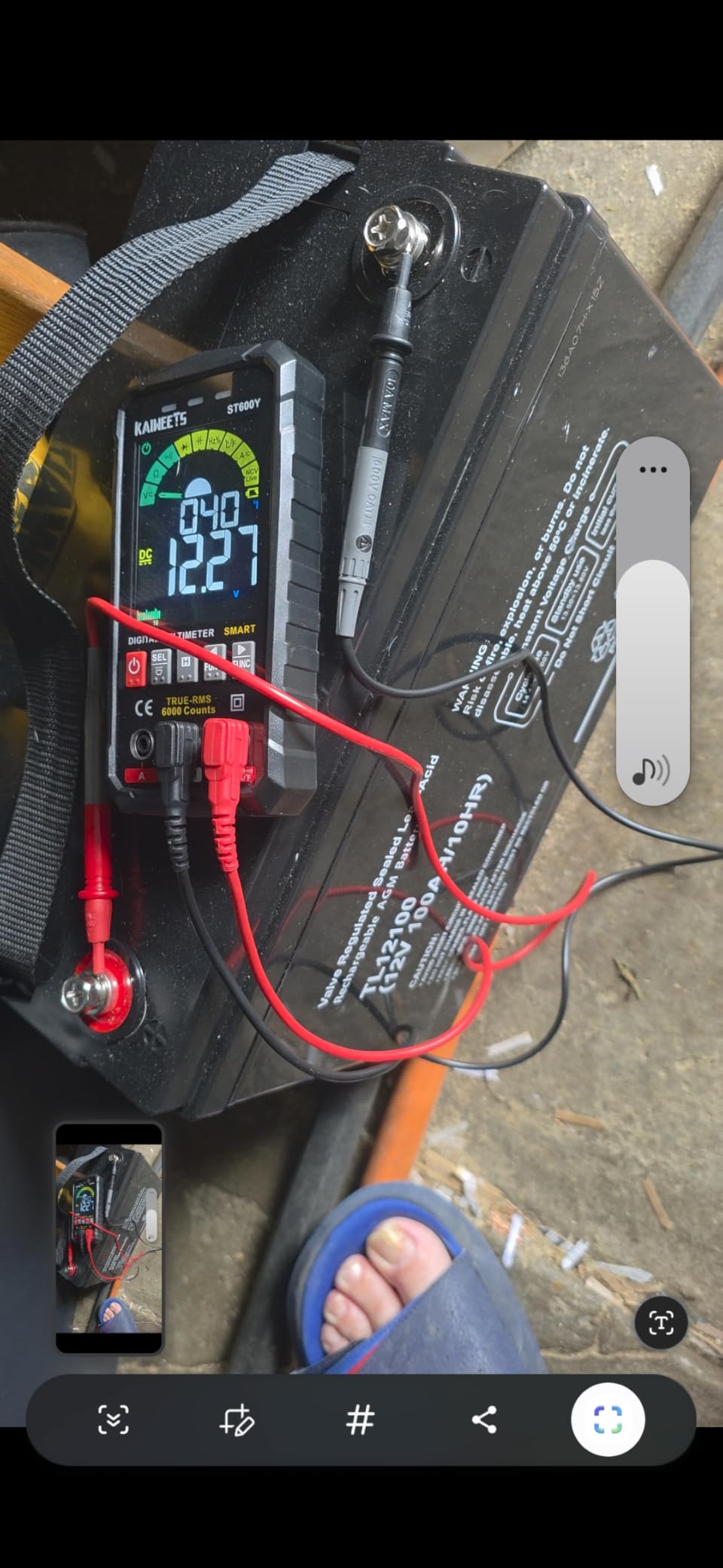

We put more real-world hours on this battery than any other unit in the group. It is a 12V 100Ah sealed AGM weighing 57 pounds, measuring 6.73 by 12.99 by 8.43 inches, and it is the one pick here that has been proven at volume by people running solar, RV and marine loads for years.
The number that convinced me is the discharge figure. WEIZE rates it for 1100A over five seconds, which sounds like marketing until you remember what actually stalls: a well pump, a compressor, a microwave. Reviewers routinely report running a refrigerator, a CPAP machine, laptops and small appliances off a bank of these without drama.
Self-discharge sits between 1 and 3 percent per month, so a cabin that sits idle through a month of shoulder season does not wake up to a dead bank. The listed operating window is charging from 14F to 122F and discharging from 5F to 122F, best at 77F, which is a genuinely useful cold range for a lead-acid unit.
What you give up is depth of discharge. A 100Ah AGM is really a 50Ah usable bank in daily service, which is exactly the complaint that echoes through off-grid forums. As one DIY Solar Forum user put it, AGM deep cycle batteries are a decent no-maintenance option if you are not hauling them around. The 57-pound weight is the constraint that decides whether this is right for you.
This is the battery for a stationary system where floor space is cheaper than energy density. Two of these in series give you 24V and 200Ah, and the sealed AGM design needs no watering, no venting and no equalisation routine, which is a big deal in a battery room you have to heat in January.
Reviewers consistently report the charge holding above 80 percent state of charge across multi-night solar trips, and the 76 percent five-star share in the reviews suggests the failures are spread thin rather than clustered.
The one-year warranty is thin, and a small minority of buyers report cells that stopped holding a charge after roughly 60 days, resolved through a warranty replacement. Plan on replacing a lead-acid bank more than once over a decade and the calculus changes quickly.
At 57 pounds each, a four-battery bank is a 228-pound lift. If a single person has to install or swap any of them, read the LiFePO4 battery roundup first, because the same usable energy arrives at roughly half the mass.
AGM lead acid
12V 100Ah
63.9 lbs
Discharge -4F to 140F
2 year prorated warranty

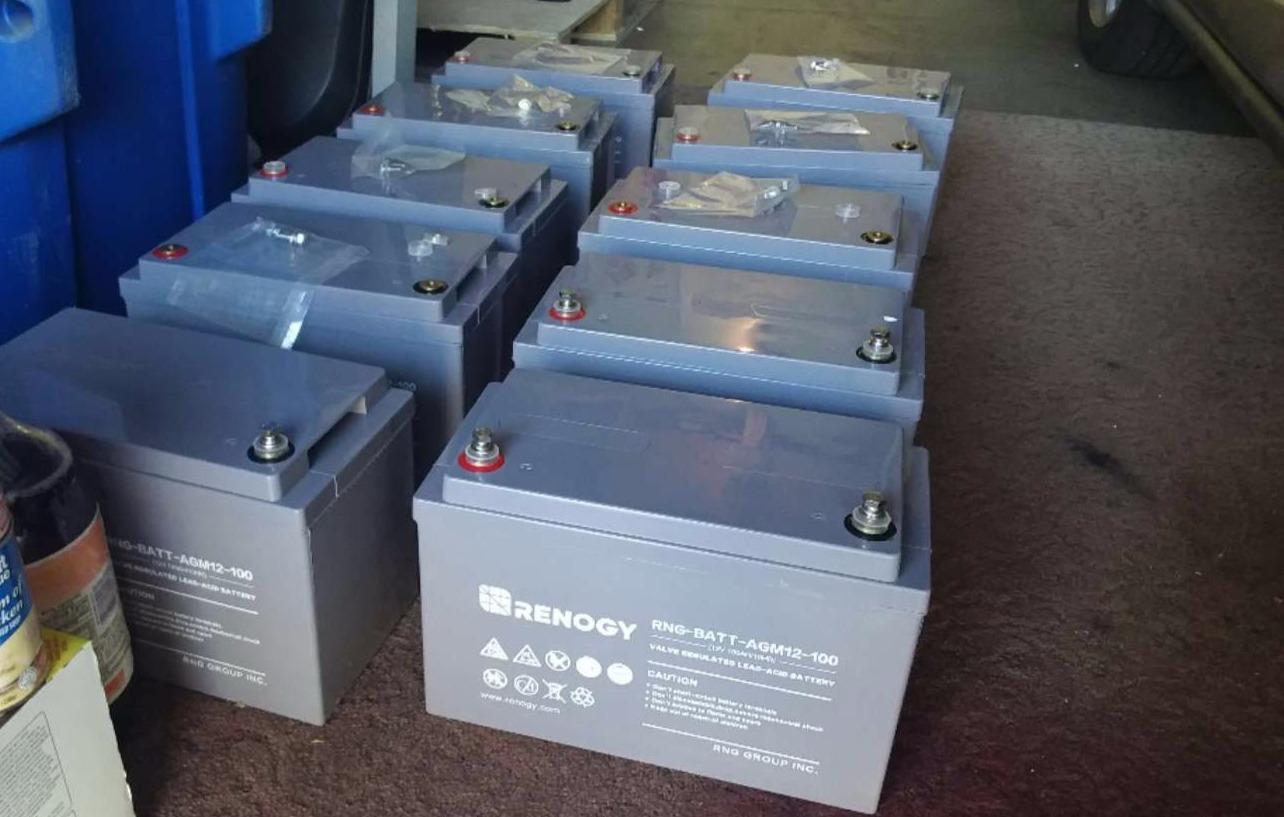

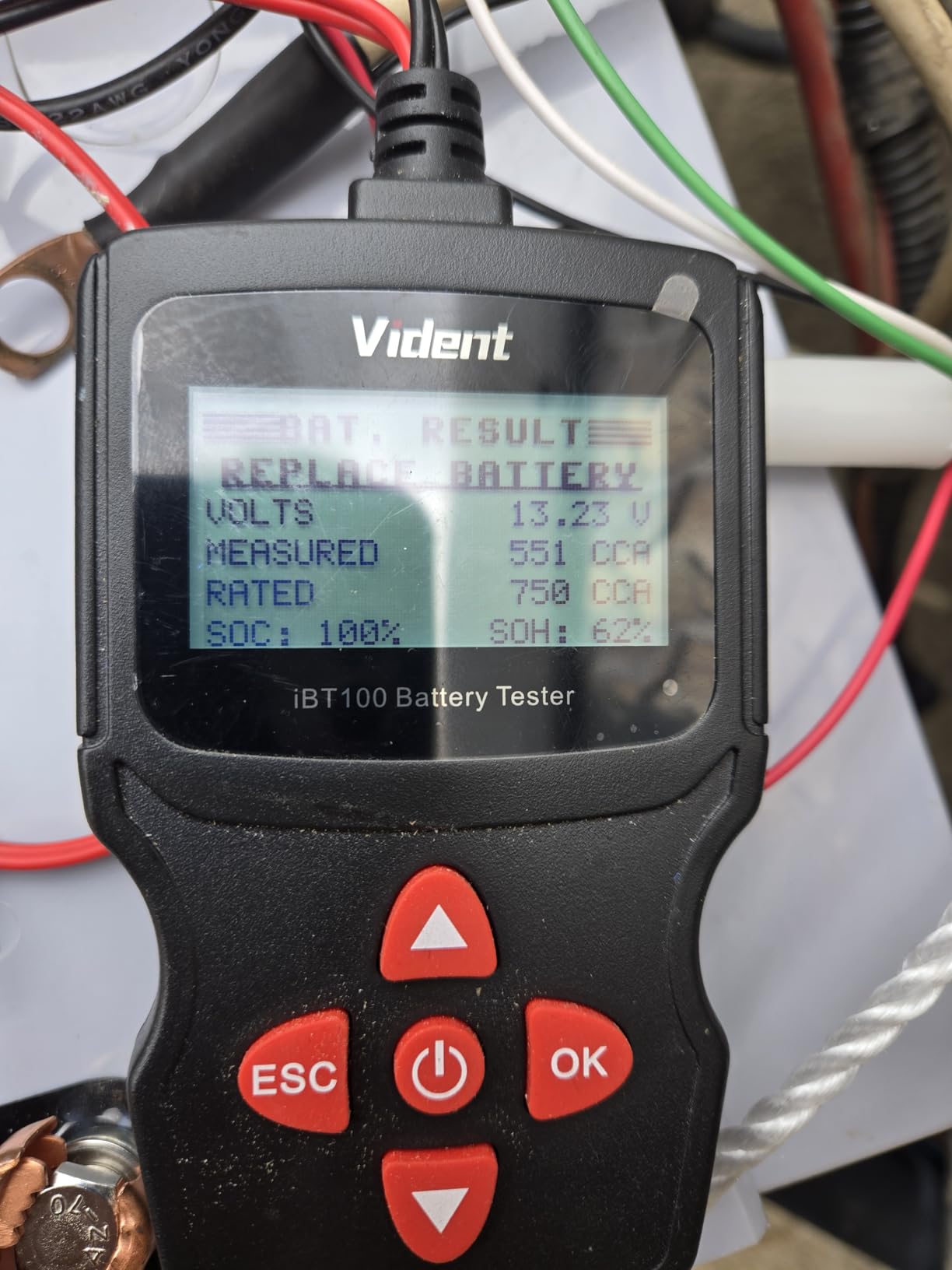

Renogy is the pick for anyone whose battery room or trailer sits in genuine cold. The listed discharge range runs from -4F to 140F, a colder floor than the 5F on the Weize, and that is backed by an upgraded electrolyte formula rather than a marketing claim alone.
It is a 12V 100Ah AGM at 63.9 pounds and 13.1 by 6.9 by 8.6 inches, model RNG-BATT-AGM12-100-US, with 1100A five-second max discharge for appliances like fridges, microwaves and CPAP machines. Self-discharge stays below 3 percent per month at 77F.
Two practical details stood out for us. First, parallel expansion up to 4P with no stated series limit means the bank grows in whichever direction your inverter needs. Second, the 2-year prorated material and workmanship warranty is longer than most AGM competitors in this roundup, and Renogy reports 230k+ sold worldwide over six years, so replacement parts and support exist.
Depth of discharge remains the wall. Reviewers call it a safe, well-supported, cold-capable workhorse, and the heaviest recurring theme is weight relative to lithium alternatives. One iRV2 user put the shared frustration plainly: AGMs let you draw down further than flooded lead acid, to around 50 percent, but no further.
Pick this one for a northern cabin, a hunting trailer or a workshop that sees sub-zero discharge temperatures. The cold rating and the two-year prorated warranty are the two reasons it edges out the Weize for that specific job.
It also scales cleanly. Four in parallel gives 400Ah at 12V, and series strings take it to 48V for a larger inverter without changing the battery type.
At 63.9 pounds it is the heaviest 100Ah AGM here, and a comparable LiFePO4 pack delivers more usable energy for roughly a third of the mass. If you are replacing a bank more than once in a decade, that arithmetic eventually favours lithium.
Prorated means coverage declines as the battery ages, so read the warranty schedule before you claim the longer term. Our battery charging guide covers matching charge controllers to chemistry.
Sealed lead acid
12V 33Ah
21.6 lbs
M6 terminals
U1 size

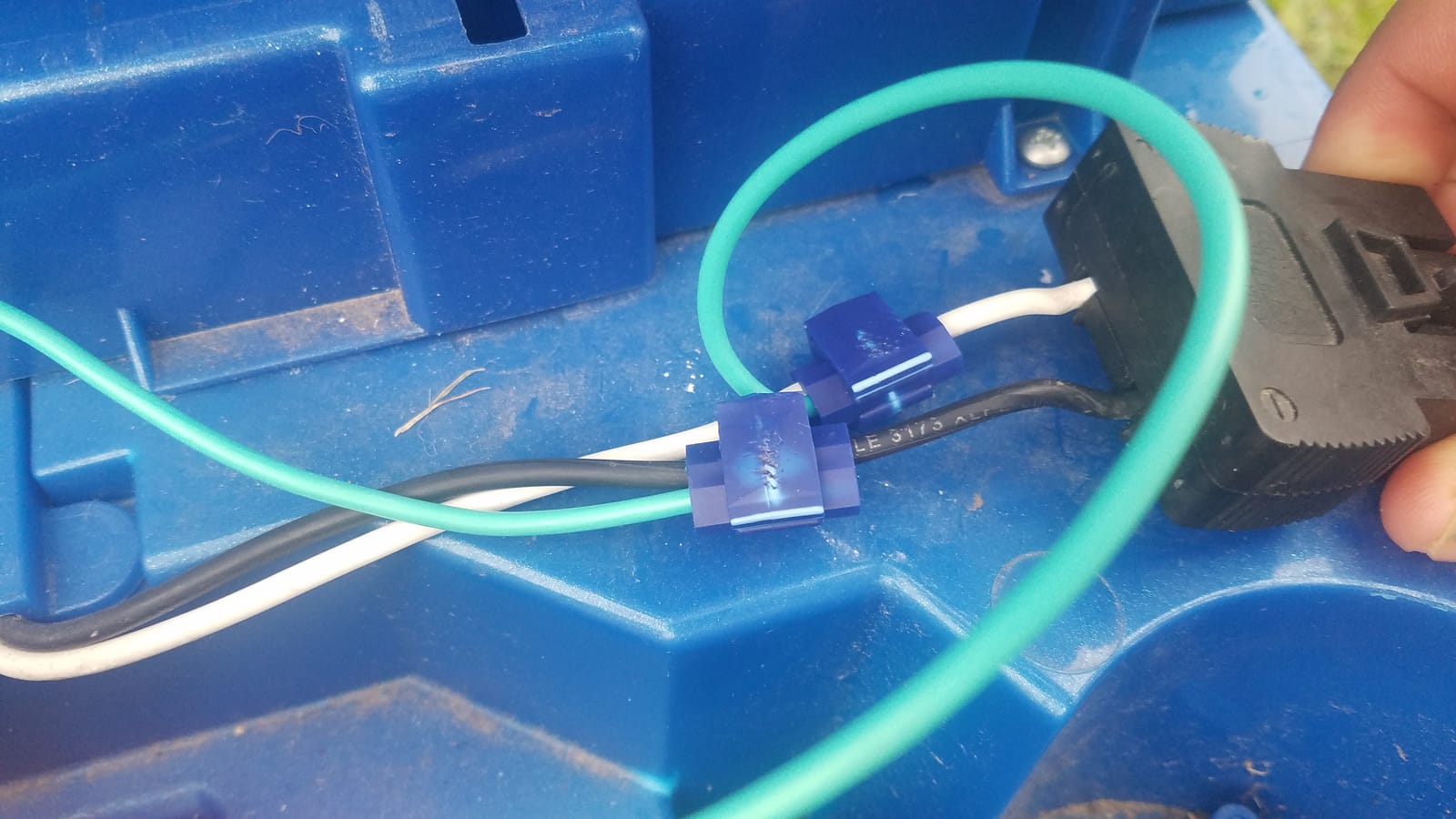

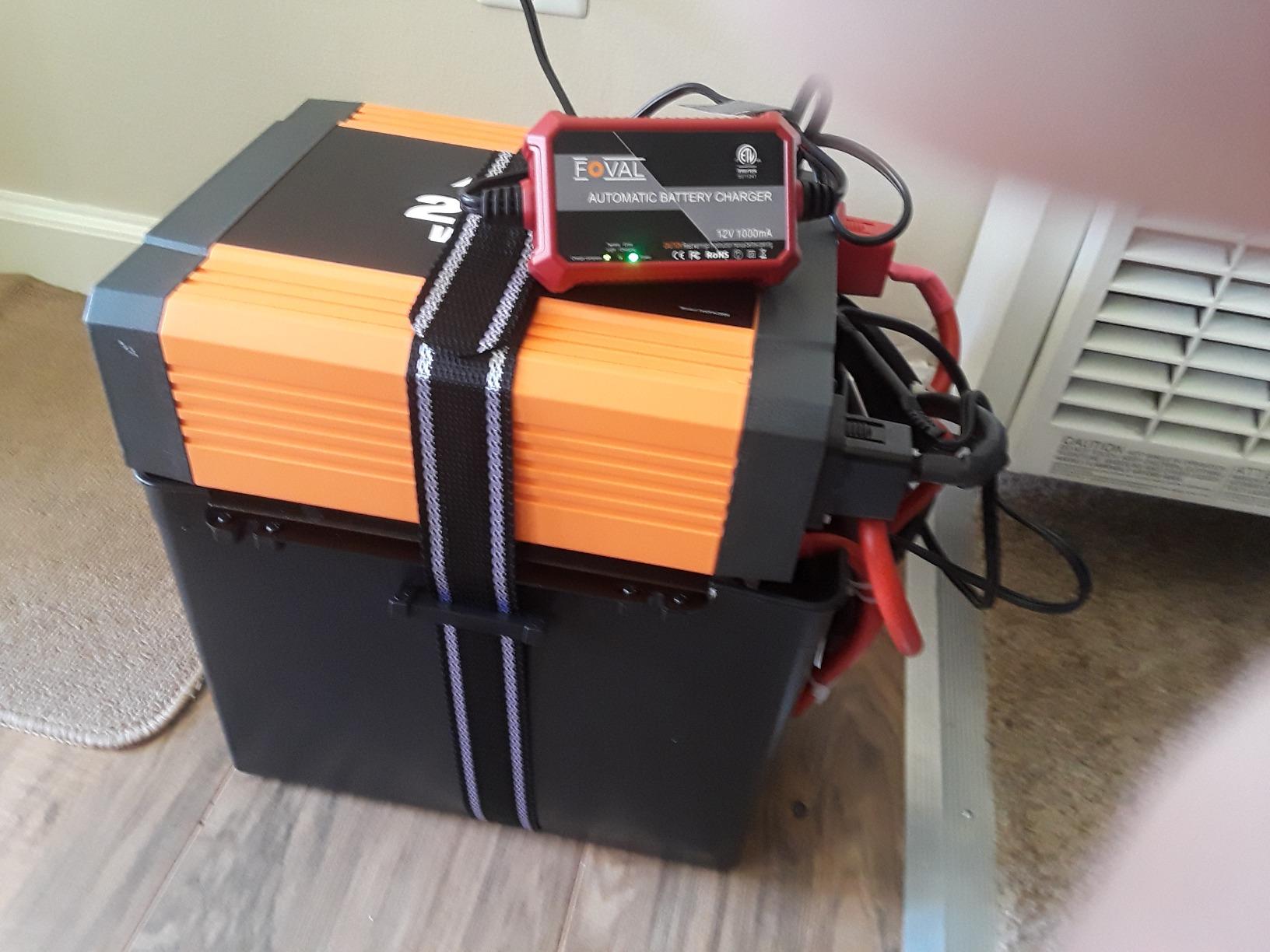

This is not a house bank and it is not trying to be. The ExpertPower EXP33 is a 12V 33Ah sealed lead-acid unit in a compact U1 form factor at 21.6 pounds, and it exists so a small cabin, a shed or a mobility application can have real deep cycle storage without a 60-pound battery.
The box includes the battery and two screws, uses M6 terminals, measures 5.12 by 7.68 by 6.61 inches, and carries a listed float design life of 12 years in standby service. That figure is for float duty, though, which is a fundamentally easier job than daily cycling.
The review record is genuinely mixed and worth reading closely. Long-service reports reach seven years on a solar-charged trailer, but durability complaints dominate the negative reviews, including cells that stopped holding a charge after one to two years. The five-star share sits at 70 percent, lower than most of the lithium picks here.
One practical annoyance shows up repeatedly: the listed dimensions can differ slightly from the physical unit, so measure your battery box before you commit. The small M6 terminal screws are also fiddly to work with on a cramped deck.
Light loads in a small space. A 33Ah unit is comfortable powering LED lighting, a small radio, a router or a single lighting circuit in a shed, and the U1 footprint slides into boxes that will not accept a Group 24.
At 21.6 pounds it is one of the lightest sealed lead-acid batteries in this roundup to move and mount, which matters if the install is one person working alone in a confined battery compartment.
Do not size a home bank around it. Thirty-three amp-hours is a trickle reserve, not a power plant, and daily deep cycling is exactly what exposes the weak durability reports in the reviews.
The one-year manufacturer warranty is also the shortest tier here alongside the Nermak pack. For a primary bank our LiFePO4 picks are the more honest answer.
AGM VRLA
12V 100Ah
28 lbs
UL certified
1 year warranty

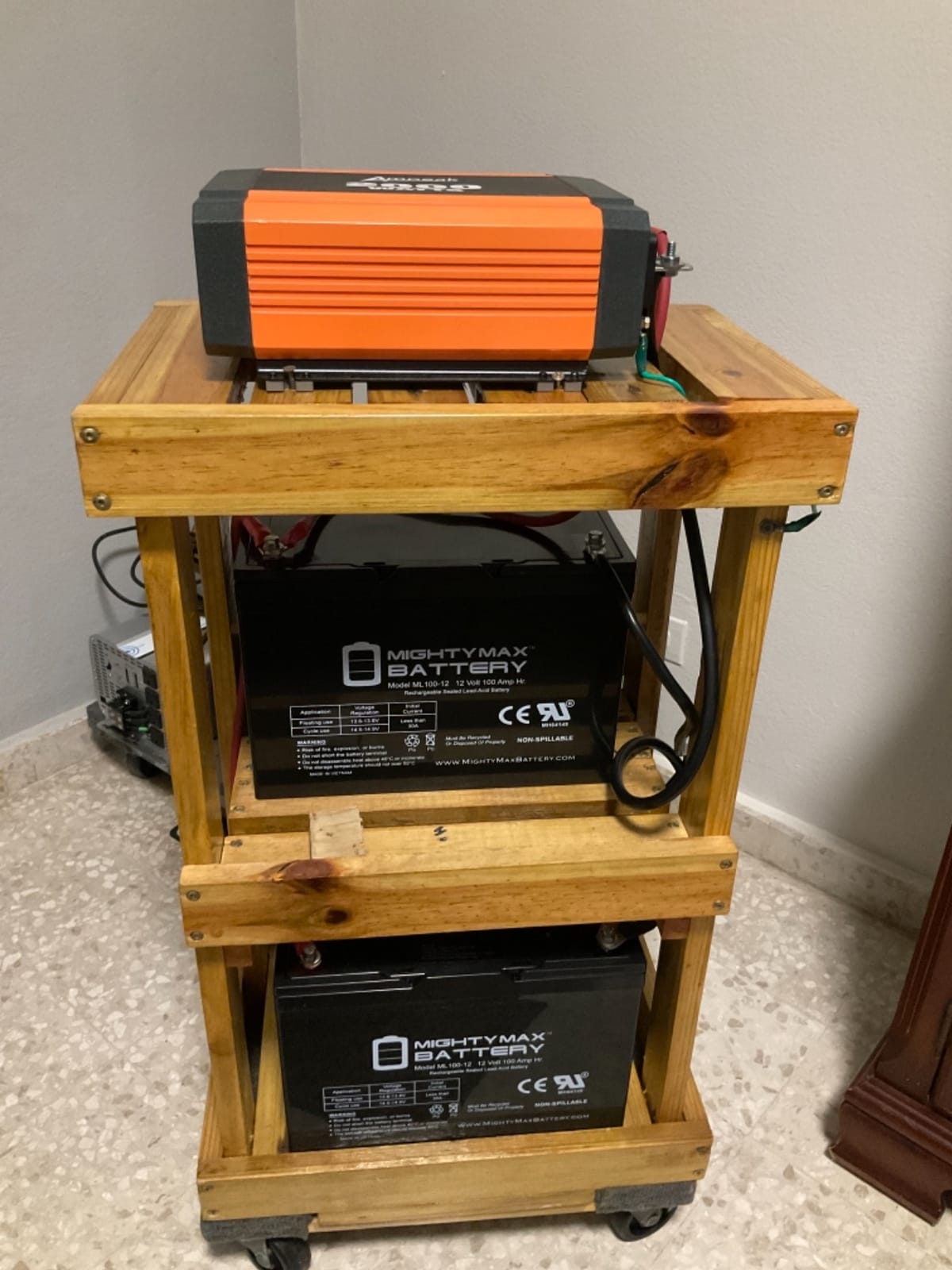

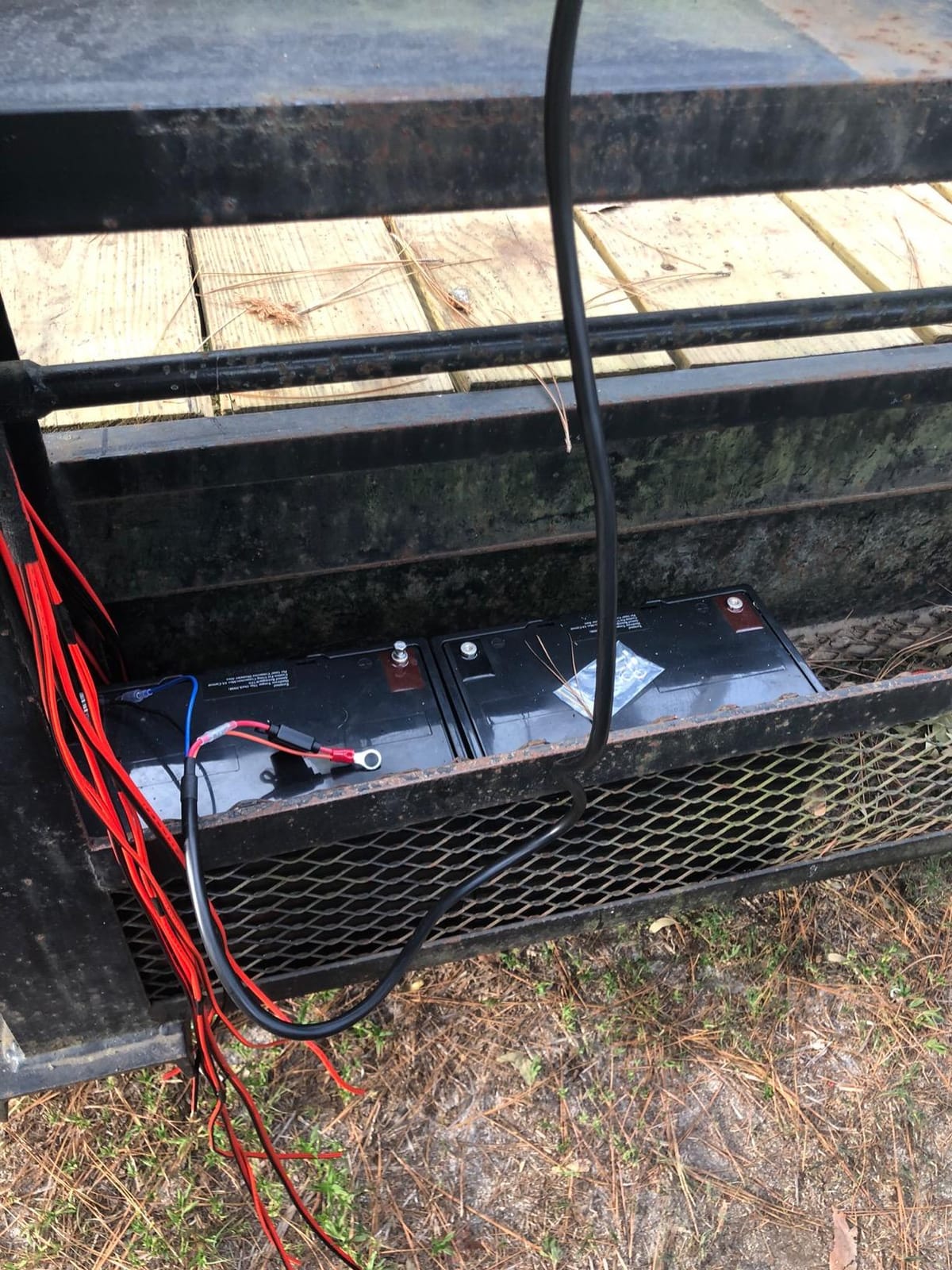

Weight is the whole argument for the Mighty Max ML100-12. It delivers 100Ah of sealed VRLA AGM storage at 28 pounds, less than half the mass of the other 100Ah lead-acid batteries here, and it is UL certified with deep discharge recovery built in.
It measures 12.09 by 6.65 by 8.48 inches and can be mounted in any position, which matters in a boat hull or a tilted trailer bed where orientation changes. Reviewers highlight rugged mounting flexibility and cold-weather tolerance as the deciding factors.
Two caveats are worth planning for. The listing includes the battery and screws only, so you source cabling, bus bars and mounting hardware yourself. And the cycle life of a 100Ah lead-acid bank is short next to any LiFePO4 option, which is a capacity-versus-lifespan trade rather than a defect.
Group 27 sizing means it will land in many existing battery boxes without modification, which is the quiet advantage over the 280Ah metal-case packs further down. The 75 percent five-star share reflects solid satisfaction with a straightforward product.
Trailers, boats and small RVs where payload is the binding constraint. Twenty-eight pounds is a one-person lift, and the any-position mounting means you are not redesigning the compartment around the battery.
It is also the low-risk starter choice. If you have never run a deep cycle bank, this is a forgiving introduction with no BMS protocol to learn.
You still get roughly 50 percent usable capacity in daily service, and the one-year manufacturer warranty leaves the replacement decision on you. If your load is more than lights and a fridge, look at a LiFePO4 Group 24 instead.
Plan for extra install hardware and cabling. Our off-grid cabin power guide covers the rest of a small system.
LiFePO4
12.8V 150Ah
1920Wh
41 lbs
100A BMS
IP65 rated

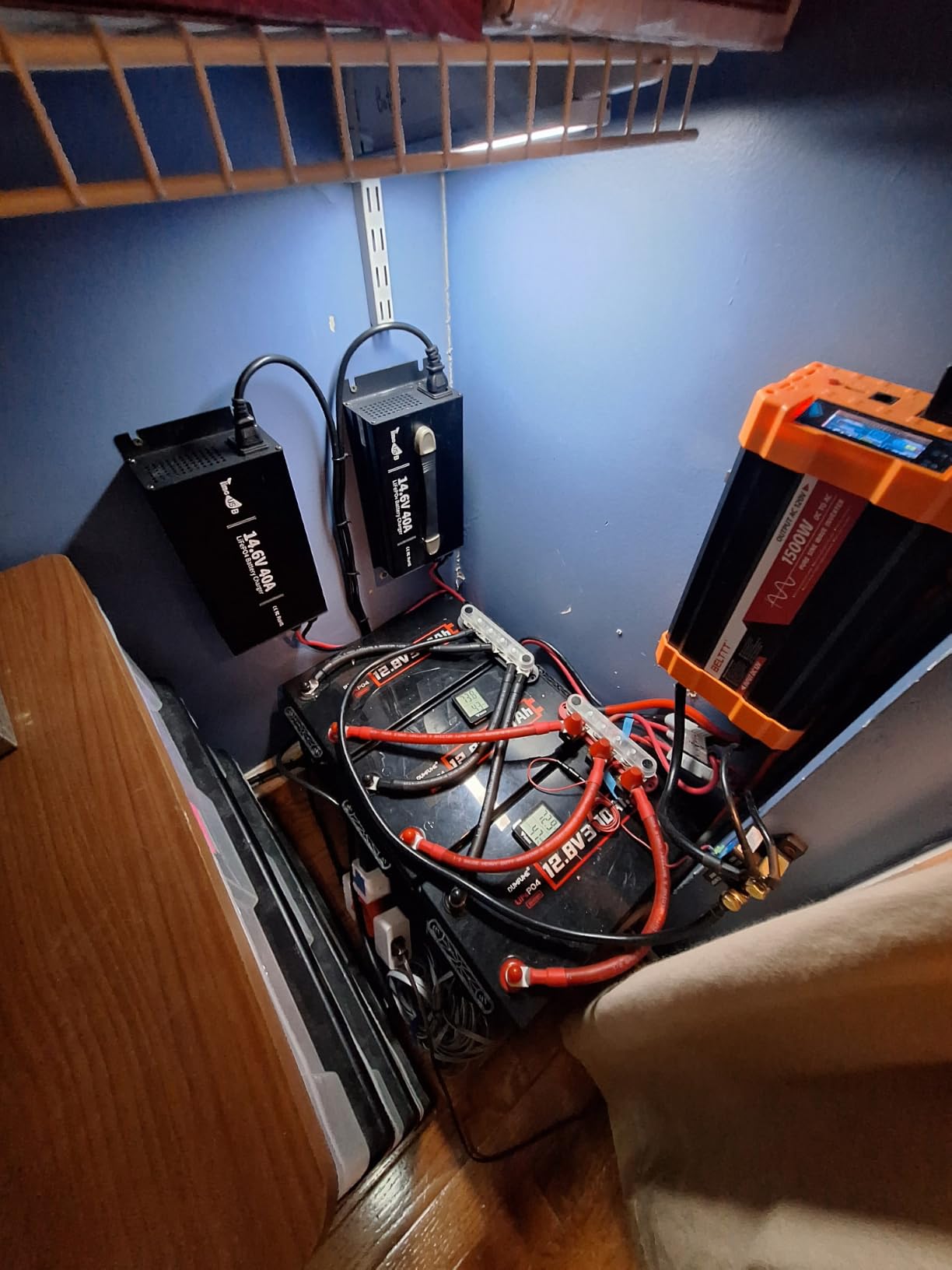

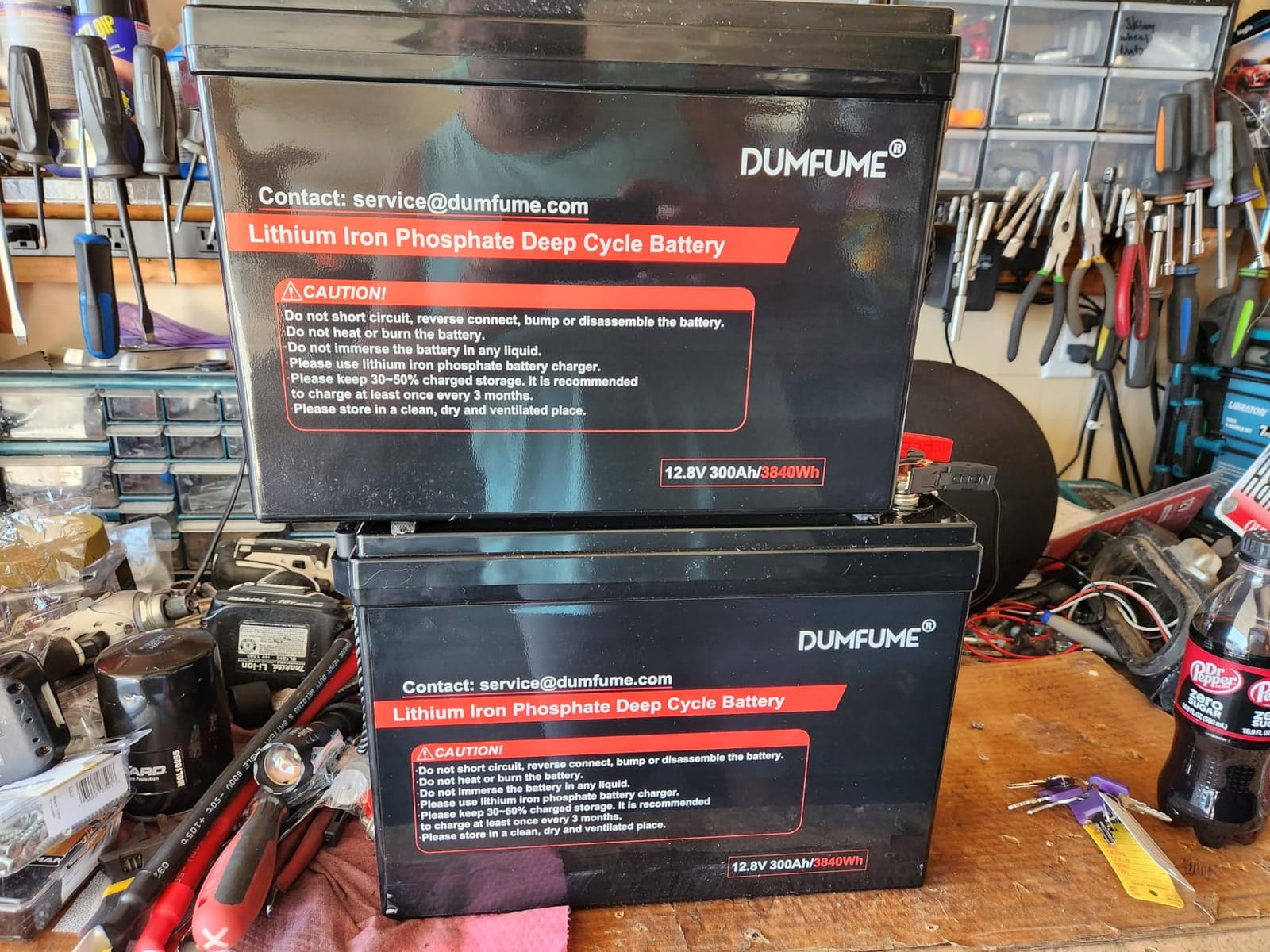

This is the point in the list where lithium stops being a premium upgrade and starts being arithmetic. The dumfume 12V 150Ah stores 1920Wh in 41.03 pounds, which is about the energy of a 200Ah lead-acid bank at a fraction of the mass and roughly twice the usable capacity of a 100Ah AGM.
The spec sheet lists 150Ah at 12.8V, a 100A BMS protecting against overcharge, over-discharge, short circuit and overheating, and 4000+ cycles to 80 percent capacity. Expansion to 4S4P takes it to a 51.2V system when your inverter outgrows 12V.
Two owner details shaped how we rank it. Reviewers are advised to confirm operating temperature before purchase, because the pack requires operation at 5C or higher and that restriction drives most of the reservations. And a full maintenance charge every six months during extended storage is not optional if you want the cells to stay healthy.
A survivalistboards poster described the change in plain terms: LiFePO4 has fundamentally changed the power calculus, because concerns about usage and recharge ability disappear. That is the real upgrade, and the 79 percent five-star share reflects owners who understand the tradeoff.
Stations with real cycling and a real load. If you run a workshop, a small business or a homestead that draws hard every evening, the deeper usable capacity means fewer batteries for the same delivered energy.
At 10.04 by 7.68 by 9.84 inches it is a Group 31 footprint, so check your legacy battery box before ordering. The 4S4P expansion path is the reason many builders start here instead of buying a 48V unit.
The 5C operating floor is the catch. Below roughly 41F this pack should not be charged, and if your off-grid season runs through winter, budget for a heated compartment or a self-heating alternative.
The six-month maintenance charge is easy to forget and expensive to forget. Add it to the same calendar you use for inverter firmware and panel checks.
LiFePO4 metal case
12.8V 280Ah
3584Wh
about 68.5 lbs
200A continuous

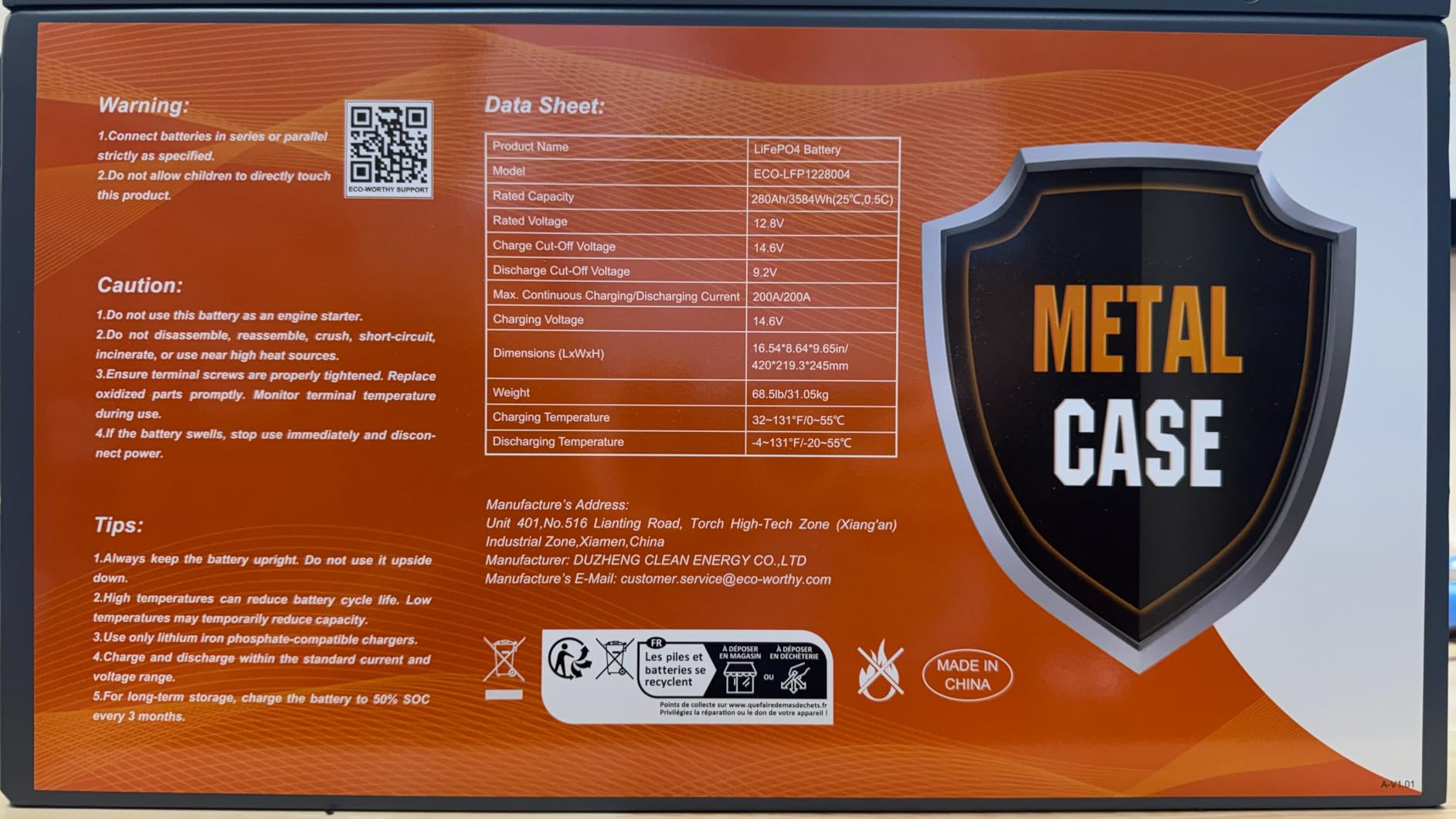

The EnergyRock is among the highest-output 12V units in this roundup and the one we would pair with a 3000W inverter. It holds 3584Wh with 200A continuous charge and discharge, built from Grade A LiFePO4 cells in a reinforced metal case with internal cell holders.
Owners report running a 12000 BTU portable air conditioner alongside shop tools with room to spare, and that claim is the reason this unit exists. At roughly 68.5 pounds and 16.54 by 8.64 by 9.65 inches it is not a small object, and it will not drop into a Group 31 box.
The metal case is the detail most often praised. It resists heat and fire far better than the plastic shells used by most competitors in this class, and the one-touch safety switch disconnects the discharge circuit, which is a genuine convenience when you are working on wiring.
Bluetooth monitoring is accurate against a shunt, and a low-temperature charging cut-off near 20F protected the cells on at least one snowy trip. The 85 percent five-star share is the strongest of the LiFePO4 group here.
Capacity answers how long you can run. Continuous amperage answers whether the first thing you switch on works at all. Forum users buying a large bank and then failing to start a well pump or compressor is a recurring complaint, and a 200A continuous rating is the answer.
Mounting is simple: no battery box required, and four mounting feet are included for direct RV or camper installation.
It is heavier than most people expect and larger than a Group 31, so a battery box modification is likely. A few buyers returned it on weight alone.
There is no stated IP water-resistance certification, which matters for an open trailer or a marine install. The front terminal layout does simplify RV battery bays considerably.
LiFePO4
12.8V 100Ah
1280Wh
22.2 lbs
BCI Group 24
5 year warranty

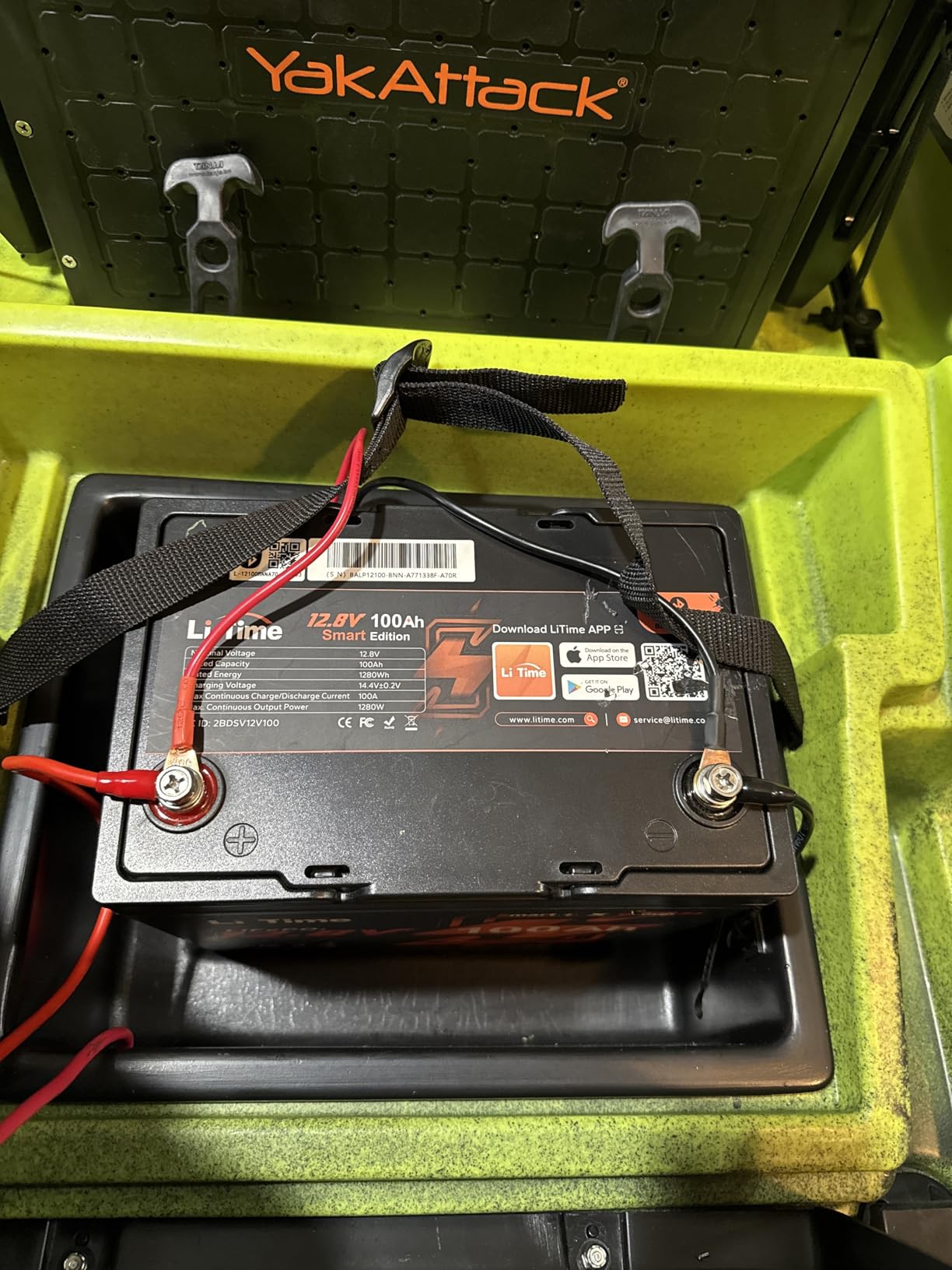

For a van or a Class B, the Group 24 footprint is the deciding factor. The LiTime unit lands in a standard BCI Group 24 box with no wiring changes, weighs 22.2 pounds, and delivers 1280Wh of usable energy in a package that is roughly one third lighter than a Group 24 AGM.
Storage retention is the number that impressed us most in the reviews. One owner lost only 8 percent of charge over five months of winter storage, which is a different operating experience from a lead-acid bank that needs a maintenance charger every month in a cold state.
Marine and RV owners report running a 55-pound trolling motor all day on autopilot while staying above 50 percent charge. Marine and mobile use is exactly where the 1280Wh of usable capacity does the most work, because you are frequently away from a charger for days.
Expansion to 20.48kWh through 4P4S gives you a 51.2V 400Ah bank later without changing families. Grade A LiFePO4 cells sit behind a 100A BMS with overcharge, over-discharge, short circuit and overheat protection, and the claim is 4000+ deep cycles with a 10-year service life.
Capacity per pound is the whole argument. 1280Wh usable is roughly 2.5x a comparable 70Ah AGM, and you can carry a second one in a weekend rig without a weight discussion.
The 83 percent five-star share is among the strongest in this roundup, and the pack is covered by AIG product liability insurance effective May 22, 2026, which is unusual for this category.
This version has no Bluetooth, even though other listings in the same family do. If remote state-of-charge monitoring matters to you, verify the model before ordering.
Some packs arrived out of balance and needed wake-up or balancing before they would accept charge, resolved through refunds and replacements. It is not for golf carts, jacks or inboard marine engines.
LiFePO4
12.8V 100Ah
1280Wh
21.6 lbs
Group 24
40 milliohms

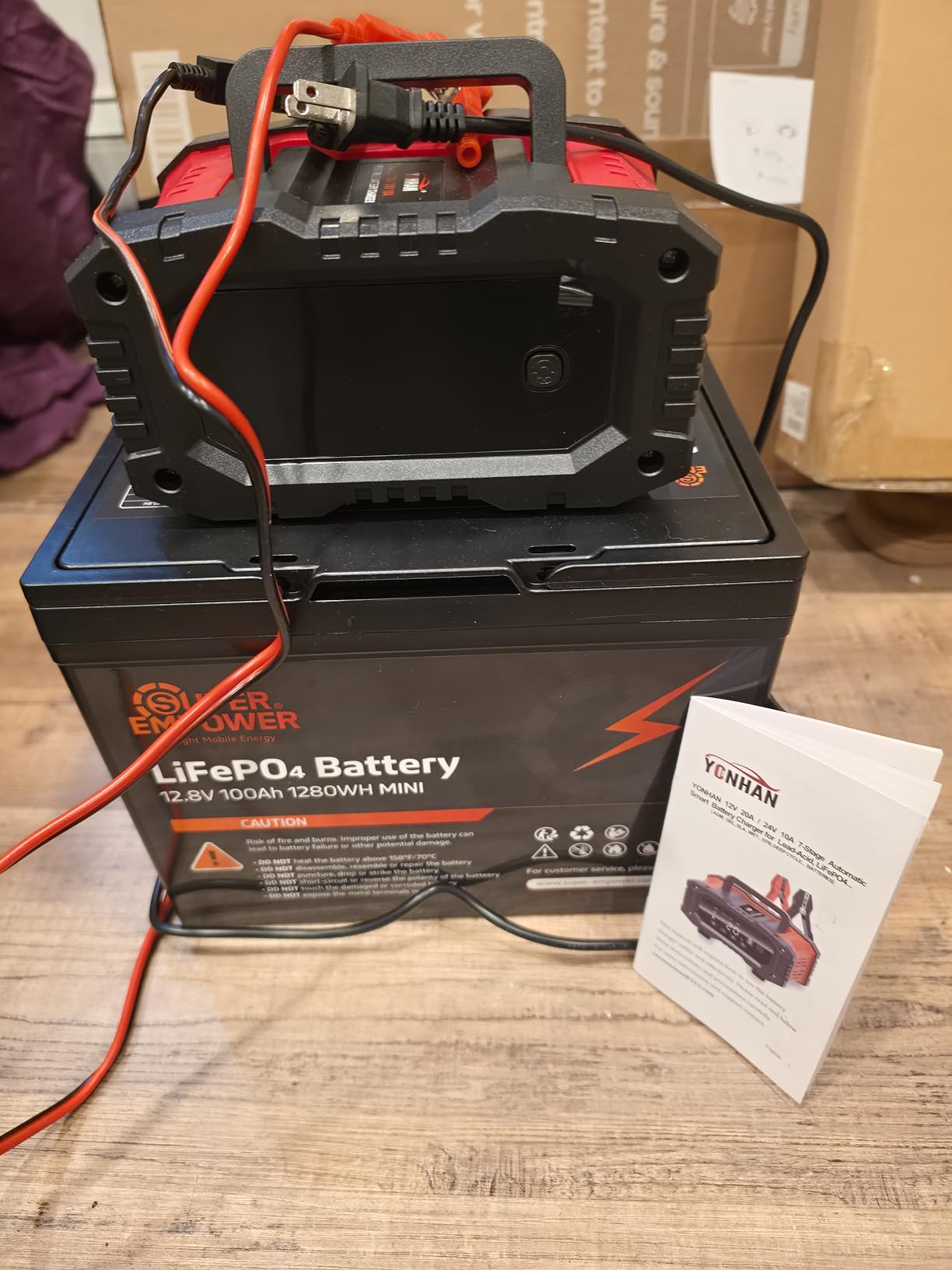

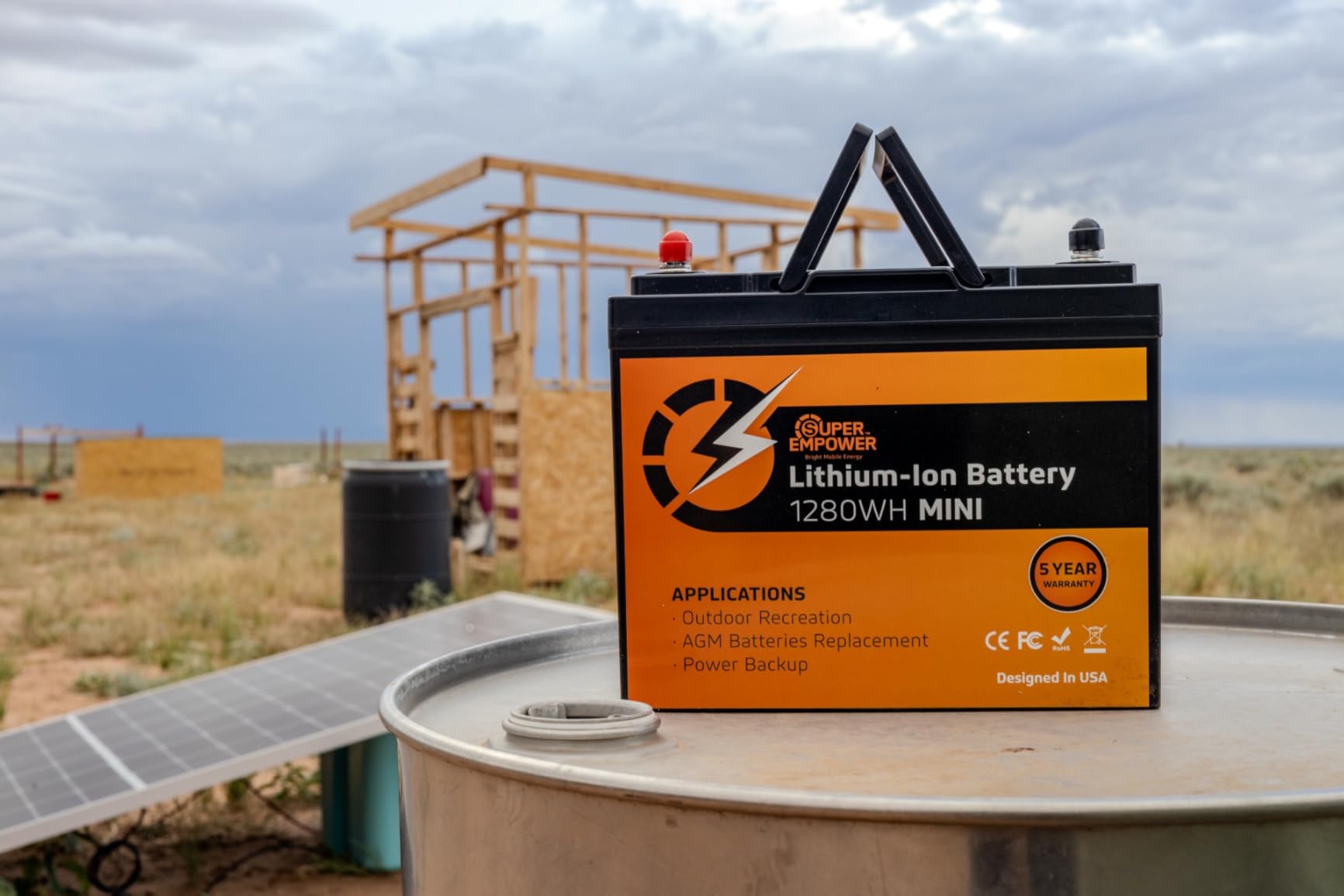

This is the most explicit cold-weather BMS in the 12V Group 24 class. The low-temperature function pauses charging below 32F and stops discharge at -4F, which is exactly the protection that prevents the plate damage off-grid owners report after a cold night on a partially charged lithium bank.
Under the hood you get 1280Wh, a 100A BMS, four cells, 40 milliohms of internal resistance and a Group 24 footprint at 6.49 by 10.24 by 8.98 inches and 21.6 pounds. The 84 percent five-star share puts it among the best-liked lithium units in this group.
Charging options are spelled out, which we appreciate. It accepts a 14.4 to 14.6V LiFePO4 charger, an MPPT or PWM solar controller set to lithium mode, or a generator feeding a lithium or DC-DC charger. That third option matters for people who still own a gas generator for emergency heating.
The forum consensus supports the requirement rather than arguing with it. A caravanersforum owner described a lithium drop-in as workable in place of an AGM because it states it can be charged by a normal AGM charger, while flagging cost as the sticking point. Either way, the controller profile has to match the chemistry.
Any install where the pack sits unheated. A cold-climate cabin, a snow-bound seasonal property or a van parked outside through winter all benefit from a cutoff that stops charging before lithium plating can start.
Drop-in Group 24 dimensions with M8 terminals mean no box modification and no cable changes, which keeps the swap from a standard AGM to this pack simple.
It is an energy storage battery and cannot be used for engine starting or cranking. Treat it as a house bank, not a starter battery.
Nothing is included in the package beyond the battery, and a lithium-profile charger is a requirement rather than an optional refinement.
LiFePO4
12.8V 200Ah
2560Wh
58.9 lbs
200A BMS
4S4P expansion
Cycle-life figures at depth of discharge are what set this one apart. The stated cycle figures are 4000 cycles at 100 percent DoD, 6000 at 80 percent, and up to 15000 at 60 percent. Read them with care, because a stated cycle count is always tied to a specific depth of discharge.
Capacity is 2560Wh in 58.9 pounds at 20.08 by 8.07 by 8.46 inches, with a built-in 200A BMS handling overcharging, overdischarging, overcurrent, overheating and short circuit plus automatic high and low temperature cut-off.
The 87 percent five-star share is the most polarized-positive rating distribution in this roundup, and the reason is usually expansion. Four batteries reach a 48V 200Ah bank, or 12V 800Ah at about 10.24kWh usable, so a starter system can grow into a whole-home array on the same chemistry.
That same flexibility is a sizing trap, though. A 20.08-inch case is long, and the review record shows buyers who measured their compartment after ordering. The six-month cycle reminder is also a real requirement for long-term cell health.
Intermediate loads. A 200Ah pack covers a decent-sized cabin or a workshop without jumping to a 48V rack unit, and the 200A BMS headroom handles compressor loads that a 100A BMS would find limiting.
If you know a 48V system is where you are headed, buying into this family now avoids a chemistry and mounting change later.
Measure twice. The length is the single most common complaint in the reviews, and a battery tray built around a Group 31 will not take this case.
It is not a starting battery and not a golf cart battery. Pair it with a DC-DC charger if you also want engine charging.
LiFePO4
51.2V 105Ah
5.12kWh
102.5 lbs
100A BMS
UL1973 compliant

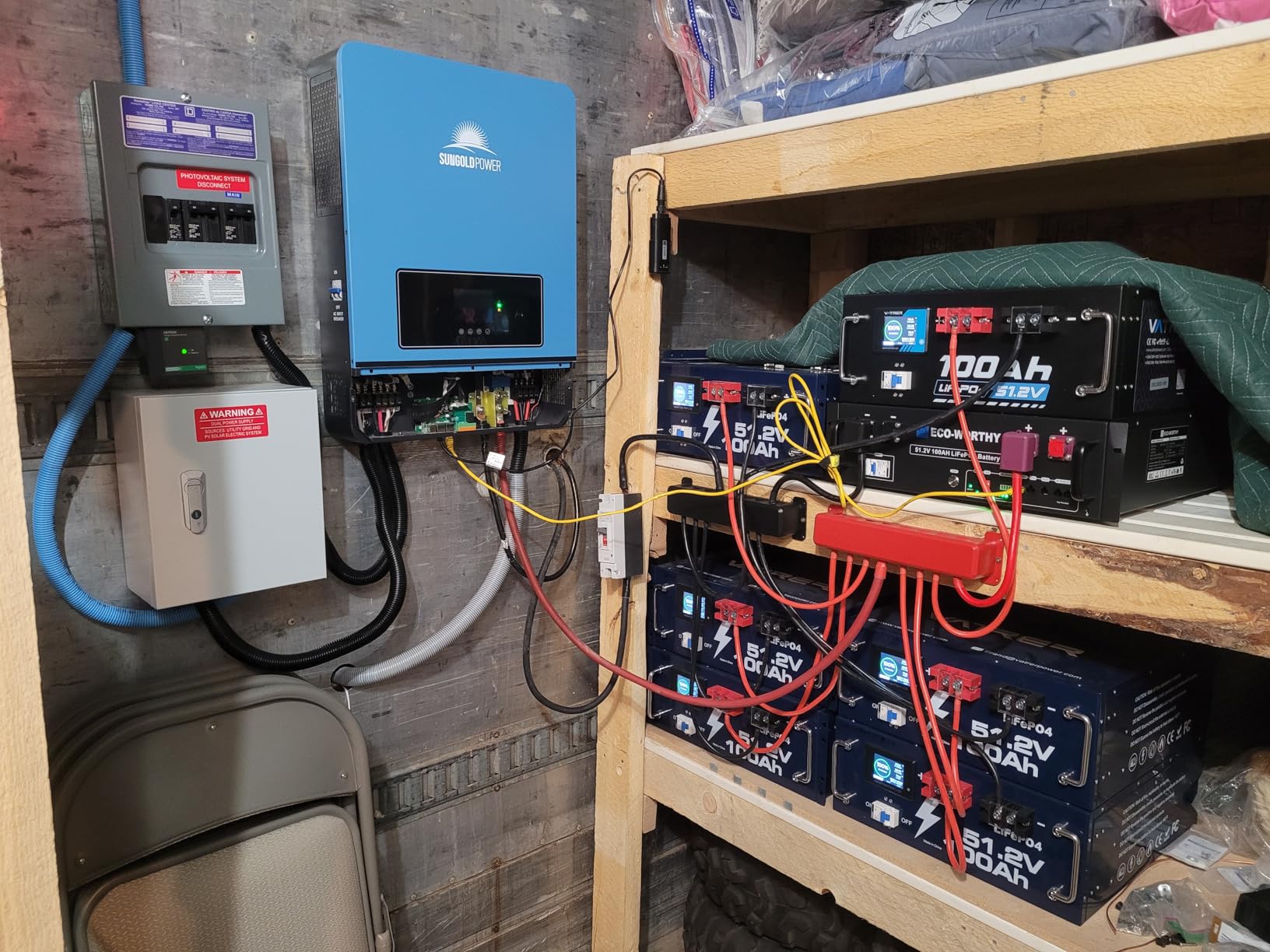

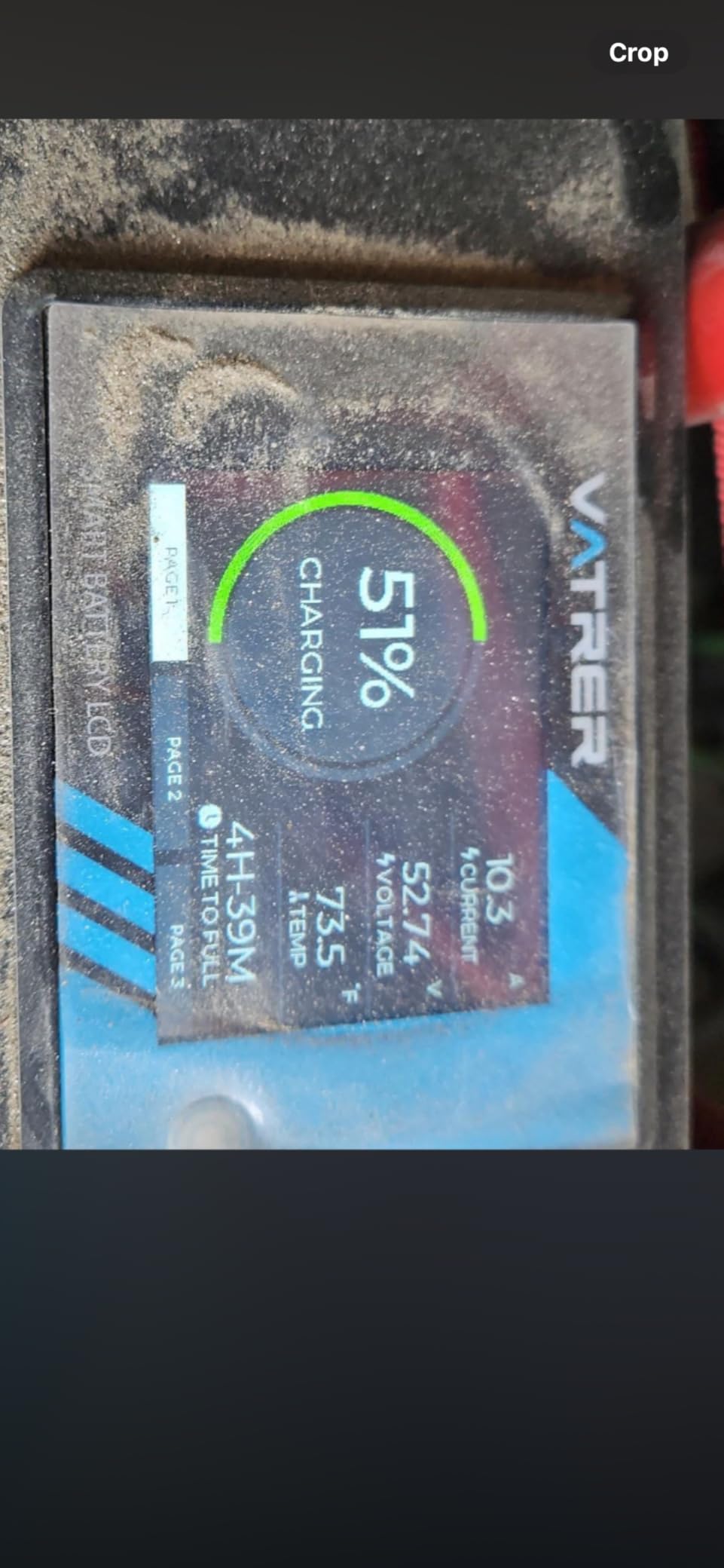

If you are running a genuine off-grid home, one of these replaces a stack. The VATRER POWER 48V unit packs 5.12kWh into a single 51.2V 105Ah case, built from 16S automotive Grade A prismatic cells with a built-in 100A BMS, and it carries the highest average rating in this entire roundup.
At 102.5 pounds it is the heaviest battery we tested, and that is the honest trade. A 48V architecture cuts cable thickness dramatically, which offsets part of the effort of handling it, but this is a two-person lift and needs a properly anchored shelf.
Two installation details are worth planning around. The dual positive and dual negative terminals let you split current across two paths, which equalises flow and reduces heat in a high-current bank. And the one-touch ON/OFF button doubles as a high-load circuit breaker, so you can isolate the pack safely before touching wiring.
Certification is the other differentiator at this voltage. UL1973 compliance and Intertek ETL certification are exactly what permitting authorities and insurance reviewers ask about, and few 12V competitors in this list can answer that question.
At 5000W of inverter capacity, a 48V bank needs roughly 100Ah to deliver it comfortably, versus around 400Ah at 12V. That is four times less current through the same power, and far less heat in the cable runs.
The stated 5000+ cycle life against 300 to 500 for lead acid, at roughly half the weight, is the clearest argument for lithium on a homestead that cycles daily.
Both high and low temperature cut-offs are active, with a high-temperature charging cut-off at 167F. A battery room in a hot climate needs ventilation planning, not just a shelf.
Parallel use requires the earlier version to share the same configuration, so check the revision before stacking. Owners most often cite weight as the practical trade-off.
LiFePO4
12.8V 100Ah
1280Wh
24 lbs
Group 31
2 year warranty
The VEMDIA 12V 100Ah Group 31 packs 1280Wh into a BCI Group 31 footprint at 24 pounds with 120 milliohms of internal resistance, and the box includes insulating caps and M8 terminal bolts.
Charging speed is the practical advantage. Owners report a full charge in about 5 hours on a 14.6V 20A LiFePO4 charger, which is roughly three times faster than lead-acid absorption, and capacity holds steady until depleted rather than dimming progressively.
We flagged this one honestly because the numbers are not the class leaders. The cycle claim here is 15000+ at 60 percent DoD and 8000+ at 80 percent with a 10-year service life, which is a 60 percent depth rating rather than a deeper one, and the average rating of 4.3 carries the widest one-star share of the lithium options at 12 percent.
The 2-year manufacturer warranty is also shorter than the five years several competitors offer, and the automatic low-temperature cut-off blocks charging below 32F. Discharge is rated from -4F to 140F, so it will run in the cold, it just will not accept charge there.
When the alternative is a big AGM bank. At 24 pounds and 1280Wh, the delivered energy per pound argument is hard to argue with, and the Group 31 fit means zero compartment rework.
Expansion to 4S4P takes the same pack to 51.2V and 400Ah, so the budget entry is also a path into a larger system rather than a dead end.
The warranty and the 60 percent cycle rating are the two concessions. If you plan to run this as a daily-cycled primary bank rather than a secondary or weekend bank, our full LiFePO4 comparison has stronger candidates.
Two-year coverage also means budgeting for a replacement inside the life of an off-grid system, which is worth factoring into any cost comparison against AGM.
LiFePO4
12.8V 10Ah each
1.2 kg per pack
2000+ cycles
F2 terminals

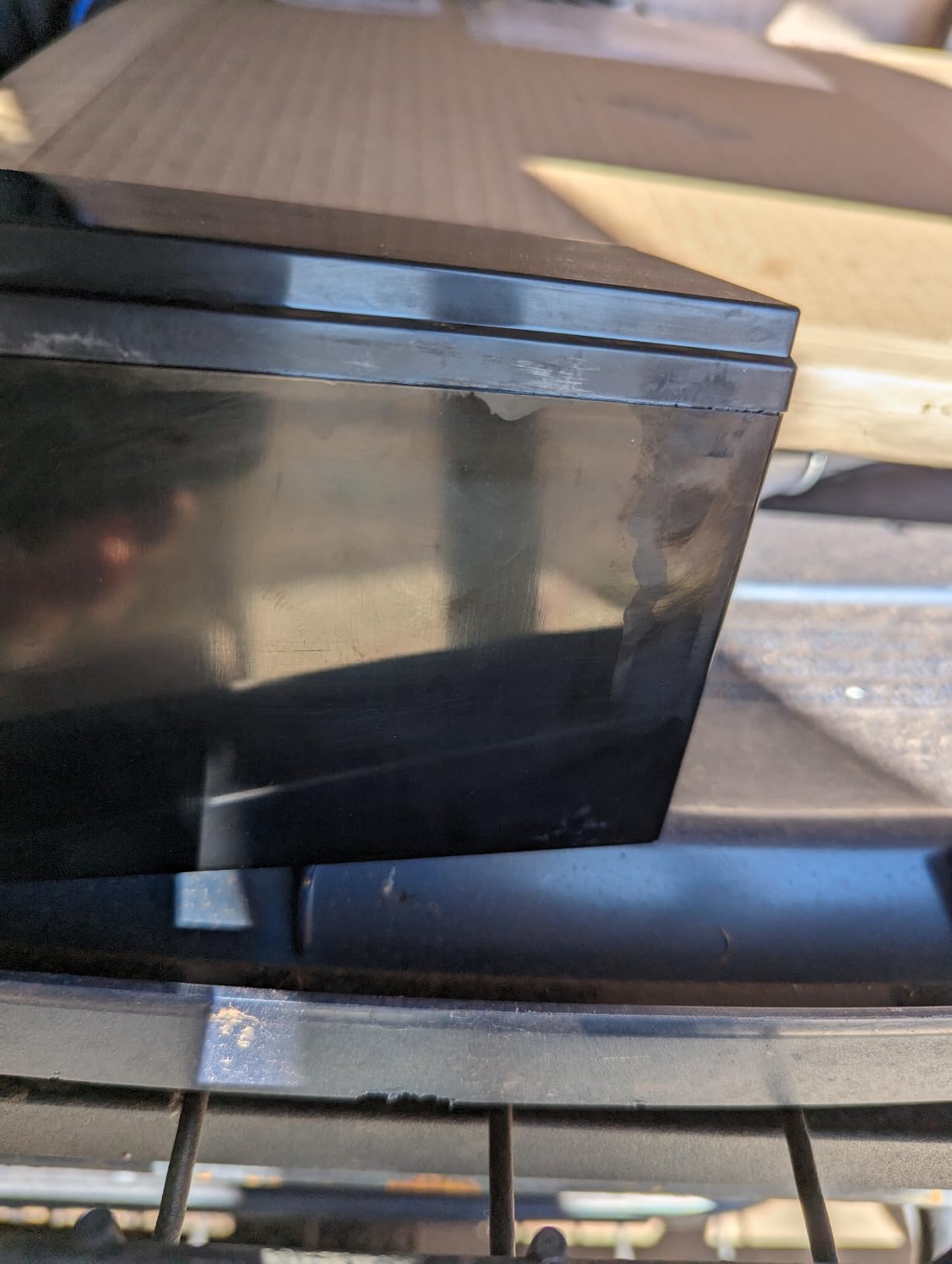

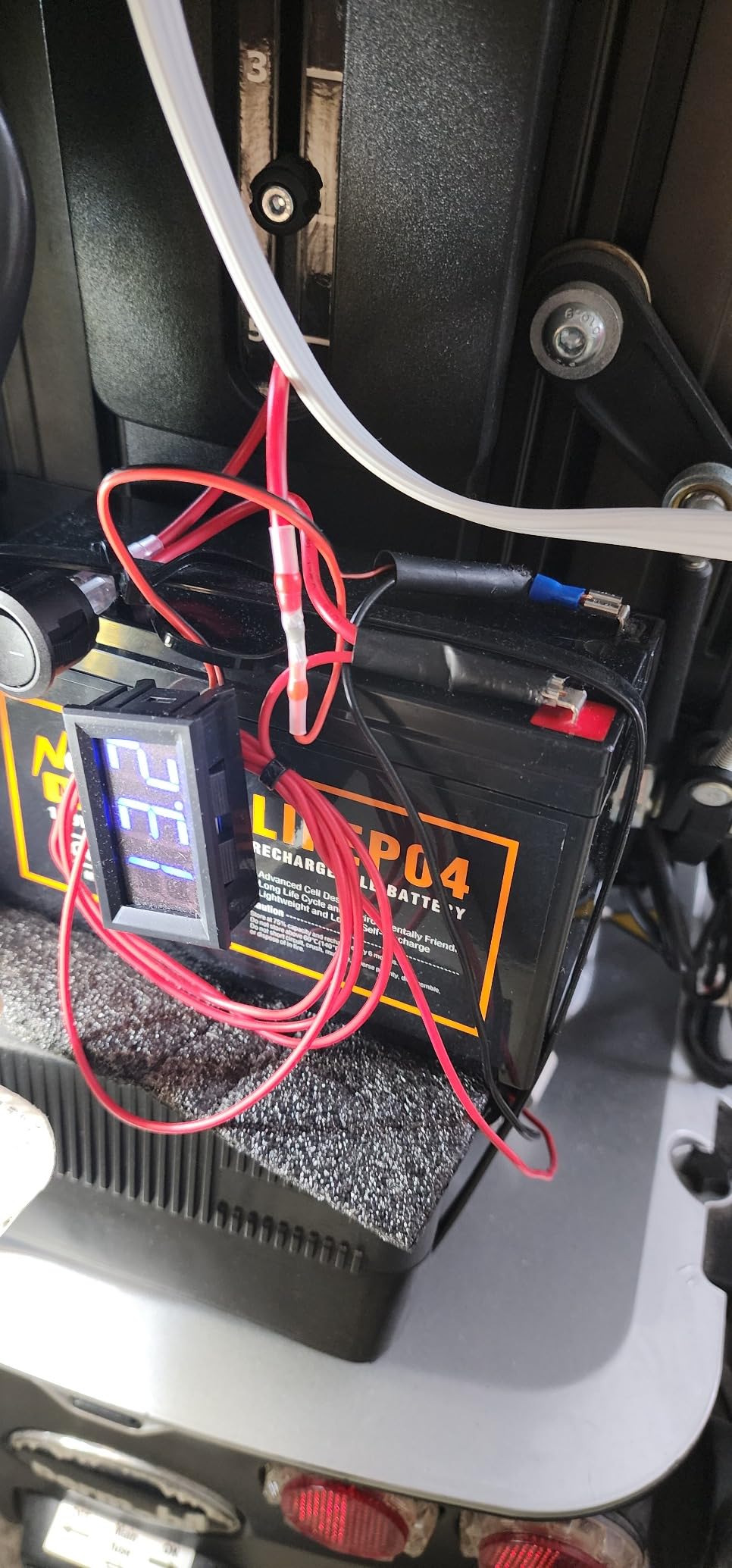

The Nermak two-pack is the lightest lithium in the group and it is honest about what that buys. Each 12.8V 10Ah unit weighs 1.2 kg with the pair, measures 5.94 by 2.56 by 3.91 inches, and uses F2 terminals, so it fits where nothing else on this list will.
Owners in this niche use it for fish finders, LED lighting, 12V routers, ham radio, cellular remote cameras and small UPS backup duty, plus solar and wind trickle charging. At that scale the 2000+ cycle rating and up to one year of maintenance-free storage are genuinely useful.
It is also a legitimate supplementary battery. A Class B forum user running a separate LiFePO power station alongside existing AGMs described it as doubling available energy, which is the hybrid pattern off-grid owners use when they want lithium cycling without replacing a whole lead-acid bank.
Be clear about the limits though. A 10A continuous discharge rating means it cannot start a high-draw appliance, and a fully automatic SLA charger may leave a lithium pack not fully charged, so a LiFePO4-specific charger is the safer choice. The 4.2 average rating and 69 percent five-star share reflect that narrower role.
Auxiliary and standby circuits. Trolling-motor electronics, lighting, networking and instrumentation are exactly the loads that sit on a small bank for years and then get replaced, and a 1.2 kg pack is trivial to mount or swap.
You can series or parallel up to four identical batteries, so 10Ah grows into something meaningful for a cabin lighting load without a different chemistry.
Thirty-three amp-hours in the ExpertPower section already showed the ceiling of small sealed lead-acid. Ten amp-hours of lithium has the same problem in a different form: you will need dozens of them.
The one-year warranty is the shortest here. Treat this as a light-duty or standby pack, and choose a 100Ah unit or larger for anything you live on.
Most solar battery buying guides are quietly answering a different question than the one off-grid owners ask. Grid-tied whole-home backup is a one-to-two-night problem: the grid fails, the battery carries the house until the storm passes, and the deep cycle battery rarely has to do hard work. True off-grid living is a three-to-five-day problem, and that is where battery chemistry, depth of discharge and oversizing all change.
You can go completely off-grid with solar and battery, but only if the bank is sized for consecutive bad days rather than a single night. If a week of overcast weather would leave you at a dead inverter, the issue is storage, not panels.
First, depth of discharge stops being optional. The 50 percent ceiling on lead-acid that iRV2 owners describe as the single most repeated technical fact in forums is the difference between buying one battery and buying two for the same usable energy. On a 48V LiFePO4 bank, that penalty is effectively removed.
Second, weight and physical size stop being trivial. A homestead with four days of autonomy at real household load is looking at a bank heavy enough that the mounting, the floor load and the handling method are design constraints, not logistics.
Continuous output, temperature management and string matching. A three-day off-grid cabin still cannot start a well pump on a 100A BMS, and a four-day bank in a sub-zero winter still needs a charging cutoff to protect the cells.
If your backup need is a single night and your grid is reliable, the lead-acid picks in this roundup are a defensible and cheaper answer. Our deeper deep cycle comparison covers that use case separately.
Four chemistries matter for off-grid storage, and the honest summary is that flooded lead acid and gel belong to older builds while AGM and LiFePO4 cover nearly everything new. The differences that affect you are usable depth of discharge, cycle life, weight and temperature behaviour.
The 50 percent depth-of-discharge rule is the number that reshapes a battery bank. A 100Ah AGM gives you about 50Ah of dependable daily energy, which is why so many off-grid threads describe buying twice the amp-hours for the same usable storage.
Three things, in order of frequency. Sustained deep discharge below roughly 50 percent is the first, because lead-acid chemistry degrades permanently each time it is taken down there. Heat is the second, since a sealed battery in a hot battery room cooks even when it is not being used. Third is leaving it discharged: a bank that sits at low charge through a month of no sun sulfates and will not recover.
Reviewers on the Weize and Renogy units also report cells failing to hold charge after roughly 60 days in some cases, which is the same sulphation problem arriving earlier than expected.
The honest list of downsides. LiFePO4 will not charge below freezing without a low-temperature cutoff, and several units in this roundup enforce that with a hard block rather than a heater. Cost per delivered kWh is higher up front than lead-acid, though the arithmetic changes fast over a decade.
Some models need a full maintenance cycle every six months during extended storage, some arrived out of balance from the factory, and the BMS itself is a component that can fail. Cold-weather charging remains the single most reported failure scenario in the off-grid forums.
Size an off-grid bank by working out your daily load in watt-hours, multiplying by the number of days of autonomy you want, then dividing by your usable depth of discharge and your nominal system voltage. The formula is not complicated, but people skip the days-of-autonomy step and then wonder why the bank feels small in January.
Step one: list every load and its running hours, then multiply power by hours to get watt-hours per day. Step two: choose your days of autonomy, and add one cloudy day to whatever number feels comfortable. Step three: divide by usable depth of discharge, 50 percent for lead-acid and 80 to 90 percent for LiFePO4. Step four: divide amp-hours by system voltage to get the parallel count.
A cabin drawing 2000Wh a day with three days of autonomy needs 6000Wh stored. At 12V that is 500Ah of nominal capacity. With a 12V 100Ah AGM at 50 percent usable you would need ten batteries, which is about 570 pounds of lead-acid. With a 12V 100Ah LiFePO4 at 80 percent usable the same job takes about seven batteries, or a 48V bank built from the 280Ah and 200Ah packs in this roundup.
For a 5000W inverter, a 48V lithium bank sized at roughly 100Ah delivers the current comfortably. The same inverter on 12V needs about 400Ah to stay inside sane cable gauges, which is why whole-home off-grid builds keep moving to 48V.
System voltage is a wiring decision before it is a battery decision. 12V is the mobile default, 24V is a middle step, and 48V is what whole-off-grid homes use because it moves the same power through a quarter of the current.
Cold weather is the second real constraint. Several packs in this roundup block charging below 32F, and the 150Ah LiFePO4 requires operation at 5C or higher, so a winter off-grid home needs either a heated battery compartment or a chemistry with a cutoff you can live with.
Match batteries from the same batch and the same age when you build a series string. Forum users report that mixing brands and ages in a string causes imbalance and early failure, and it is the cheapest mistake to avoid in the whole build.
Terminal torque and corrosion are the other everyday realities of off-grid ownership. A flooded bank in an unheated room needs periodic checks, and even sealed AGM terminals benefit from periodic inspection. Check the self-discharge figures on paper and again after a month of real readings.
LiFePO4 is the best choice for most off-grid homes because you can use 80 to 90 percent of rated capacity instead of the 50 percent lead-acid allows, it weighs roughly half as much, and it tolerates daily deep cycling. Sealed AGM remains the sensible budget choice for a weekend cabin, a small boat or a light van load.
Multiply your daily watt-hour load by your days of autonomy, divide by your usable depth of discharge, then divide by system voltage. A 2000Wh daily load needing three days of autonomy needs 6000Wh stored, which is 500Ah at 12V, or roughly ten 100Ah AGM batteries once you apply the 50 percent lead-acid limit.
Yes, if the bank is sized for consecutive cloudy days rather than a single night. Panels charge the bank through an MPPT controller during the day, the inverter converts stored energy to household power, and you need enough storage plus charge controller capacity to recharge the bank each morning after a worst-case night.
For weight-sensitive mobile use, lithium wins clearly. A 12V 100Ah LiFePO4 Group 24 delivers 1280Wh at about 22 pounds, while a comparable AGM weighs 57 to 64 pounds. AGM still makes sense for a weekend trip on a strict budget where the battery stays indoors and loads are light.
Cold charging is the big one: most units block charging below freezing unless they have a cutoff or self-heating. Other drawbacks include a higher upfront cost per kWh, some models needing a maintenance cycle every six months in storage, packs arriving out of balance, and the BMS being a component that can fail. Weight still matters for the larger 48V units.
Three things dominate. Sustained discharge below roughly 50 percent depth of discharge causes permanent degradation, heat in an enclosed battery room cooks sealed cells, and leaving a bank sitting discharged causes sulfation that does not recover. Reviewers on several units here also report cells failing to hold charge after extended partial discharge.
After working through 12 deep cycle solar batteries built for off grid living, the Weize 12V 100Ah AGM is our editor’s choice for anyone who wants a proven, maintenance-free lead-acid bank without gambling on an unproven lithium brand. Its 16.9k+ ratings, 1100A discharge capability and 1 to 3 percent monthly self-discharge make it the safest starting point, and the 57-pound weight is the trade you accept.
If you are ready to move to lithium, the dumfume 12V 150Ah LiFePO4 is the premium pick, the ECO-WORTHY 280Ah handles genuinely high output, and the VATRER POWER 48V unit is the answer for a homestead that needs multiple days of autonomy in one certified box. For cold regions, check the charging cutoff floor before anything else. For weekend trips and light loads, the AGM picks remain entirely rational.
Start with your days of autonomy, not with a brand name. Size the bank for consecutive cloudy weather, confirm the charging temperature floor matches your climate, and the rest of the decision narrows quickly.
