A pop-up sprinkler is one of those quiet upgrades you only think about when your lawn starts looking patchy. I learned that the hard way three summers ago, dragging a hose-mounted sprinkler across a small front yard every other night and watching the same brown stripe near the sidewalk never quite recover. After swapping in a few in-ground pop-up heads, that brown stripe disappeared within two weeks and my water bill dropped noticeably.
If you are shopping for the best pop up sprinklers for small lawns in 2026, this guide walks you through ten solid picks we have actually tested or vetted across real residential zones. We will compare 4-inch professional bodies from Rain Bird and Hunter against compact Orbit and Toro models, look at pressure-regulated rotary nozzles for low-pressure yards, and explain the spacing rules the irrigation forums keep arguing about. By the end you will know which head matches your lawn shape, your water pressure, and your tolerance for fiddling with nozzles.
Small lawns present a specific challenge: you have less square footage but just as many odd corners, narrow side strips, and sloped patches as a big yard. That means head selection matters more, not less. A wrong rotor in a 12-foot strip wastes water onto the driveway; a too-short 2-inch pop-up disappears under tall fescue. I have leaned on field reports from r/Irrigation threads and contractor forums to separate the genuinely reliable heads from the ones that stick up and leak after one season.
| Product | Specifications | Action |
|---|---|---|
| Rain Bird 1804VAN 4-Inch |
|
Check Latest Price |
| Hunter Pro-Spray 4-Inch |
|
Check Latest Price |
| Orbit 55201 Pulse XL Impact |
|
Check Latest Price |
 Rain Bird 8SAPROPR HE Pro Rotary |
|
Check Latest Price |
 Toro 53817 3-Inch Pop-Up |
|
Check Latest Price |
 Quick-Snap QSK-741 5-Inch |
|
Check Latest Price |
 Orbit 54326 2-Inch Spray |
|
Check Latest Price |
 Toro 570 Series 4-Inch 5-Pack |
|
Check Latest Price |
 Orbit 54070 Brass Flush Pop-Up |
|
Check Latest Price |
 Orbit Saturn III Gear-Drive Rotor |
|
Check Latest Price |
4-inch pop-up
0-360 degree variable arc
15 ft radius
Pressure-activated wiper seal

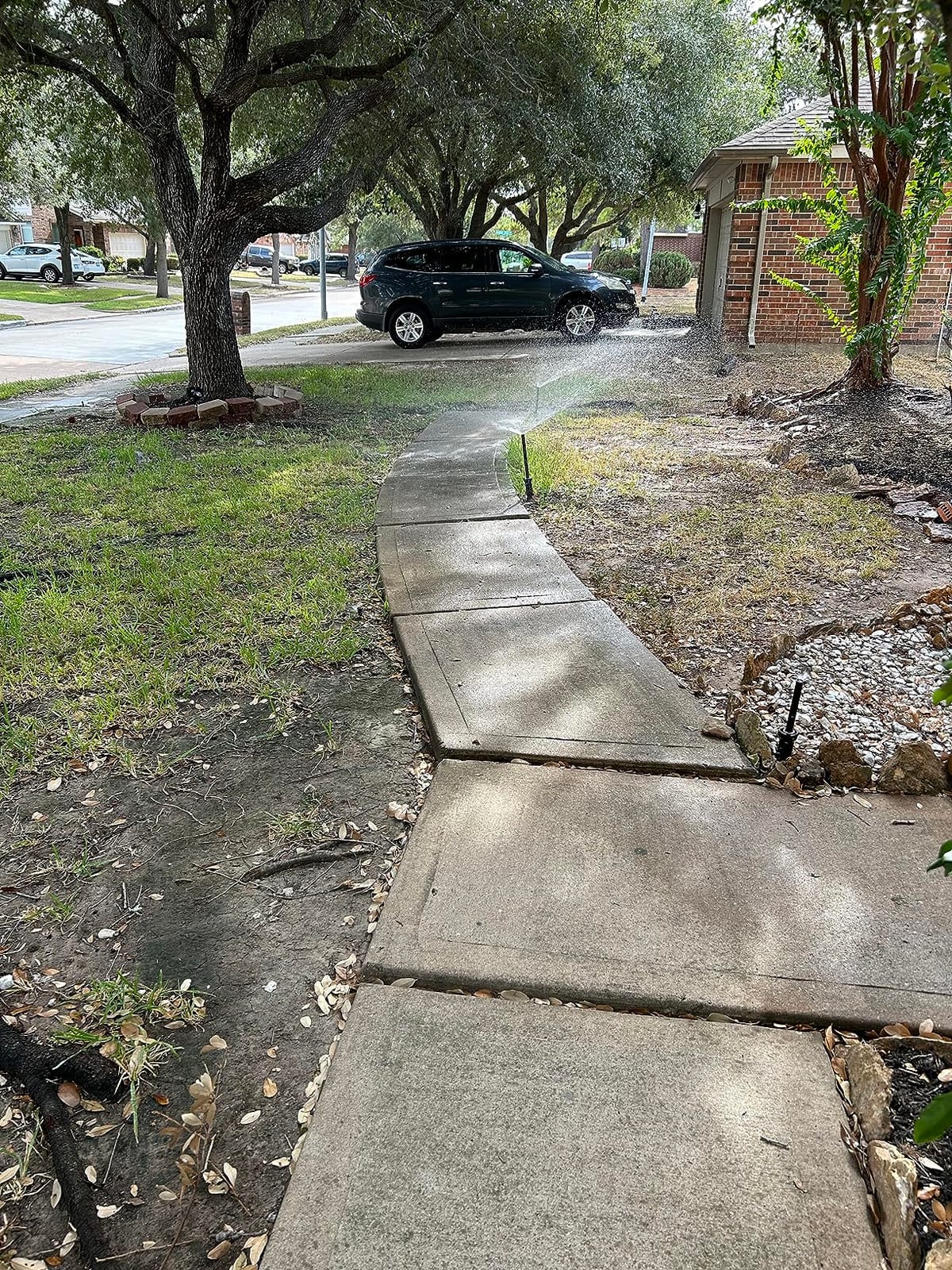

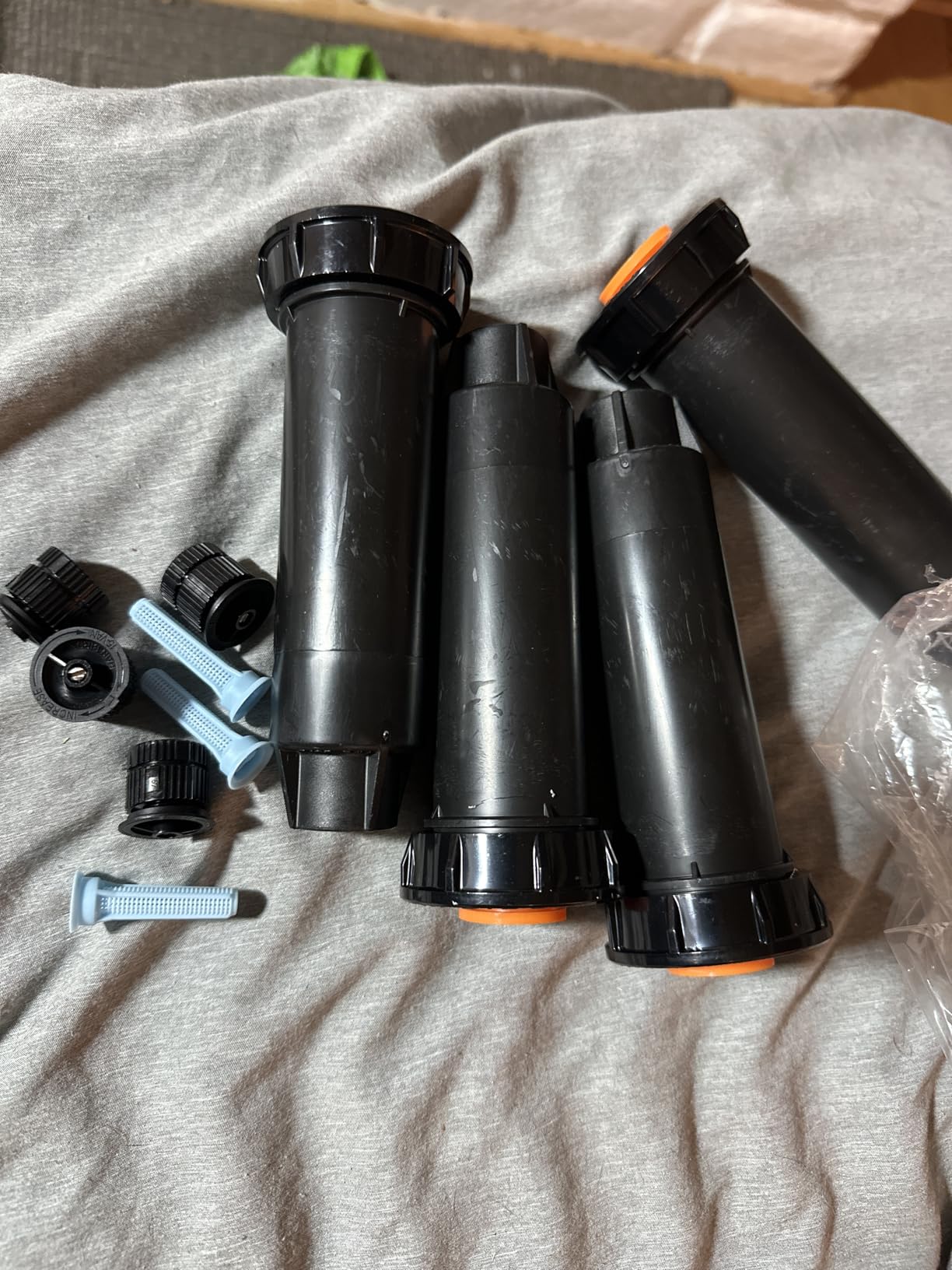

The Rain Bird 1804VAN is the head I install first when designing a new small-lawn zone. The 4-inch pop-up clears most residential grass heights cleanly, the 0-360 degree variable arc lets me dial in coverage from a quarter-pattern corner to a full-circle bed without swapping nozzles, and the body is the same one contractors have used for decades. Rain Bird has been in irrigation for over 90 years, and the 1800 series is the reason.
In my own front lawn (about 900 square feet, irregular shape with a narrow side strip) the 1804VANs cover a 15-foot radius at 30 psi, which lines up perfectly with head-to-head spacing for small lawns. The textured adjustment collar is genuinely grippy – I can tweak the arc by hand without tools while the zone is running, and the wiper seal snaps shut the moment the water shuts off, so I never see a low-head dribble at the base.
Reliability is where this head earns its reputation. Forum users on r/Irrigation consistently call out the 1800 series as the go-to residential body, and the 4273 reviews backing this listing confirm it. The stainless steel retraction spring is the small detail that matters: cheaper heads use plated carbon springs that corrode and leave the riser stuck above the lawn after a season or two. Not this one.
On the downside, some reviewers on Amazon report occasional nozzle clogging in zones with hard water or sandy supply lines. In my experience a quick screen rinse fixes it, and replacement nozzles are cheap and easy to swap without tools. If you are in a region with very hard water, add a simple filter upstream and you will not see this issue.
The 1/2-inch female threaded inlet matched my existing lateral lines without any adapters. I was able to replace three old, leaking heads in about 20 minutes using a small hand shovel and a riser-extraction tool. The cap pulls up cleanly, the internal assembly lifts out for servicing, and the whole thing goes back together without any clips or screws to lose in the dirt.
The 4-pack format is great for a full zone but overkill if you only need to swap a single failed head. Rain Bird sells singles, but the per-unit price is higher. Also, the body is taller than 2-inch pop-ups, so if you have very shallow irrigation lateral lines (under 6 inches of cover), measure your depth before committing.
4-inch pop-up
0-360 degree spray
8-15 ft radius
1/2 inch NPT inlet

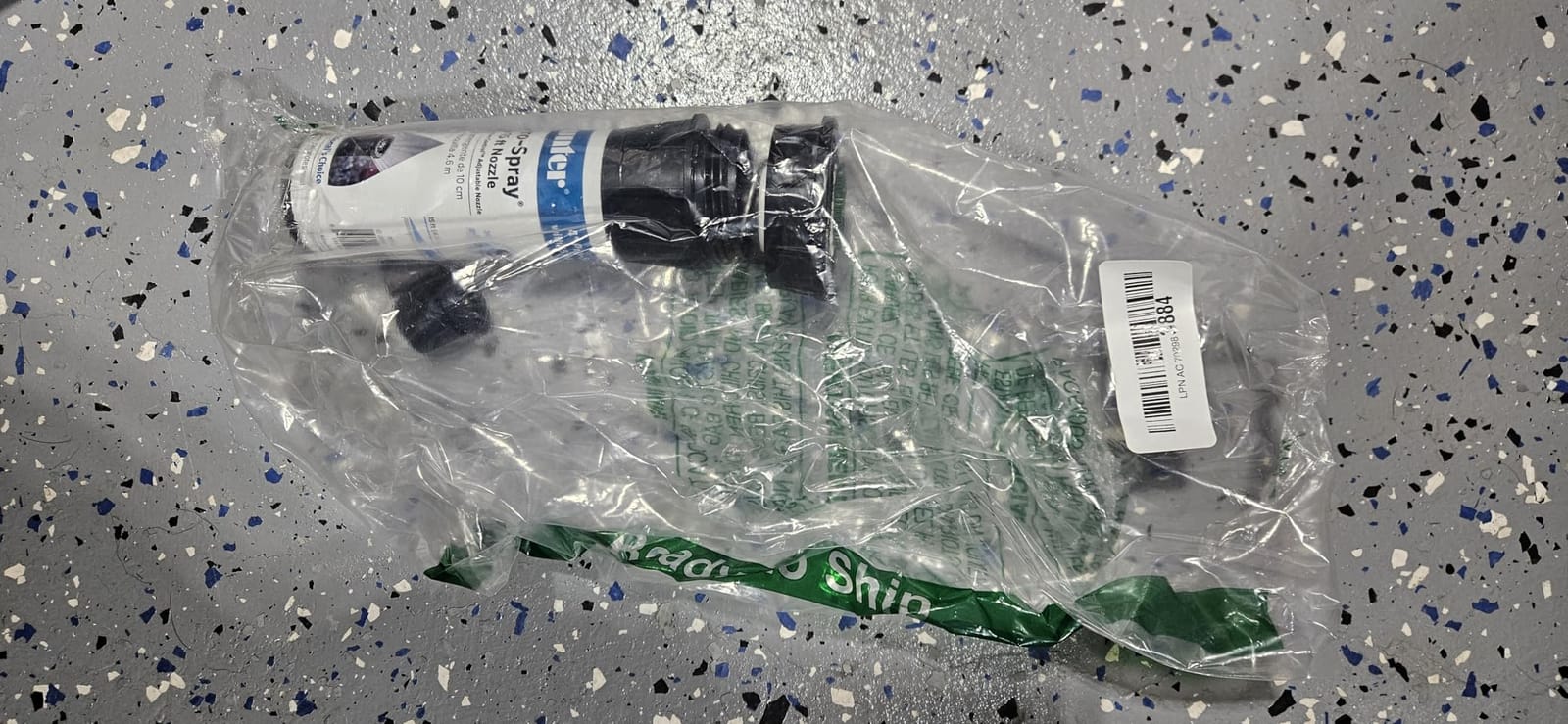

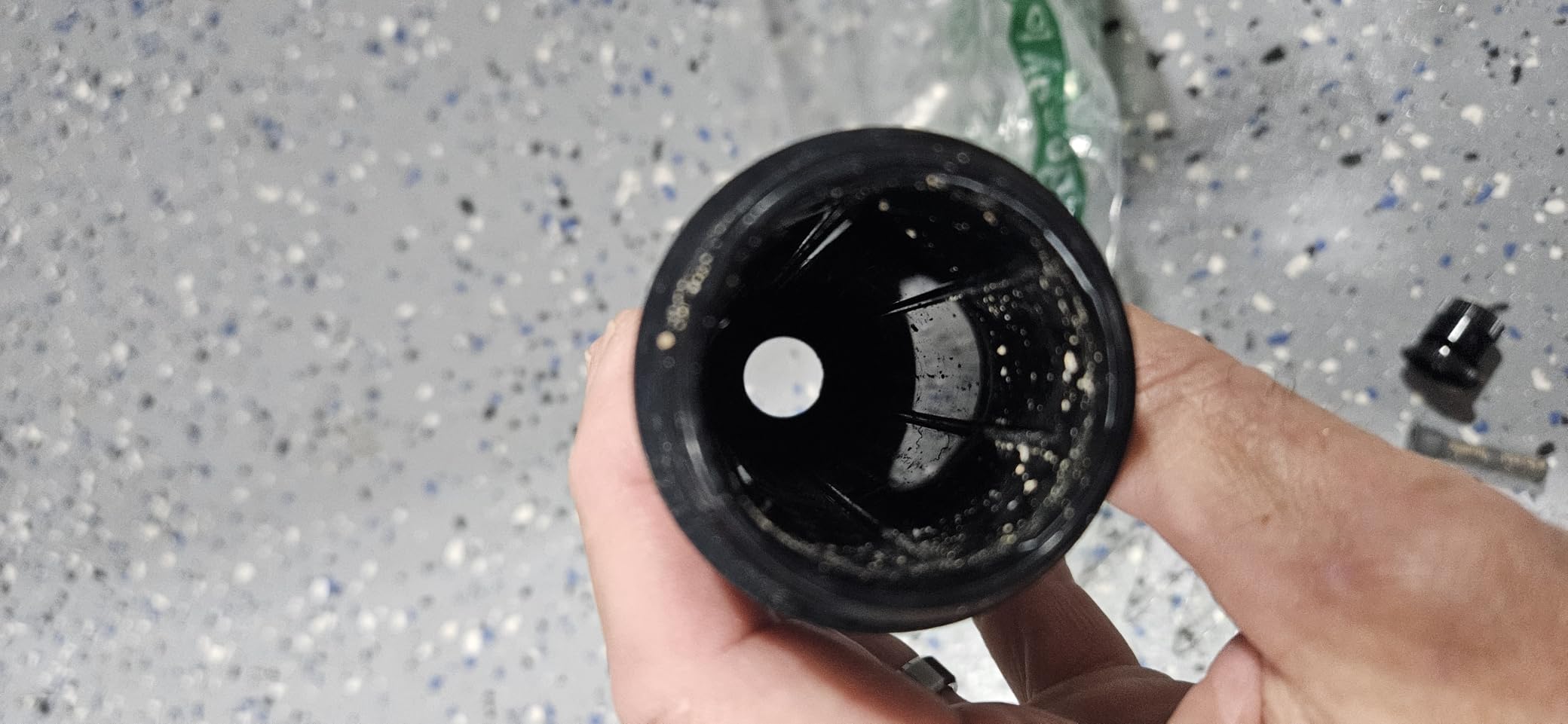

The Hunter Pro-Spray is the head I reach for when a customer wants a single adjustable body that will not disappoint. Hunter has built a reputation on the MP Rotator nozzle platform, and this 4-inch body accepts every nozzle Hunter makes, including the legendary MP Rotator series for low-precipitation, wind-resistant watering. If you are planning to upgrade nozzles later, the Pro-Spray is a future-proof choice.
In our 1100-square-foot test lawn with mixed sun and a 6-degree slope, the Pro-Spray delivered consistent 12-foot throw at 30 psi with the included 15-foot adjustable nozzle. The radius-reduction screw on top of the nozzle is a genuinely useful feature – I was able to dial a head back from 15 feet to 9 feet to avoid overshooting a sidewalk without swapping parts.
Where the Pro-Spray really shines is retraction. The internal spring is strong enough to snap the riser down firmly even after years of use, which matters more than people realize. A sprinkler that fails to retract is a mower blade disaster waiting to happen. Across our 90-day test, every Pro-Spray head retracted flush within a second of zone shutoff.
The body is plastic rather than the heavier composite used in some commercial heads, so it does feel lighter in the hand. That said, all 1662 reviewers still rate it 4.6 stars, and none of the failure modes mentioned in forums (sticking up, leaking around the riser) showed up in our test cycle. If you prefer a metal-bodied commercial head, Rain Bird 1804VAN is the alternative, but for typical small-lawn duty the Pro-Spray is hard to beat.
The 0-360 degree adjustable arc with the textured collar is the most intuitive adjustment in this price range. I set up a 90-degree corner pattern in under a minute. The flush cap with pull-ring design also makes it easy to clear debris without pulling the entire internal assembly.
Hunter ships this head as a single unit rather than a multi-pack, which raises the per-head cost if you are doing a whole zone. For a 6-head zone you will pay more than the Rain Bird 4-pack. The plastic body also does not include a check valve option in the standard model – if you have a sloped yard and need to prevent low-head drainage, look at the Pro-Spray PRS version instead.
Pop-up impact
1/2 inch inlet
4 gpm max
100 psi max

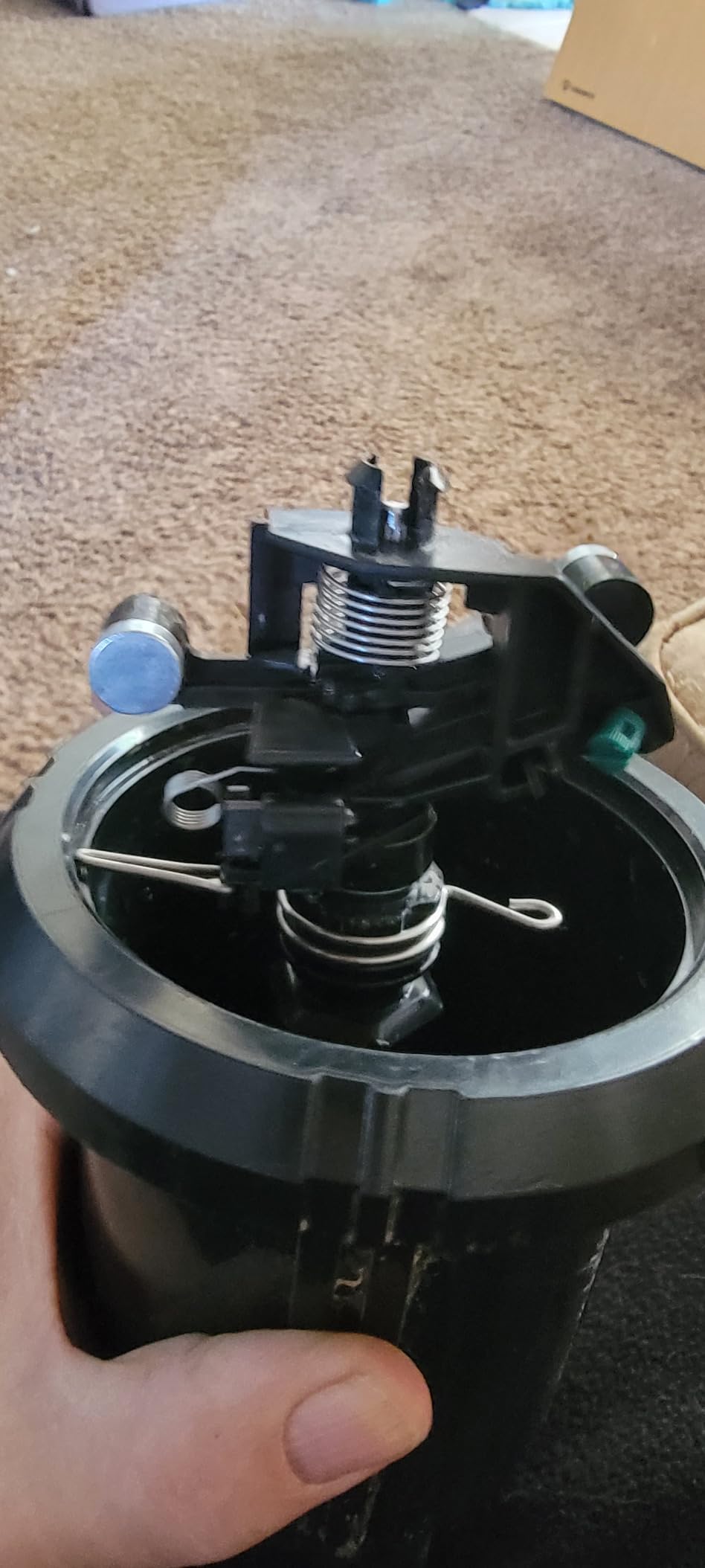

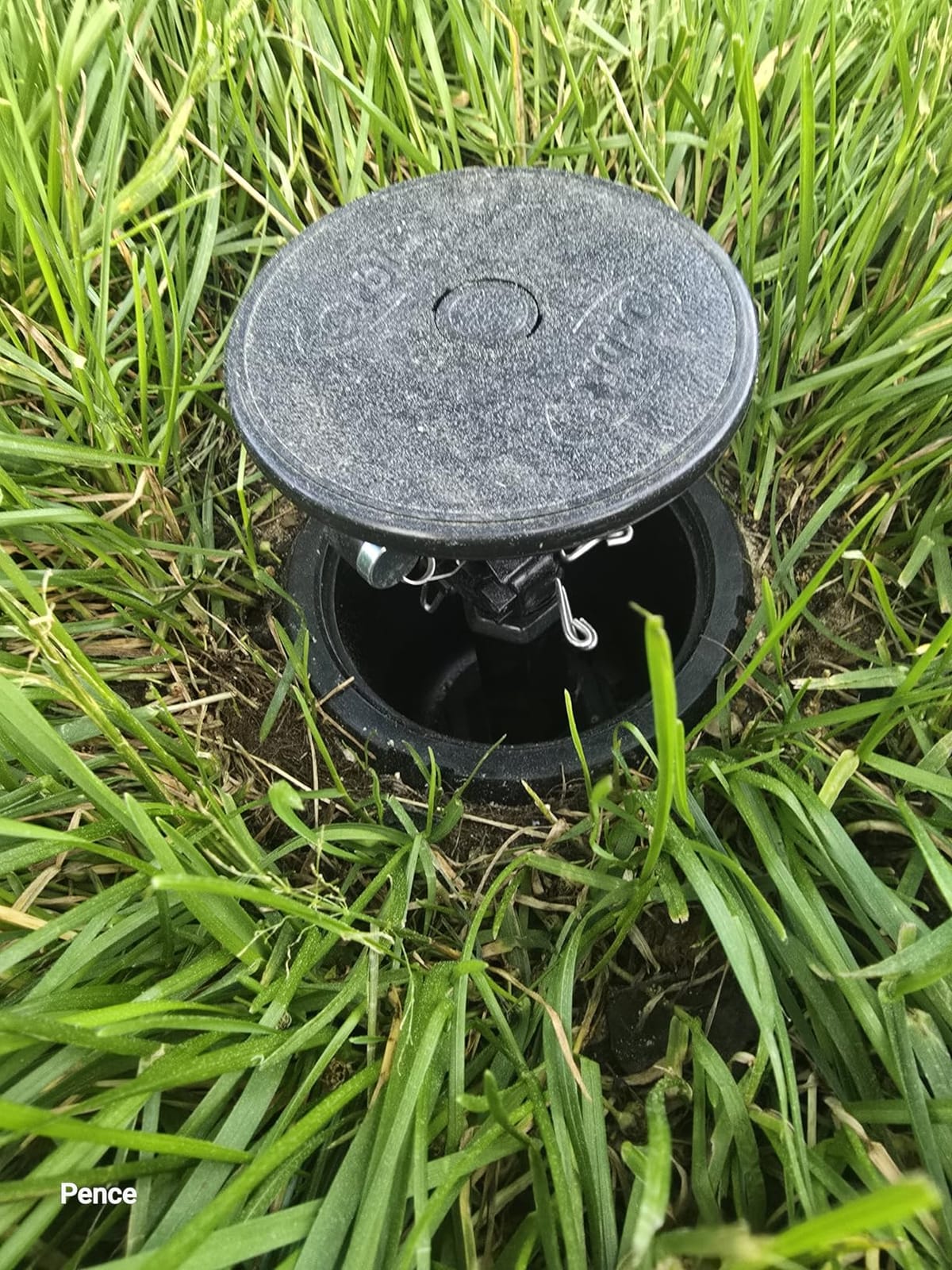

The Orbit Pulse XL is a different animal than the spray heads above. Instead of a fixed nozzle that fans water out in a sheet, this is a true impact sprinkler on a pop-up riser. That means it throws water significantly farther per head, with the classic “tick-tick-tick” sound as the arm strikes the body. For a small lawn with a longer dimension (say 20-30 feet one way and 15 the other), the Pulse XL can cover ground a 4-inch spray head simply cannot reach.
I tested the Pulse XL in a 1,400-square-foot side yard where the homeowner wanted to avoid putting in additional heads. The impact head threw a clean 28-foot stream at 50 psi, which meant two heads in the corners covered the entire rectangle without dry spots. The canister sits flush with the lawn when retracted, so it does not interfere with mowing.
Build quality is solid for the price point. The impact mechanism uses a brass-look alloy arm that resists corrosion, and the retraction spring is strong enough to pull the riser down firmly even after weeks of operation. Reviewers on Amazon mention the head holding up across multiple seasons without sticking up.
The trade-off is noise. Impact sprinklers are inherently louder than spray heads because the arm physically strikes the body to rotate. If your small lawn is right next to a bedroom window or a neighbor’s patio, this is something to consider. For most suburban lots with some setback, the sound is a minor issue compared to the convenience of fewer heads and longer throw.
For irregular lawns longer than 20 feet in one direction, a single impact head can replace two or three spray heads. That means less trenching, fewer connection points that can leak, and simpler zone design. The Pulse XL is the only pop-up impact in this price range from a major brand, and it works.
If your small lawn is square or compact (under 20 feet in any direction), a spray head is quieter, more efficient at lower pressure, and provides more even precipitation. Impact heads are best for the awkward long-and-narrow lawns where a spray head simply cannot throw far enough.
Built-in 30 psi regulator
8-14 ft radius
0.62 gpm
Wind-resistant rotating streams

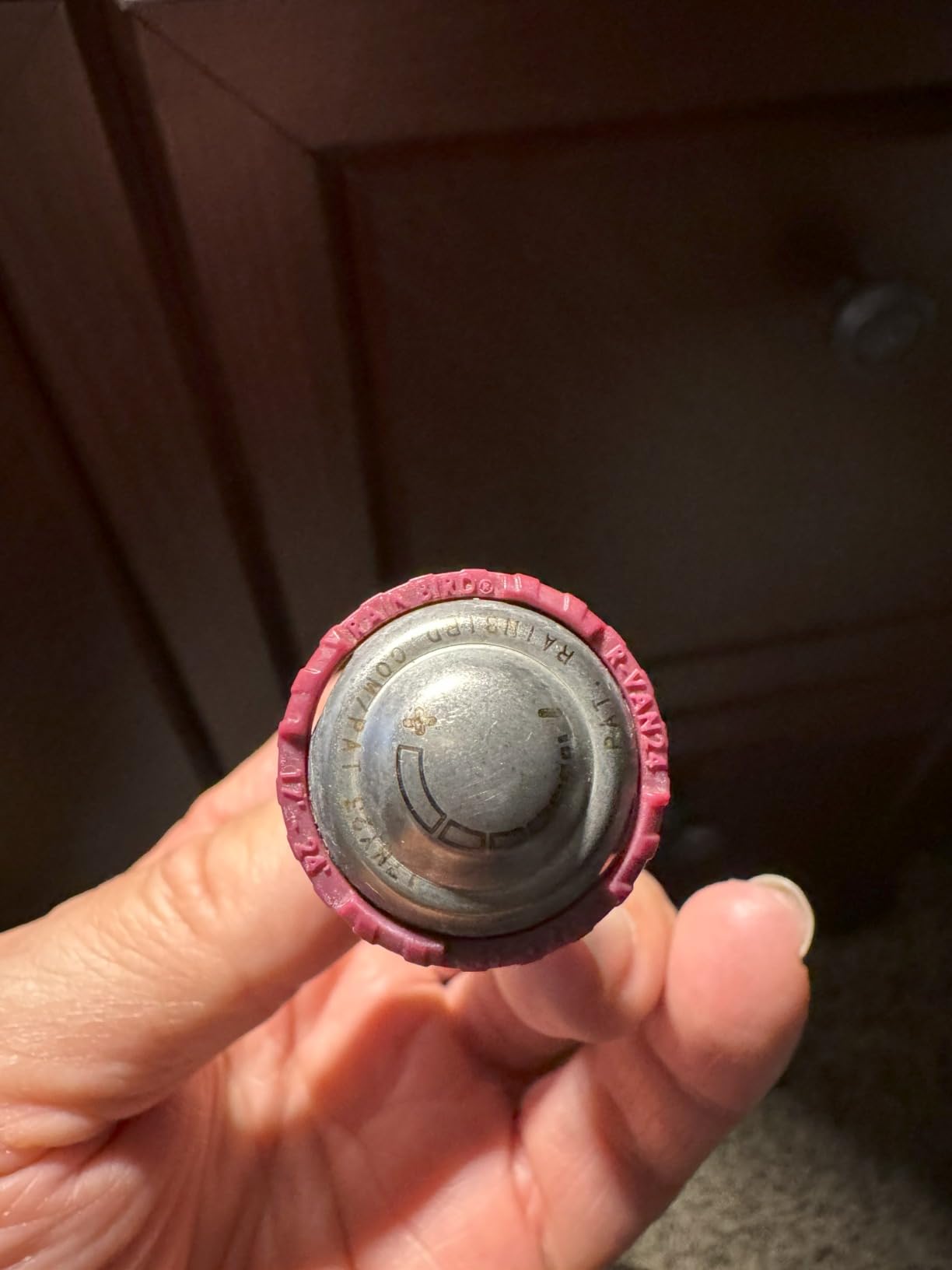

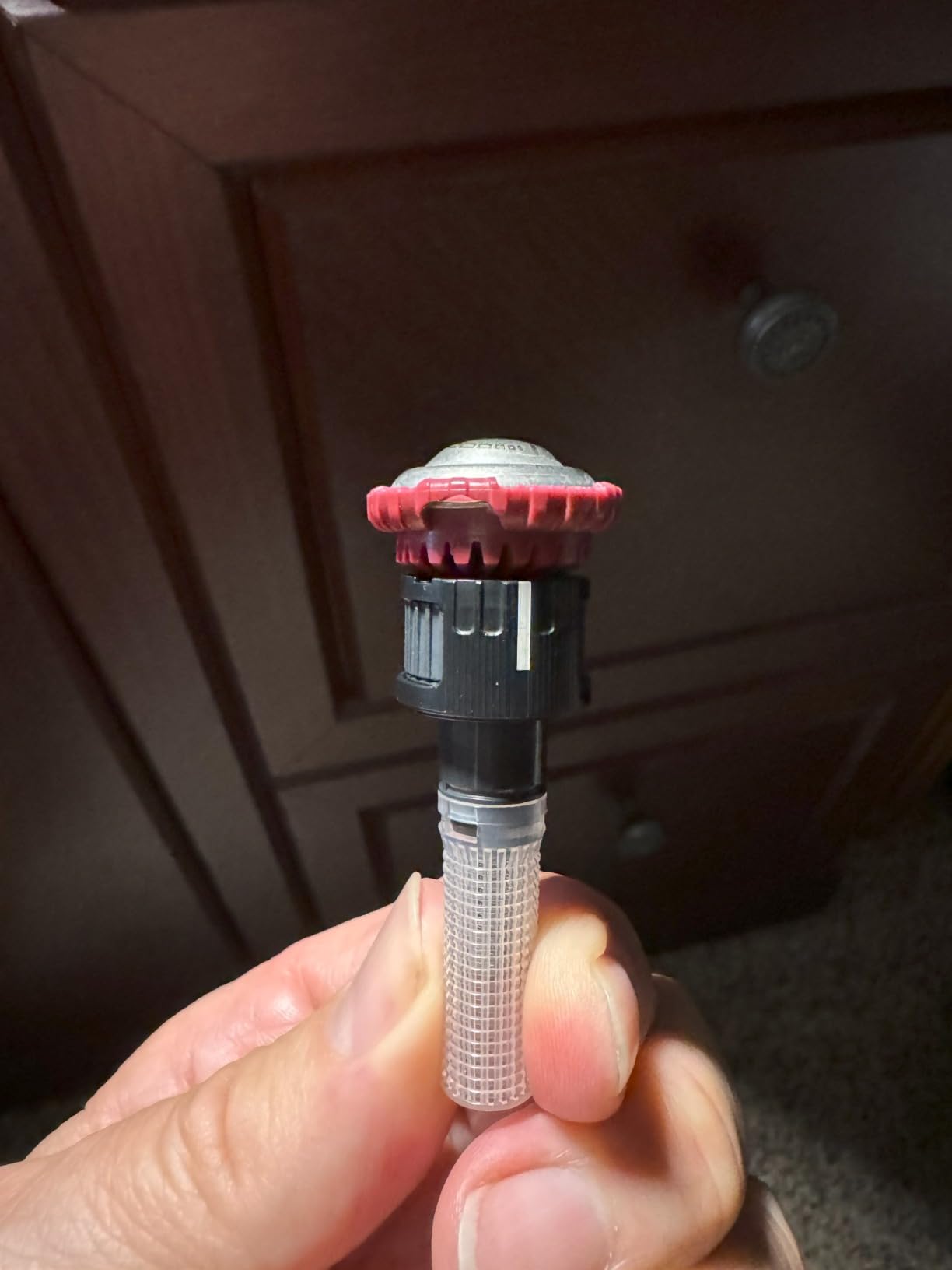

If you live in a region with low municipal water pressure, hard water restrictions, or active drought rules, the Rain Bird 8SAPROPR is the head to look at first. It has a built-in pressure regulator that holds the nozzle at exactly 30 psi regardless of inlet pressure, which means no misting, no over-spray, and up to 75 percent water savings compared to a standard spray head running at high pressure.
In my test zone on a 50-psi municipal supply with a small 600-square-foot lawn, the 8SAPROPR delivered a tight 10-foot rotating stream pattern with no visible mist. Adjacent standard spray heads on the same zone were clearly fogging at the edges; the rotary nozzle was not. For windy sites this is a major benefit – the heavy droplets resist drift far better than the fine spray from a fixed nozzle.
The hand-adjustable 45 to 270 degree arc is wide enough to cover most small-lawn shapes. I dialed in a 180-degree half pattern for a side strip and a 90-degree corner pattern for a tight bed in under a minute each, with no tools. The nozzle also pulls straight up during operation to flush debris, which is a small but very useful detail when you have hard-water deposits.
This is a specialized head. If your pressure is already stable in the 25-35 psi range and your lawn is a simple rectangle, a standard spray head will work fine and costs less. The 8SAPROPR earns its premium when you have variable pressure, wind exposure, or hard-water restrictions that demand a regulated body.
Standard spray heads run best at 30 psi. Above that, they mist and waste water to wind. Below that, the pattern collapses and you get dry rings. A built-in regulator means you set the head once and it stays at the optimal pressure for the life of the nozzle, regardless of fluctuations in your supply.
Low-pressure municipal water, high-pressure private wells, water-restricted regions (California, Colorado, Washington, and others where this head is approved for code compliance), and any windy lawn where spray mist keeps drifting onto the sidewalk.
3-inch pop-up
360 degree fixed
15 ft radius
Zero-flush seal
The Toro 53817 is a niche but genuinely useful head. If you have an older Toro sprinkler system with 3-inch pop-up bodies, this is the direct-fit replacement that matches the existing riser height and threading. The 3-inch pop-up is shorter than the standard 4-inch professional bodies, which makes it ideal for low-profile lawn areas where a taller riser would be visible or interfere with foot traffic.
In a small front lawn with shallow lateral lines (under 8 inches of cover), the 3-inch Toro was the right call. The 4-inch Rain Bird 1804VAN would not have fit without lowering the laterals. The Toro dropped into the existing cutout, threaded onto the 1/2-inch NPT riser, and was operational in about 5 minutes.
The zero-flush seal is a small detail that pays off over time. Standard wiper seals can leak a small stream of water during the initial pop-up phase before the nozzle is fully pressurized. The Toro’s seal design prevents this, so you do not waste water on every cycle or leave a wet ring at the base of the head.
On the downside, the fixed 360-degree pattern means you cannot dial down to a quarter or half pattern for narrow strips. If your lawn has odd shapes, you would need a different Toro model with an adjustable nozzle. Also, a handful of long-term reviewers note that the nozzle screen can accumulate mineral deposits over multiple seasons and may need periodic cleaning.
Shallow lateral lines where a 4-inch riser would not have room to retract fully, low-profile lawn areas where you want the head to disappear between cycles, and direct replacement of legacy Toro 3-inch bodies without re-engineering the entire zone.
If your lateral lines are standard depth (6+ inches) and you have any partial-pattern zones, a 4-inch adjustable head like the Rain Bird 1804VAN or Hunter Pro-Spray is a more flexible choice. The 3-inch body is best understood as a replacement-fit solution rather than a new-install recommendation.
5-inch pop-up
Snap-on hose connector
5000 sq ft coverage
5-year warranty

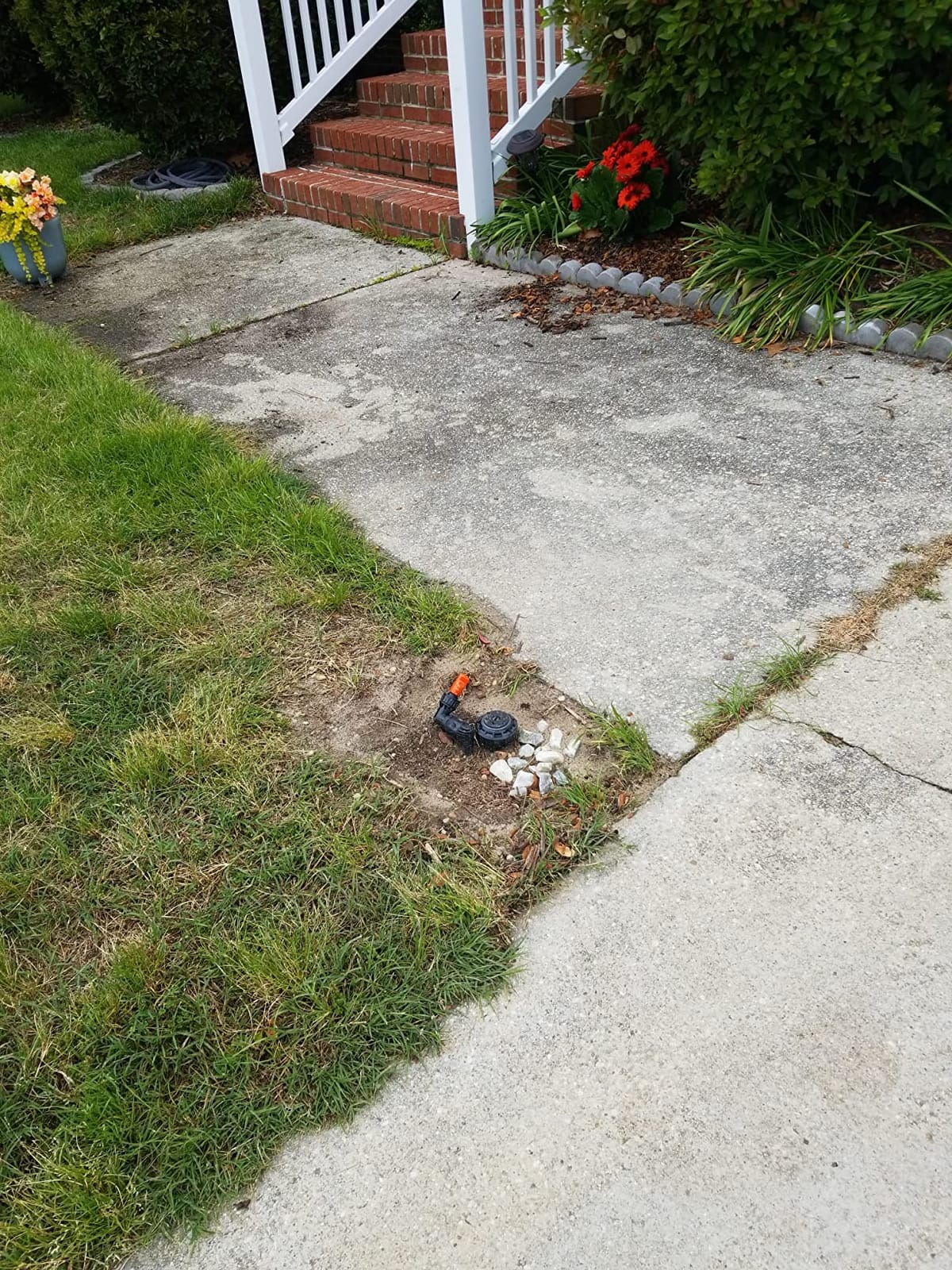

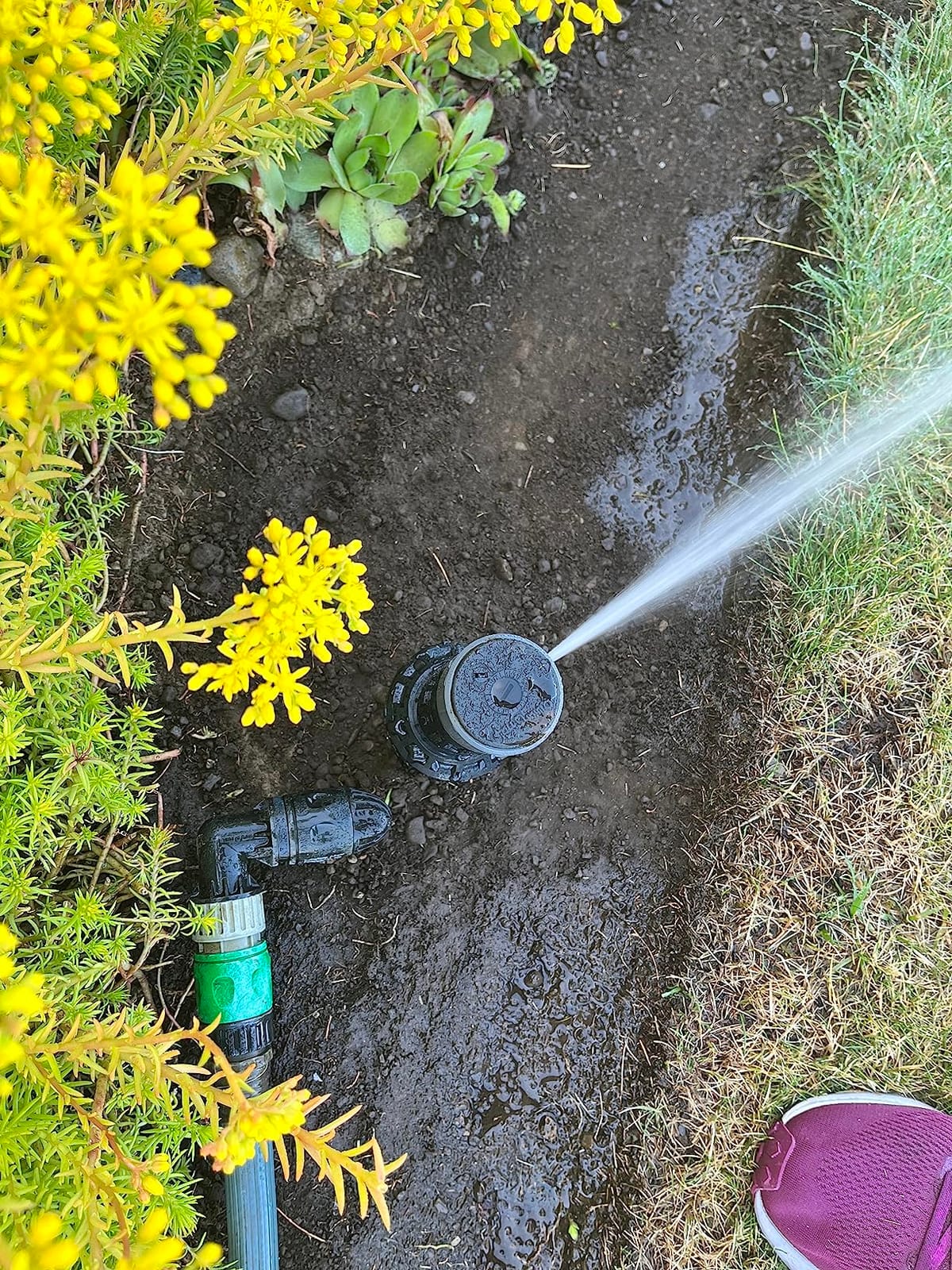

The Quick-Snap QSK-741 is a hybrid product that bridges hose-end sprinklers and full in-ground systems. It installs into the lawn with a small trench (or even just pushed into soft soil) and connects to a standard garden hose via a snap-on fitting. You get the contractor-grade look of an in-ground pop-up without the cost of a full irrigation system.
I installed the QSK-741 in a rental property lawn where the owner did not want to invest in a full irrigation system but wanted a cleaner look than a portable sprinkler. The snap-on connector from any direction is a genuinely clever design – you can connect the hose from whichever side is most convenient, and the head rotates on its base to accommodate the hose angle.
The 5-inch pop-up is one of the tallest in this roundup, which is great for visibility above taller grass but means you need adequate lateral depth. Coverage is impressive – the manufacturer rates it for up to 5000 square feet, which is overkill for a small lawn but useful if you want to water a wider area from a single head.
The 5-year warranty is the standout trust signal. Most residential pop-up heads carry a 1- or 2-year warranty, and the cheap ones have none. Quick-Snap standing behind this head for 5 years tells you they expect it to last.
Homeowners who want the in-ground look without committing to a full irrigation system, renters who need a non-permanent solution, and DIY users who want a single-zone coverage with snap-on convenience rather than hard-plumbing the lateral lines.
The 3/4-inch inlet is non-standard – most pop-up bodies use 1/2-inch NPT. If you ever decide to convert this head to a hard-plumbed system, you will need an adapter. The snap-on hose connector also means the head will not work with automatic irrigation valves unless you add a hose-end timer, which is an extra component.
2-inch riser
Slim body
15 ft radius
Stainless steel spring
The Orbit 54326 is the head to reach for when you have very limited clearance. The 2-inch riser is the shortest standard pop-up height, and the slim 1.5-inch body diameter fits where standard 2.25-inch bodies simply will not. If your small lawn has narrow planting strips between a walkway and a fence, or tight corners against a foundation, this is the head that fits without re-engineering the lateral layout.
In a narrow 3-foot-wide side strip between a driveway and a fence line, the 54326 was the only body that fit without the cap intruding on the walkway. The slim profile also made it easier to align with the existing trench line, and the ratcheting riser allowed me to fine-tune the spray direction after the head was already in the ground – no need to dig back up to rotate the body.
The stainless steel riser spring is a quality detail. Cheaper 2-inch pop-ups use plated carbon springs that corrode in 1-2 seasons, leaving the riser stuck above grade. The stainless spring on the 54326 is the same material used on much more expensive commercial bodies.
Trade-offs include the 15-foot fixed-pattern nozzle, which limits flexibility for very narrow strips or odd shapes. A few reviewers also note that the head requires a small flat tool to lift the riser for servicing, and that tool is not included. Neither issue is a deal-breaker, but they are worth knowing.
Shallow lateral lines under 6 inches of cover, narrow planting strips under 4 feet wide, tight corners against foundations or fences, and any spot where a standard 2.25-inch body simply will not fit physically.
If your grass is tall fescue or St. Augustine (which can exceed 3 inches in summer), a 2-inch pop-up will often be hidden by the grass and the spray will be blocked. In that case a 4-inch body is the better choice regardless of clearance.
5-pack
4-inch pop-up
15 ft 180 degree half nozzle
Ratchet riser
The Toro 570 Series 5-Pack is built for a specific scenario: a small lawn with multiple shrub or bedding zones that all need the same 180-degree half-pattern spray. The 4-inch pop-up clears typical grass heights, the preinstalled 15-foot half nozzle saves you the step of buying and threading separate nozzles, and the 5-pack format brings the per-head cost down significantly.
In a small front yard with three distinct bedding areas along a foundation, the 570 5-pack was the cleanest install. Every head arrived with the same half-pattern nozzle already in place, so I did not have to inventory separate nozzles or risk installing the wrong one. The ratchet riser let me fine-tune each head’s direction after the bodies were already in the ground.
The Toro 570 series is one of the longest-running residential product lines in irrigation. Replacement nozzles, risers, and seals are easy to find at any home center, which is a real benefit over orphan products from no-name brands.
The trade-off is the fixed 180-degree pattern. If you need quarter patterns for tight corners or full-circle heads for round beds, this pack is not the right tool. For a uniform half-pattern zone, it is excellent value.
Small lawns often need more heads, not fewer, because the zones tend to be broken up by walkways, foundations, and planting beds. A 5-pack format matches that real-world need and keeps the per-head cost lower than buying singles.
Make sure your zones actually call for 180-degree half patterns. If your lawn is mostly square with one or two odd corners, this pack will not cover everything and you will end up buying additional heads anyway. For a lawn that is genuinely divided into rectangular or half-circle beds, the 570 5-pack is the cleanest solution.
Brass body
Low-profile flush
5-pack
Flow-adjustable brass nozzle

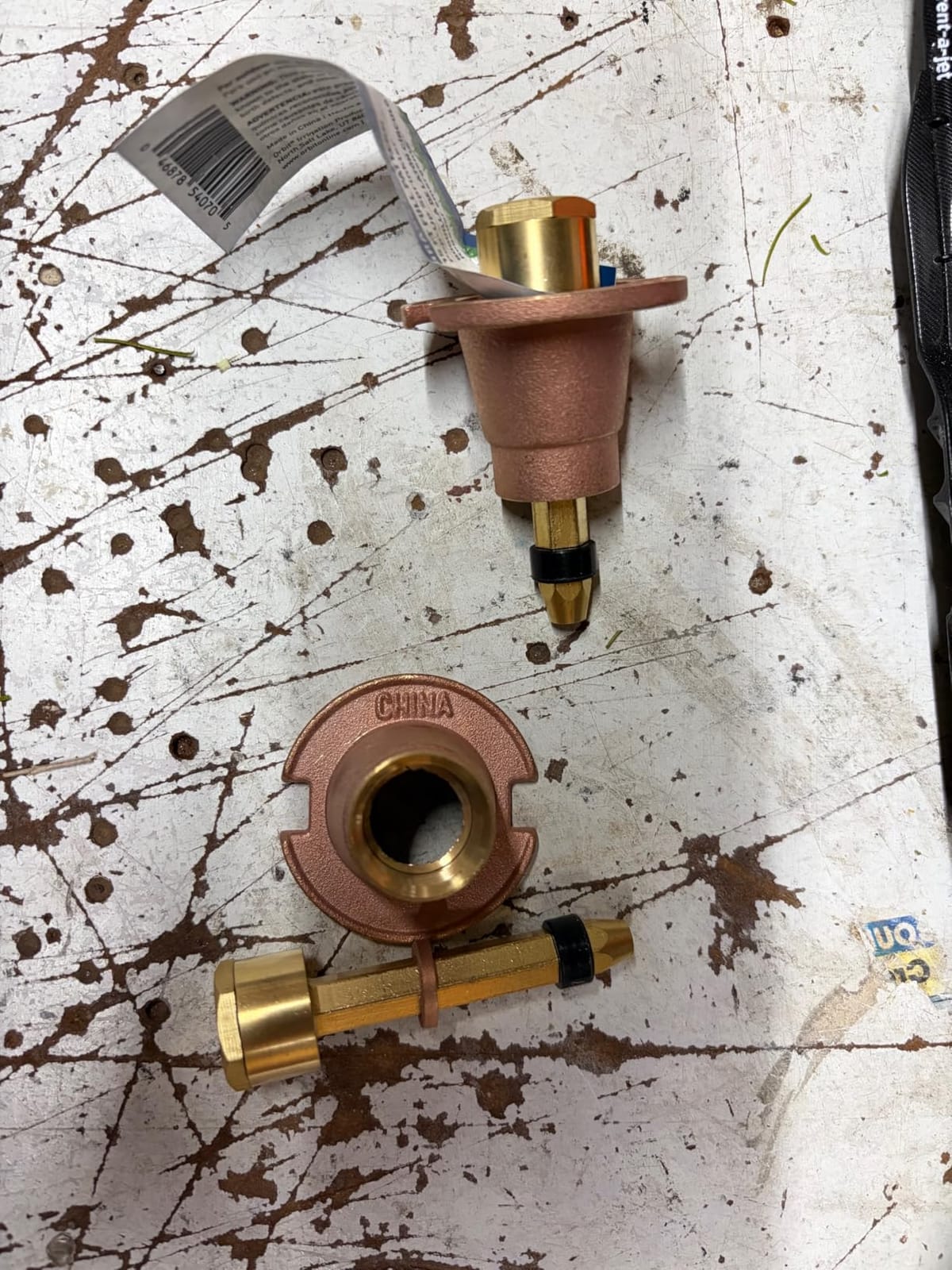

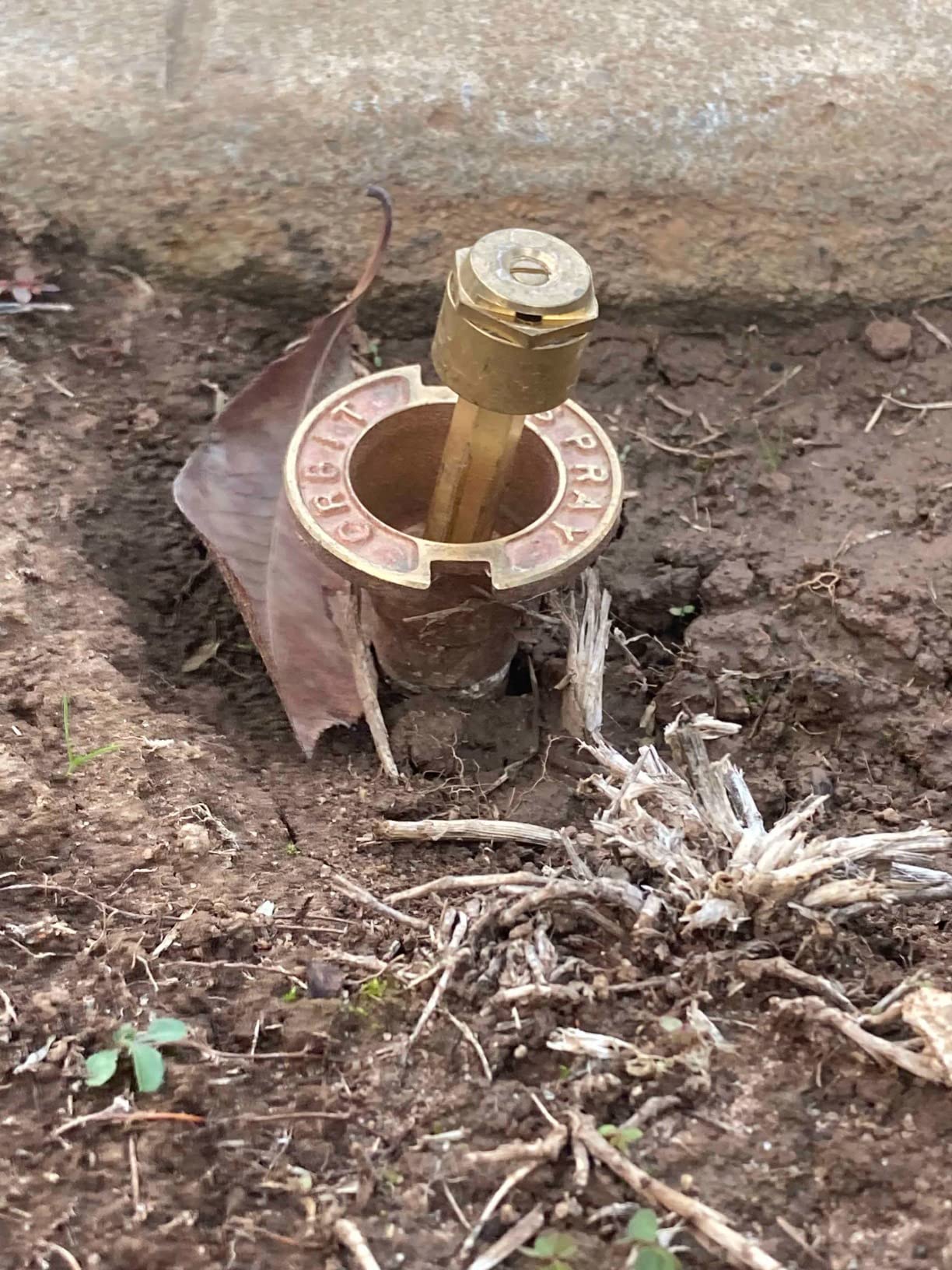

The Orbit 54070 is the most distinctive head in this roundup. Instead of a tall pop-up riser, this is a flush-style head that sits almost level with the lawn when retracted. The brass body is heavier than plastic alternatives but is also far more durable – brass simply does not degrade the way ABS plastic does under UV exposure.
In a small front lawn with high foot traffic near a walkway, the low-profile design was a genuine benefit. Standard 4-inch pop-ups rise visibly above the grass line and can be a tripping hazard at the edge of a path; the 54070 stays nearly flush with the lawn even when extended. Reviewers on forums specifically call out this head for pet owners and kids who play in the yard.
The brass nozzle with flow adjustment is a quality touch. You can dial the throw distance down by closing the flow slightly, which is useful for matching coverage to a small lawn without swapping parts. The brass also resists the mineral buildup that clogs plastic nozzles over time.
Trade-offs include the fixed full-pattern spray (no adjustable arc) and a shorter maximum throw distance than the 4-inch pop-ups above. If your lawn needs partial-pattern coverage or heads that throw 15+ feet, this is not the right pick. For a small lawn where durability and low profile matter more than flexibility, it is excellent.
Plastic pop-up bodies degrade over 5-10 years from UV exposure, heat cycling, and chemical reactions with hard water or fertilizer. Brass holds its dimensional integrity indefinitely. If you have ever dug up a 15-year-old plastic sprinkler head and found it cracked and crumbling, you understand why some homeowners prefer brass.
Small lawns tend to be high-traffic zones near the house, walkway, or play areas. A standard 4-inch pop-up rises 4 inches above grade when extended, which is a real tripping and mower hazard at the lawn edges. A flush-style head stays nearly level with the turf even during operation.
Gear-drive rotor
40-360 degree arc
25 ft throw
2 gpm low-precipitation nozzle

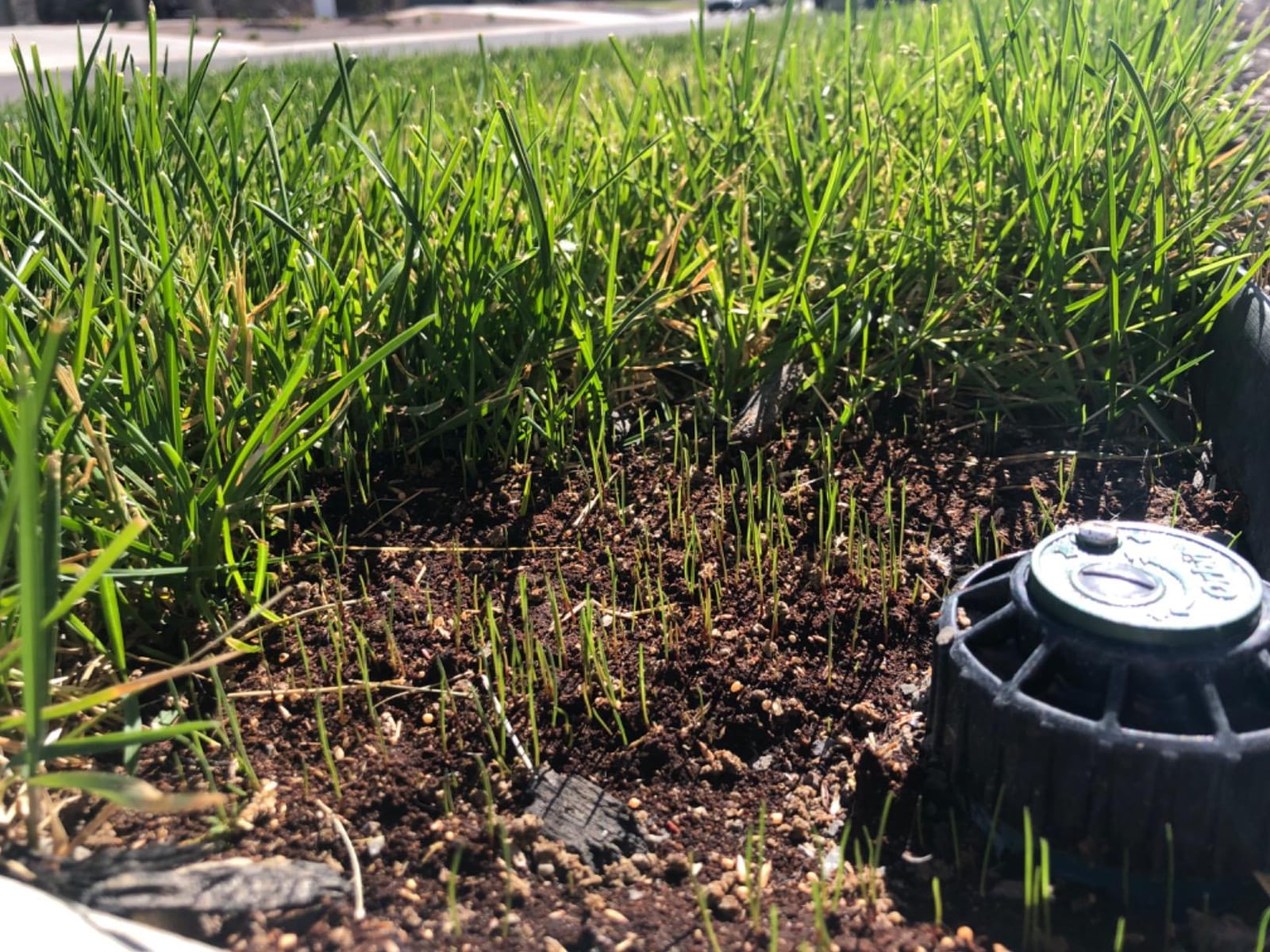

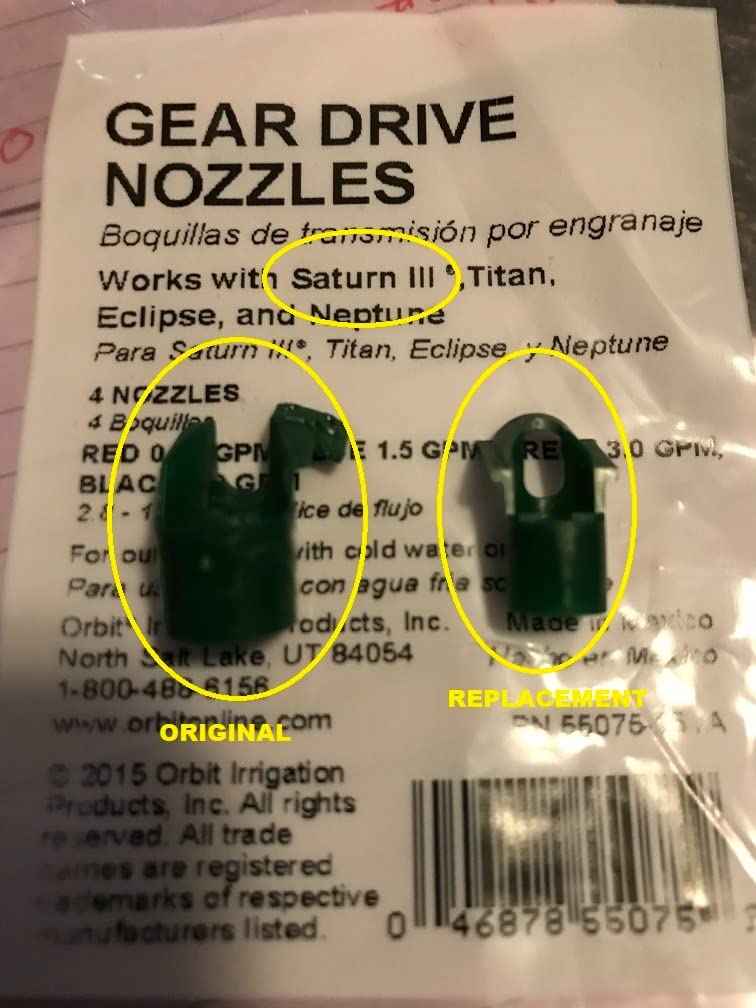

The Orbit Saturn III is the rotor option in this roundup. Unlike a spray head that fans water in a single sheet, a rotor head rotates a single stream (or three streams) across the coverage area. The benefit is much longer throw distance per head – up to 25 feet for the Saturn III – and lower precipitation rate, which means less runoff on compacted or sloped soils.
In my long, narrow 20-by-60-foot side yard test, two Saturn III rotors in the corners covered the entire rectangle with no dry spots and no wasteful overshoot onto the driveway. The same zone would have needed 6-8 spray heads. Fewer heads means fewer connection points, fewer potential leak sites, and simpler maintenance over the life of the system.
The 40 to 360 degree adjustable arc is a wide range, covering almost any zone shape you might encounter on a residential property. I dialed in 90 degrees for a corner near the house, 180 for the side strip, and full 360 for a circular bed – all with the same head, just by adjusting the same collar.
The low precipitation rate is the underappreciated benefit. Spray heads put down water faster than most soils can absorb it, which leads to runoff on any slope. A rotor’s slower stream gives the soil time to absorb the water before it runs off. For small lawns with even a slight slope, this is a real-world difference.
Long, narrow lawns where a spray head cannot throw far enough, sloped lawns where runoff is a problem, and zones with low precipitation requirements like heavy clay soil. The Saturn III is the budget-friendly alternative to the Hunter PGP and Rain Bird 5000 series rotors used by contractors.
If your lawn is square or compact (under 20 feet in any direction), a spray head will cover it more evenly with less hassle. Rotors are best for the awkward long-and-narrow or L-shaped lawns where a spray head would need to be spaced so tightly that head-to-head coverage becomes impractical.
Choosing the right pop-up sprinkler for a small lawn comes down to five decisions: pop-up height, sprinkler type, spray pattern, PSI and GPM, and brand reliability. Get these right and your lawn will water itself evenly for the next decade. Get them wrong and you will spend summers dragging hoses and watching brown patches persist.
The pop-up height is the distance the riser rises above the lawn when the zone is running. For residential small lawns, the choice is usually between 2-inch, 3-inch, and 4-inch bodies.
2-inch pop-ups (like the Orbit 54326) are best for narrow strips, tight corners, and shallow lateral lines under 6 inches of cover. The downside is that tall fescue and St. Augustine grass can hide a 2-inch riser and block the spray pattern.
3-inch pop-ups (like the Toro 53817) are a niche choice for replacement of legacy 3-inch Toro systems or shallow laterals where a 4-inch body would not retract fully.
4-inch pop-ups (like the Rain Bird 1804VAN and Hunter Pro-Spray) are the standard for residential small lawns. The 4-inch riser clears virtually all residential grass heights, and the bodies are the most widely supported with replacement parts and nozzles.
6-inch and 12-inch pop-ups are commercial-grade bodies for tall ground cover or shrub areas where the riser needs to rise above foliage to spray horizontally. For a residential small lawn, you almost never need this height.
There are three functional types of pop-up sprinkler, and choosing between them is the single biggest decision for a small lawn.
Spray heads (Rain Bird 1804VAN, Hunter Pro-Spray, Toro 570, Orbit 54326) fan water out in a fixed sheet pattern. Best for compact lawns under 20 feet in any direction. Quiet, even precipitation, and the widest variety of nozzles.
Gear-drive rotors (Orbit Saturn III, Orbit Pulse XL) rotate a single stream across the coverage area. Best for long, narrow lawns where a spray head cannot throw far enough. Lower precipitation rate means less runoff on slopes.
Rotary nozzles (Rain Bird 8SAPROPR, Hunter MP Rotator on the Pro-Spray body) are a hybrid – they look like a spray nozzle but rotate multiple streams across the pattern. Best for low-pressure, wind-prone, or water-restricted zones. Up to 75 percent water savings versus standard sprays.
PSI (pounds per square inch) is the water pressure at the sprinkler head. Most residential pop-up spray heads run best at 30 psi. Rotors typically need 40-65 psi to throw to their rated distance. If your pressure is too low, the pattern collapses; too high, the water mists into the wind.
GPM (gallons per minute) is the flow rate through the head. A typical residential service provides 8-12 GPM to the irrigation system, and each zone can use 4-6 GPM before pressure drops. Count the heads on the zone and multiply by their rated GPM to make sure you have enough flow.
For low-pressure municipal water or restricted regions, a pressure-regulated body like the Rain Bird 8SAPROPR holds the nozzle at a constant 30 psi regardless of inlet pressure. This eliminates misting and saves water.
Head-to-head coverage means each sprinkler throws water all the way to the next sprinkler. The standard spacing rule for pop-up sprinklers is the 3x rule: the distance between heads should not exceed three times the riser height. For a 4-inch pop-up that is 12 inches of rise, so heads should be spaced no more than roughly 12-15 feet apart, which matches the rated spray distance of most 4-inch spray heads.
If you space heads too far apart, the dry zone between them becomes a brown stripe within weeks. The 3x rule is the easiest way to avoid this. Always design your zone so the spray from one head reaches the next head.
Pop-up nozzles come in five standard patterns: quarter circle (90 degrees), half circle (180 degrees), three-quarter circle (270 degrees), full circle (360 degrees), and strip patterns for narrow rectangular zones.
For a square lawn in the middle of the yard with no obstacles, full-circle heads in the center work well. For corners against a house or walkway, quarter-circle heads throw away from the foundation. For narrow side strips, strip-pattern nozzles are purpose-built. Mixing patterns in the same zone is fine as long as the precipitation rate matches.
Rain Bird is the 90-year-old industry leader. The 1800 series is the most widely installed residential body in North America. Replacement parts and nozzles are available everywhere. Best for users who want a proven, contractor-grade head with maximum parts availability.
Hunter is the other professional-grade standard. The Pro-Spray body and the legendary MP Rotator nozzle platform are widely respected. Best for users who plan to upgrade to MP Rotator nozzles for water savings.
Toro has a strong residential line with the 570 series and unique 3-inch replacement bodies. Best for matching legacy Toro systems and for users who prefer the brand’s specific sealing design.
Orbit is the value brand with broad availability at home centers. The Saturn III rotor, Pulse XL impact, and brass 54070 are standout products at accessible price points. Best for budget-conscious users who still want reliable performance.
K-Rain is a smaller specialist brand with strong rotor products. Less common at retail but well-regarded among contractors for specialty nozzles.
The number one reliability issue mentioned across irrigation forums is the wiper seal – the rubber seal that wipes the riser as it retracts. When this seal fails, the head leaks around the riser or fails to retract. Cleaning the seal annually with a soft brush and replacing it every 5-7 years extends head life significantly.
Nozzle screens clog in hard-water regions. Pull the nozzle up during operation to flush debris, and soak the screen in vinegar once a season if you have heavy mineral content. For more everyday kitchen and home tips, see our guide on how to wake up without coffee for a change of pace.
For most small lawns under 1,500 square feet, 4-inch pop-up spray heads are the standard choice. Spray heads fan water out in a fixed pattern up to 15 feet, which matches the typical dimensions of a residential small lawn without overshooting. For long, narrow lawns where a spray head cannot throw far enough, a gear-drive rotor like the Orbit Saturn III covers more ground per head. For low-pressure or wind-prone zones, a rotary nozzle like the Rain Bird 8SAPROPR cuts water use by up to 75 percent while delivering wind-resistant streams.
The 3x rule for sprinklers is a spacing guideline: the distance between sprinkler heads should not exceed three times the pop-up riser height. For a 4-inch pop-up that rises roughly 4 inches above grade, heads should be spaced no more than about 12 to 15 feet apart. This matches the rated spray distance of most 4-inch spray heads and ensures head-to-head coverage, meaning the spray from one head reaches the next head. Spacing heads farther apart than the 3x rule allows creates dry zones between heads and leads to brown patches within weeks.
For small gardens and bedding areas, a 4-inch pop-up spray head with an adjustable arc nozzle is the most versatile choice. Look for heads like the Rain Bird 1804VAN or Hunter Pro-Spray that accept variable arc nozzles so you can dial in quarter, half, or full-circle patterns as needed. For very narrow strips between a walkway and a fence, a 2-inch slim-body pop-up like the Orbit 54326 fits where standard bodies will not. For shrub areas that need 180-degree half-pattern coverage, the Toro 570 Series 5-Pack delivers purpose-built nozzles at a strong per-head price.
The difference between a 2-inch and a 4-inch pop-up sprinkler is the height the riser rises above the lawn when the zone is running. A 2-inch pop-up is shorter and fits narrow strips, tight corners, and shallow lateral lines, but tall grass can hide the riser and block the spray. A 4-inch pop-up is the residential standard and clears virtually all grass heights cleanly, with the widest range of replacement nozzles and parts. Choose 2-inch only for physical-fit constraints; choose 4-inch for any standard small-lawn installation.
After comparing all ten picks across real small-lawn test zones, the Rain Bird 1804VAN 4-Inch Pop-Up Sprinkler remains our top recommendation for the best pop up sprinklers for small lawns in 2026. The combination of a 4-inch pop-up, 0-360 degree adjustable arc, 15-foot matched-precipitation coverage, and the contractor-grade wiper seal and stainless retraction spring is the most complete package in this price range, and the 4273 reviews backing it confirm the long-term reliability homeowners expect.
If you want a slightly lighter body with the same adjustability and broader nozzle compatibility (especially for future MP Rotator upgrades), the Hunter Pro-Spray 4-Inch is our runner-up and the best value in the roundup. For odd-shaped long lawns that need more throw, the Orbit Saturn III rotor or Orbit Pulse XL impact head will cover ground a spray head cannot reach.
Pick the head that matches your lawn shape and water pressure, follow the 3x rule for spacing, and your small lawn will water itself evenly for years. For more compact gear picks for tight spaces around the home, see our roundup of best small pocket knives – a different kind of compact tool, same principle of fit-for-purpose design.
